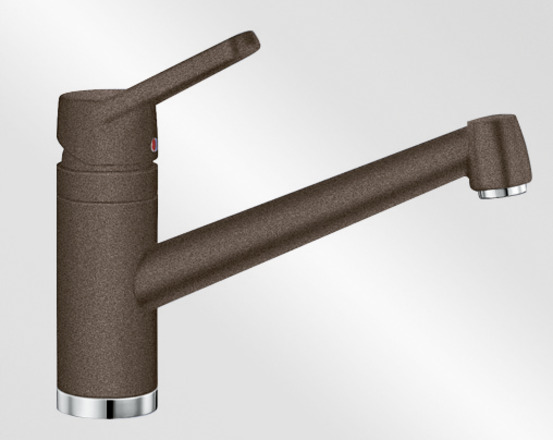

BLANCO ACTIS, brass SILGRANIT-Look, coffee, Low pressure

BLANCO ACTIS, brass SILGRANIT-Look, coffee, Low pressure

                    Article Number
                    514942


no longer available since 08/2009

Article-Version: Article also available in other versions!

BLANCO ACTIS, brass SILGRANIT-Look, alu metallic, Low pressure

Added to Your Shopping Cart

Spare Parts

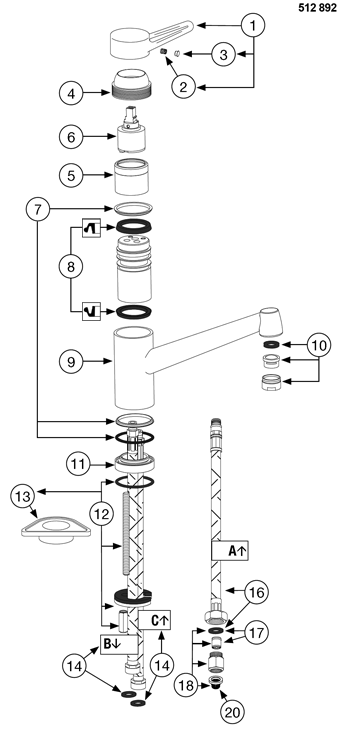

Valid From	Name
Position Number	1	Art. ID	116751	Valid From	10/2007	Name	Lever ACTIS coffee NF, coffee
Position Number	2	Art. ID	139443	Valid From	10/2007	Name	Hex socket screw lever wrench size = 2,5 mm NF
Position Number		Art. ID	139188	Valid From	10/2007	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	139960	Valid From	10/2007	Name	Cap for lever chrome NF
Position Number	4	Art. ID	116753	Valid From	10/2007	Name	Locknut cartridge ACTIS coffee NF
Position Number		Art. ID	139219	Valid From	10/2007	Name	Universal spanner for cartridge cover ring NF
Position Number	5	Art. ID	139893	Valid From	10/2007	Name	Cartridge bush ACTIS brass NF
Position Number	6	Art. ID	121491 (6 / G)	Valid From	10/2007	Name	Cartridge LP 35 mm KE, blue, Low pressure
Position Number		Art. ID	120088 (3 / D)	Valid From	10/2007	Name	Cartridge 35 mm LP KI (replaced by 121491), blue, Low pressure
Position Number		Art. ID	116409 (2 / C)	Valid From	10/2007	Name	Cartridge ND Hydroplast (replaced by 120088), grey, Low pressure
Position Number		Art. ID	116376 (1 / B)	Valid From	10/2007	Name	Cartridge LP (replaced by 116409) KE NF, blue, Low pressure
Position Number		Art. ID	139333 (1 / B)	Valid From	12/2005	Name	Cartridge LP (replaced by 116376), grey, Low pressure
Position Number		Art. ID	128570 (0 / A)	Valid From	10/2007	Name	Cartridge LP ACTIS, ATOS-S, PALLAS NB, black, Low pressure
Position Number	7	Art. ID	139892	Valid From	10/2007	Name	Set teflon rings + O-Ring ACTIS NF
Position Number	8	Art. ID	139891	Valid From	10/2007	Name	V-rings ACTIS (2 pieces) NF
Position Number		Art. ID	117933	Valid From	10/2007	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2007	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	9	Art. ID	116754	Valid From	10/2007	Name	Spout ACTIS coffee NF
Position Number	10	Art. ID	127397	Valid From	10/2007	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	139467	Valid From	10/2007	Name	Jet splitter set LP chrome (replace by 127397) NF, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2007	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	10/2007	Name	Key for jet regulator/-splitter (1 piece)
Position Number	11	Art. ID	139887	Valid From	10/2007	Name	Base ACTIS chrome NF
Position Number	12	Art. ID	139890	Valid From	10/2007	Name	Assembly set NF
Position Number	13	Art. ID	126945	Valid From	10/2007	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	117184	Valid From	10/2007	Name	Stabilising plate (replaced by 126945) NF
Position Number	14	Art. ID	121656	Valid From	10/2007	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	119905	Valid From	01/2011	Name	Flexible hose B with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number		Art. ID	119911	Valid From	01/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number		Art. ID	139337	Valid From	10/2007	Name	Flexible hose (3 pieces) 55 cm metal (replaced by 119905, 119906, 119911 respectively 119913) NF
Position Number	16	Art. ID	119906	Valid From	01/2011	Name	Flexible hose A with seal 45 cm metal 1/2" - M10x1 NF
Position Number	17	Art. ID	119974	Valid From	10/2007	Name	Non-return valve + Inset flow regulator 7L + seal, yellow
Position Number		Art. ID	139470	Valid From	10/2007	Name	Non-return valve/flow regulator combination (replaced by 119974) NF
Position Number	18	Art. ID	119897	Valid From	10/2007	Name	Set flow regulator 7L/minute + housing + siveseal (green) ET 1/2" + IT 3/8" NF, green
Position Number		Art. ID	139339	Valid From	10/2007	Name	Flow regulator + housing 7l ET1/2" + IT 3/8" (replace by 119897) NF
Position Number	20	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	127401	Valid From	10/2007	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	139338	Valid From	10/2007	Name	Seal flexible pipe (2 pieces)
Position Number		Art. ID	513383	Valid From	10/2007	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2007	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2007	Name	Flexible sealing tape
