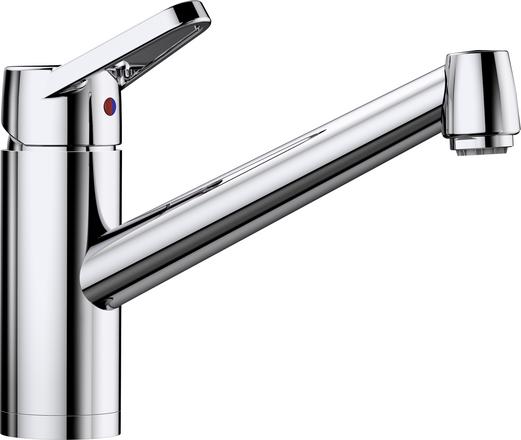

BLANCO ACTIS, brass galvanic, chrome, Low pressure

BLANCO ACTIS, brass galvanic, chrome, Low pressure

                    Article Number
                    512890


no longer available since 03/2019

Article-Version: Article also available in other versions!

BLANCO ACTIS, brass galvanic, stainless steel finish, Low pressure

512894

BLANCO ACTIS, brass galvanic, satin chrome, Low pressure

512892

Added to Your Shopping Cart

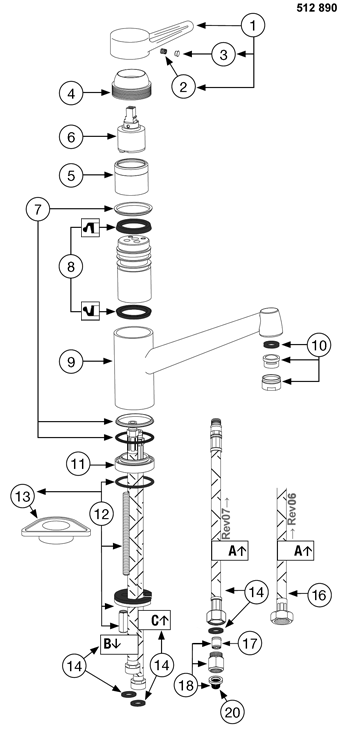

Spare Parts

Valid From	Name
Position Number	1	Art. ID	139376	Valid From	12/2005	Name	Lever ACTIS chrome NF
Position Number	2	Art. ID	139443	Valid From	12/2005	Name	Hex socket screw lever wrench size = 2,5 mm NF
Position Number		Art. ID	139188	Valid From	12/2005	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	139960	Valid From	12/2005	Name	Cap for lever chrome NF
Position Number	4	Art. ID	139391	Valid From	12/2005	Name	Locknut cartridge ACTIS chrome NF
Position Number		Art. ID	139219	Valid From	12/2005	Name	Universal spanner for cartridge cover ring NF
Position Number	5	Art. ID	139893	Valid From	12/2005	Name	Cartridge bush ACTIS brass NF
Position Number	6	Art. ID	121491 (6 / G)	Valid From	12/2005	Name	Cartridge LP 35 mm KE, blue, Low pressure
Position Number		Art. ID	120088 (3 / D)	Valid From	12/2005	Name	Cartridge 35 mm LP KI (replaced by 121491), blue, Low pressure
Position Number		Art. ID	116409 (2 / C)	Valid From	12/2005	Name	Cartridge ND Hydroplast (replaced by 120088), grey, Low pressure
Position Number		Art. ID	116376 (1 / B)	Valid From	12/2005	Name	Cartridge LP (replaced by 116409) KE NF, blue, Low pressure
Position Number		Art. ID	139333 (1 / B)	Valid From	12/2005	Name	Cartridge LP (replaced by 116376), grey, Low pressure
Position Number		Art. ID	128570 (0 / A)	Valid From	01/2005	Name	Cartridge LP ACTIS, ATOS-S, PALLAS NB, black, Low pressure
Position Number	7	Art. ID	139892	Valid From	12/2005	Name	Set teflon rings + O-Ring ACTIS NF
Position Number	8	Art. ID	139891	Valid From	12/2005	Name	V-rings ACTIS (2 pieces) NF
Position Number		Art. ID	117933	Valid From	12/2005	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	12/2005	Name	Grease for mixer tap 5g Berulub Sihaf 2

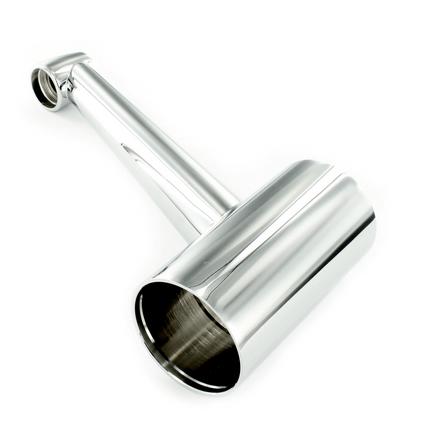

Position Number	9	Art. ID	139404	Valid From	12/2005	Name	Spout ACTIS chrome NF
Position Number	10	Art. ID	127397	Valid From	12/2005	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	139467	Valid From	12/2005	Name	Jet splitter set LP chrome (replace by 127397) NF, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	12/2005	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	12/2005	Name	Key for jet regulator/-splitter (1 piece)
Position Number	11	Art. ID	139887	Valid From	12/2005	Name	Base ACTIS chrome NF
Position Number	12	Art. ID	139890	Valid From	12/2005	Name	Assembly set NF
Position Number	13	Art. ID	126945	Valid From	12/2005	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	117184	Valid From	12/2005	Name	Stabilising plate (replaced by 126945) NF
Position Number	14	Art. ID	121656 (7 / H)	Valid From	05/2014	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913 (0 / A)	Valid From	01/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	119905	Valid From	01/2011	Name	Flexible hose B with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number		Art. ID	119911	Valid From	01/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number		Art. ID	139337	Valid From	12/2005	Name	Flexible hose (3 pieces) 55 cm metal (replaced by 119905, 119906, 119911 respectively 119913) NF
Position Number	16	Art. ID	119906 (0 / A)	Valid From	01/2011	Name	Flexible hose A with seal 45 cm metal 1/2" - M10x1 NF
Position Number	17	Art. ID	119974	Valid From	12/2005	Name	Non-return valve + Inset flow regulator 7L + seal, yellow
Position Number		Art. ID	139470	Valid From	12/2005	Name	Non-return valve/flow regulator combination (replaced by 119974) NF
Position Number	18	Art. ID	120496 (7 / H)	Valid From	05/2014	Name	Set flow regulator with seals MZ, green
Position Number		Art. ID	119897 (0 / A)	Valid From	12/2005	Name	Set flow regulator 7L/minute + housing + siveseal (green) ET 1/2" + IT 3/8" NF, green
Position Number		Art. ID	139339	Valid From	12/2005	Name	Flow regulator + housing 7l ET1/2" + IT 3/8" (replace by 119897) NF
Position Number	20	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	127401	Valid From	12/2005	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	139338	Valid From	12/2005	Name	Seal flexible pipe (2 pieces)
Position Number		Art. ID	513383	Valid From	12/2005	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	12/2005	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	12/2005	Name	Flexible sealing tape
