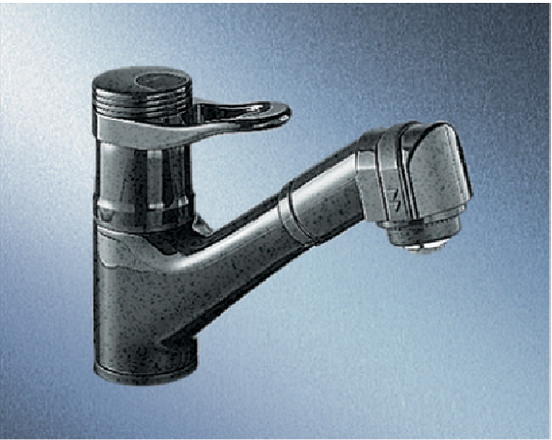

BLANCO ALKOR-S (Mix 3000 S), brass SILGRANIT-Look, anthracite, High Pressure

BLANCO ALKOR-S (Mix 3000 S), brass SILGRANIT-Look, anthracite, High Pressure

                    Article Number
                    137935


no longer available since 01/2002

Article-Version: Article also available in other versions!

BLANCO ALKOR-S (Mix 3000 S), brass SILGRANIT-Look, impala, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125834	Valid From	01/1996	Name	Lever anthracite, anthracite
Position Number	2	Art. ID	125039	Valid From	01/1996	Name	Cartridge HP 45 mm, blue, High Pressure
Position Number	3	Art. ID	125841	Valid From	01/1996	Name	Cover lever silgranit anthracite, anthracite

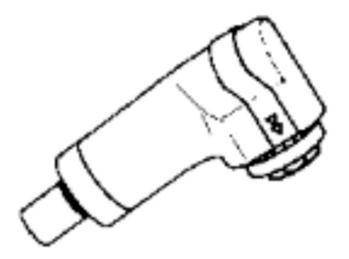

Position Number	4	Art. ID	125861	Valid From	01/1996	Name	Spray head HP anthracite SILGRANIT-Look, anthracite, High Pressure

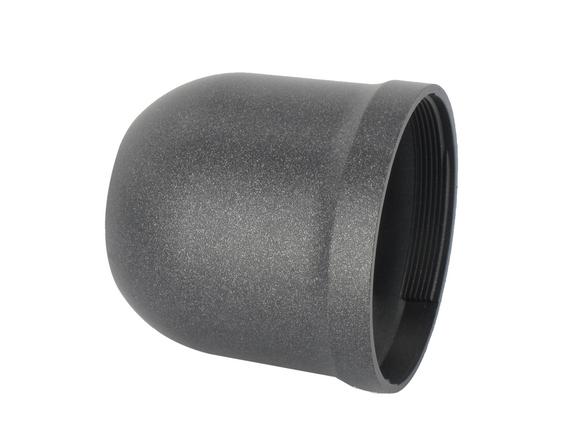

Position Number	5	Art. ID	125852	Valid From	01/1996	Name	Cover ring anthracite
Position Number	6	Art. ID	127478	Valid From	01/1996	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/1996	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/1996	Name	Aerator/distributor key
Position Number	7	Art. ID	125871	Valid From	01/1999	Name	Assembly set modified version
Position Number	8	Art. ID	117736	Valid From	01/1996	Name	Insert jet regulator HP with seal, High Pressure
Position Number		Art. ID	125054	Valid From	01/1996	Name	Sieve insert jet regulator (replaced by 117736), High Pressure
Position Number	9	Art. ID	125874	Valid From	01/1996	Name	Coupling hose connection
Position Number	10	Art. ID	125876	Valid From	01/1996	Name	Stop spring
Position Number	11	Art. ID	125068	Valid From	01/1996	Name	Return spring spray hose
Position Number		Art. ID	120285	Valid From	01/1996	Name	Weight (408g)
Position Number	12	Art. ID	125069	Valid From	01/1996	Name	Spray hose 145 cm metal
Position Number	14	Art. ID	116576	Valid From	01/1996	Name	Non-return valve Ø 15 mm, beige
Position Number		Art. ID	125767	Valid From	01/1996	Name	Non-return valve Ø 15 mm (replaced by 116576), beige
Position Number		Art. ID	125160	Valid From	01/1996	Name	Non-return valve (replaced by 125767)
Position Number		Art. ID	125067	Valid From	01/1996	Name	Non-return valve (replaced by 125160)
Position Number	15	Art. ID	126945	Valid From	01/1996	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	125872	Valid From	01/1996	Name	Stabilizing plate (replaced by 126945)
Position Number	16	Art. ID	126854	Valid From	01/1996	Name	O-Ring pump
Position Number		Art. ID	126436	Valid From	01/1996	Name	Seal spray hose below
Position Number		Art. ID	125875	Valid From	01/1996	Name	O-Ring 10x2 mm hose (replaced by 126436)
Position Number	17	Art. ID	126855	Valid From	01/1999	Name	Flexible hoses 55 cm metal with gasket (2 pieces)
Position Number		Art. ID	125854	Valid From	01/1996	Name	Connection pipe 45 cm metal
Position Number	20	Art. ID	126852	Valid From	01/1996	Name	Disassembly key connection pipe/hose
Position Number		Art. ID	513383	Valid From	01/1996	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1996	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1996	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1996	Name	Flexible sealing tape (3 x 150 mm)
