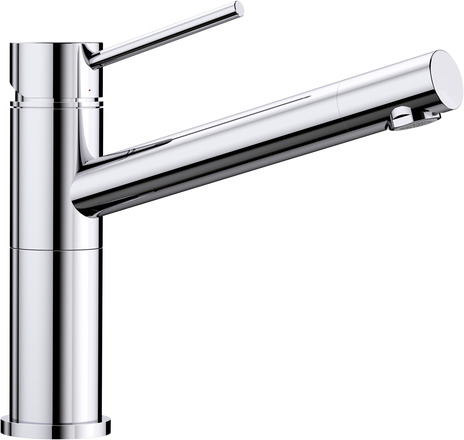

BLANCO ALTA Compact, brass galvanic, chrome, Low pressure

BLANCO ALTA Compact, brass galvanic, chrome, Low pressure

                    Article Number
                    518447


no longer available since 04/2024

Added to Your Shopping Cart

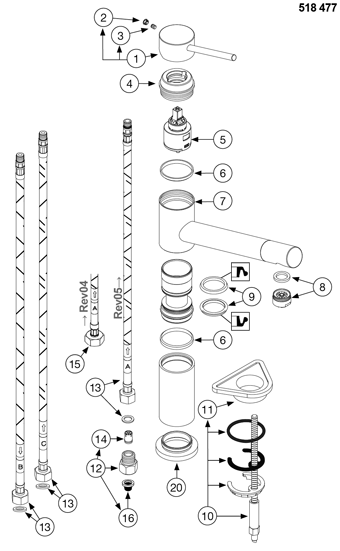

Spare Parts

Valid From	Name
Position Number	1	Art. ID	128591	Valid From	10/2011	Name	Lever ALTA chrome complete NF
Position Number	2	Art. ID	128685	Valid From	10/2011	Name	Screw M5x4 wrench size = 2,5 mm + color cap chrome NF + SO
Position Number		Art. ID	139444	Valid From	10/2011	Name	Cap for lever chrome NF (repalced by 128685)
Position Number	3	Art. ID	119972	Valid From	10/2011	Name	Screw for lever NF (screw tip specifically for LP-cardriges) M5x6
Position Number		Art. ID	139188	Valid From	10/2011	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	128593	Valid From	10/2011	Name	Cover ring ALTA chrome NF
Position Number		Art. ID	139219	Valid From	10/2011	Name	Universal spanner for cartridge cover ring NF
Position Number	5	Art. ID	121491	Valid From	10/2011	Name	Cartridge LP 35 mm KE, blue, Low pressure
Position Number		Art. ID	120088	Valid From	10/2011	Name	Cartridge 35 mm LP KI (replaced by 121491), blue, Low pressure
Position Number		Art. ID	116409	Valid From	10/2011	Name	Cartridge ND Hydroplast (replaced by 120088), grey, Low pressure
Position Number	6	Art. ID	128937	Valid From	10/2011	Name	Set of plastic rings (2 pieces) NF
Position Number	7	Art. ID	117001	Valid From	10/2011	Name	Spout ALTA compact chrome NF
Position Number	8	Art. ID	127397	Valid From	10/2011	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	139467	Valid From	10/2011	Name	Jet splitter set LP chrome (replace by 127397) NF, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2011	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	10/2011	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	128600	Valid From	10/2011	Name	Body seals 39,5x30,7x4,1mm (2 pieces) NF
Position Number		Art. ID	117933	Valid From	10/2011	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2011	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	10	Art. ID	119975	Valid From	10/2011	Name	Assembly set NF
Position Number	11	Art. ID	126945	Valid From	10/2011	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	117184	Valid From	10/2011	Name	Stabilising plate (replaced by 126945) NF
Position Number	12	Art. ID	120496 (5 / F)	Valid From	05/2014	Name	Set flow regulator with seals MZ, green
Position Number		Art. ID	119897 (0 / A)	Valid From	10/2011	Name	Set flow regulator 7L/minute + housing + siveseal (green) ET 1/2" + IT 3/8" NF, green
Position Number		Art. ID	139339	Valid From	10/2011	Name	Flow regulator + housing 7l ET1/2" + IT 3/8" (replace by 119897) NF
Position Number	13	Art. ID	121656 (5 / F)	Valid From	05/2014	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913 (0 / A)	Valid From	10/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	119911 (0 / A)	Valid From	10/2011	Name	Flexible hose C with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number		Art. ID	119905 (0 / A)	Valid From	10/2011	Name	Flexible hose B with integrated seal 55 cm metal M10x1 (replaced by 119913) NF
Position Number	14	Art. ID	119974 (0 / A)	Valid From	10/2011	Name	Non-return valve + Inset flow regulator 7L + seal, yellow
Position Number	15	Art. ID	119906 (0 / A)	Valid From	10/2011	Name	Flexible hose A with seal 45 cm metal 1/2" - M10x1 NF
Position Number	16	Art. ID	118840	Valid From	10/2011	Name	Filter gasket for 3/8" corner valve
Position Number	17	Art. ID	139953	Valid From	10/2011	Name	Seals connection spray pipe (2 pieces) NF
Position Number	20	Art. ID	118151	Valid From	10/2011	Name	Base ALTA / Compact chrome NF
Position Number		Art. ID	513383	Valid From	10/2011	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2011	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2011	Name	Flexible sealing tape
