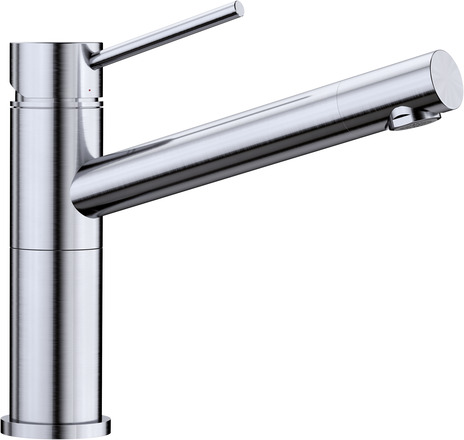

BLANCO ALTA Compact, brass galvanic, stainless steel finish, High Pressure

BLANCO ALTA Compact, brass galvanic, stainless steel finish, High Pressure

                    Article Number
                    515121


no longer available since 04/2024

Article-Version: Article also available in other versions!

BLANCO ALTA Compact, brass galvanic, chrome, High Pressure

515120

Added to Your Shopping Cart

Spare Parts

Valid From	Name

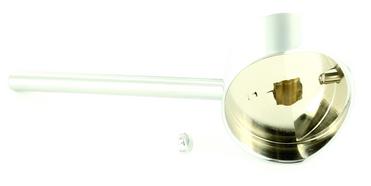

Position Number	1	Art. ID	128747	Valid From	10/2007	Name	Lever stainless steel finish
Position Number	2	Art. ID	128895	Valid From	10/2007	Name	Screw 2.5 mm + cap stainless steel finish
Position Number		Art. ID	139188	Valid From	10/2007	Name	Hex key SW 2.5 mm

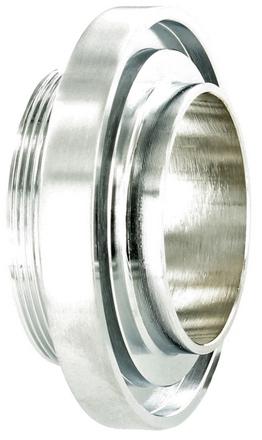

Position Number	4	Art. ID	128748	Valid From	10/2007	Name	Cover ring stainless steel finish
Position Number		Art. ID	139219	Valid From	10/2007	Name	Universal key for cartridge cover ring
Position Number	5	Art. ID	121894	Valid From	10/2007	Name	Cartridge HP Ø 35 mm, blue, High Pressure
Position Number		Art. ID	118787	Valid From	10/2007	Name	Cartridge HP 35 mm (replaced by 121894 or 121896), blue, High Pressure
Position Number		Art. ID	128595	Valid From	10/2007	Name	Cartridge HP 35 mm (replaced by 118787), black, High Pressure
Position Number	6	Art. ID	128937	Valid From	10/2007	Name	Plastic rings set spout

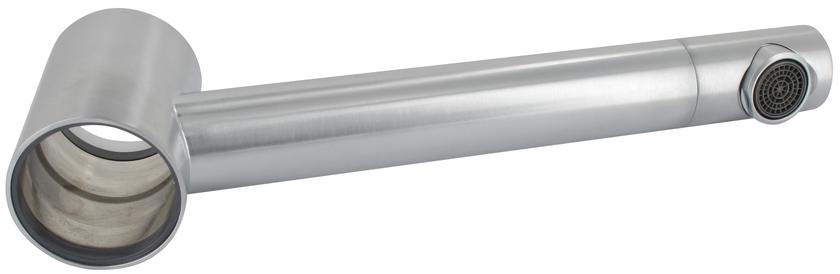

Position Number	7	Art. ID	117010	Valid From	10/2007	Name	Spout stainless finish
Position Number	8	Art. ID	128751	Valid From	10/2007	Name	Jet regulator HP stainless steel finish OT M24x1, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2007	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	139688	Valid From	10/2007	Name	Jet regulator HP stainless steel finish OT M24x1 (replaced by 128751), High Pressure Spareparts
Position Number		Art. ID	511324	Valid From	10/2007	Name	Aerator/distributor key
Position Number	9	Art. ID	128600	Valid From	10/2007	Name	Body seals 39.5x30.7x4.1 mm (2 pieces)
Position Number		Art. ID	117933	Valid From	10/2007	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2007	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	10	Art. ID	118153	Valid From	10/2007	Name	Base stainless steel finish
Position Number	11	Art. ID	126945	Valid From	10/2007	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	117184	Valid From	10/2007	Name	Stabilizing plate (replaced by 126945)
Position Number	12	Art. ID	119975	Valid From	10/2007	Name	Assembly set
Position Number		Art. ID	128905	Valid From	10/2007	Name	Assembly set (replaced by 119975)
Position Number	13	Art. ID	123948	Valid From	10/2007	Name	Flexible hose 70 cm red ⅜'' - M10x1
Position Number		Art. ID	119417	Valid From	10/2007	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number	14	Art. ID	123949	Valid From	10/2007	Name	Flexible hose 70 cm blue ⅜'' - M10x1
Position Number		Art. ID	119416	Valid From	10/2007	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	128602	Valid From	10/2007	Name	Flexible hoses 65 cm metal with integrated gasket, 65 cm metal (2 pieces) (replaced by 119416 and 119417)
Position Number	15	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal ⅜'' angle valve
Position Number		Art. ID	127401	Valid From	10/2007	Name	Fiber seal flex hose ⅜'' (1 piece)
Position Number		Art. ID	139338	Valid From	10/2007	Name	Fiber seals flex hose (2 pieces) (replaced by 127401)
Position Number		Art. ID	513383	Valid From	10/2007	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2007	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2007	Name	Flexible sealing tape (3 x 150 mm)
