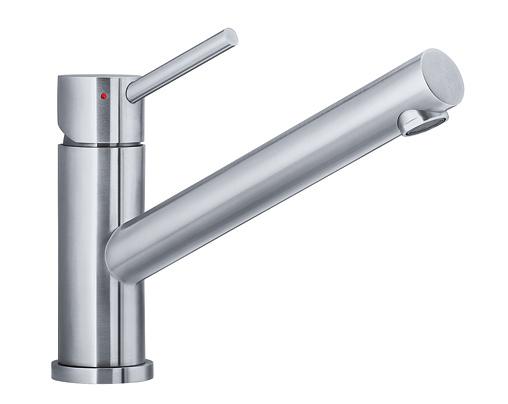

BLANCO ALTURA, Stainless steel solid, stainless steel, High Pressure

BLANCO ALTURA, Stainless steel solid, stainless steel, High Pressure

                    Article Number
                    518720


no longer available since 12/2021

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	120257	Valid From	06/2012	Name	Lever ALTURA /-S HP stainless steel complete GE, stainless steel
Position Number	2	Art. ID	120290	Valid From	06/2012	Name	Screw for lever M5x4 GE
Position Number		Art. ID	139188	Valid From	06/2012	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	124783	Valid From	06/2012	Name	Cartridge cover ring brushed steel ALTURA /-S
Position Number	4	Art. ID	120260	Valid From	06/2012	Name	Locknut cartridge GE
Position Number		Art. ID	127433	Valid From	06/2012	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	5	Art. ID	121894	Valid From	06/2012	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	118787	Valid From	06/2012	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number	6	Art. ID	120261	Valid From	06/2012	Name	Set teflon rings + O-Ring GE

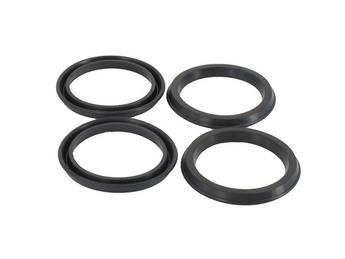

Position Number	7	Art. ID	120262	Valid From	06/2012	Name	Set body seals GE
Position Number		Art. ID	117933	Valid From	06/2012	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	06/2012	Name	Grease for mixer tap 5g Berulub Sihaf 2

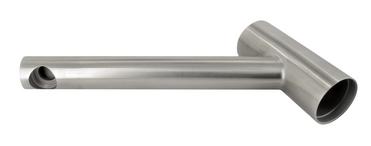

Position Number	8	Art. ID	120263	Valid From	06/2012	Name	Spout ALTURA HP stainless steel GE
Position Number	9	Art. ID	120264	Valid From	06/2012	Name	Jet regulator set HP stainless steel GE, High Pressure
Position Number		Art. ID	117502	Valid From	06/2012	Name	Seal for jet regulator 16.0 x 20.8 x 1.48 mm
Position Number		Art. ID	511324	Valid From	06/2012	Name	Key for jet regulator/-splitter (1 piece)
Position Number	10	Art. ID	120265	Valid From	06/2012	Name	Base ALTURA/-S GE
Position Number	11	Art. ID	120266	Valid From	06/2012	Name	Locking ring ALTURA/-S GE
Position Number		Art. ID	120271	Valid From	06/2012	Name	Key holding ring ALTURA/-S GE
Position Number	12	Art. ID	120267	Valid From	06/2012	Name	Seal GE
Position Number	13	Art. ID	126945	Valid From	06/2012	Name	Stabilization triangle mixer taps BLANCO
Position Number	14	Art. ID	120268	Valid From	06/2012	Name	Assembly set ALTURA/-S HP GE
Position Number	15	Art. ID	120269	Valid From	06/2012	Name	Flexible hose blue with gasket/mud guard 50 cm metal M10x1 BL(GE) (replaced by 123947)
Position Number	16	Art. ID	123946	Valid From	06/2012	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	120270	Valid From	06/2012	Name	Flexible hose red with gasket/mud guard 50 cm metal M10x1 BL (GE) (replaced by 123946)
Position Number	17	Art. ID	118840	Valid From	06/2012	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	06/2012	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	06/2012	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	06/2012	Name	Flexible sealing tape
