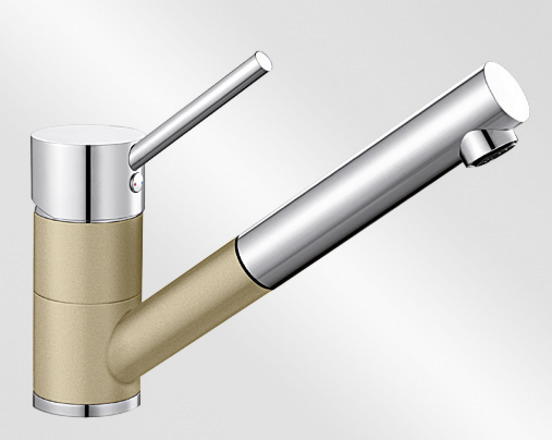

BLANCO ANTAS-S, brass Ceramic-Look dual finish, cashmere/chrome, High Pressure

BLANCO ANTAS-S, brass Ceramic-Look dual finish, cashmere/chrome, High Pressure

                    Article Number
                    516073


no longer available since 12/2011

Article-Version: Article also available in other versions!

BLANCO ANTAS-S, brass Ceramic-Look dual finish, alu grey/chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	116801	Valid From	10/2008	Name	Lever chrome, chrome
Position Number	2	Art. ID	116802	Valid From	10/2008	Name	Cap lever
Position Number	3	Art. ID	116803	Valid From	10/2008	Name	Screw lever M5x6 hexagon socket 2.5 mm
Position Number		Art. ID	139188	Valid From	10/2008	Name	Hex key SW 2.5 mm
Position Number	4	Art. ID	116804	Valid From	10/2008	Name	Cover ring chrome
Position Number		Art. ID	116846	Valid From	10/2008	Name	Cover ring chrome (replaced by 116804)
Position Number	5	Art. ID	116805	Valid From	10/2008	Name	Cartridge lock nut
Position Number		Art. ID	116847	Valid From	10/2008	Name	Cartridge lock nut (replaced by 116805)
Position Number		Art. ID	127433	Valid From	10/2008	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121895	Valid From	10/2008	Name	Kartusche HD Ø 40 mm, blue, High Pressure
Position Number		Art. ID	121897	Valid From	10/2008	Name	Kartusche HD Ø 40 mm (ersetzt durch 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	10/2008	Name	Kartusche HD 40 mm (ersetzt durch 121895 oder 121897), blue, High Pressure
Position Number		Art. ID	116806	Valid From	10/2008	Name	Kartusche HD 40 mm (ersetzt durch 118788,121895 oder 121897), blue, High Pressure

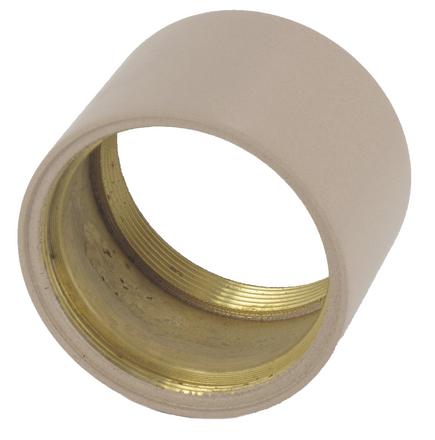

Position Number	7	Art. ID	117812	Valid From	10/2008	Name	Cover cylinder cashmere
Position Number	8	Art. ID	116848	Valid From	10/2008	Name	Plastic rings set
Position Number	9	Art. ID	116849	Valid From	10/2008	Name	Inner body
Position Number	10	Art. ID	117813	Valid From	10/2008	Name	Outer body cashmere
Position Number	11	Art. ID	116851	Valid From	10/2008	Name	Base
Position Number	12	Art. ID	116852	Valid From	10/2008	Name	Spray head HP chrome galvanic, chrome, High Pressure
Position Number	13	Art. ID	116488	Valid From	10/2008	Name	Jet regulator HP chrome IT M22x1, High Pressure Spareparts
Position Number		Art. ID	117982	Valid From	10/2008	Name	Jet regulator HP chrome IT M22x1 (replaced by 116488), High Pressure Spareparts
Position Number		Art. ID	117502	Valid From	10/2008	Name	Seal aerator 16.0 x 20.8 x 1.48 mm
Position Number		Art. ID	511324	Valid From	10/2008	Name	Aerator/distributor key
Position Number	14	Art. ID	124210 (8 / I)	Valid From	10/2008	Name	Spray hose 150 cm 1/2"-M15x1 nylon black
Position Number		Art. ID	139909 (8 / I)	Valid From	10/2008	Name	Spray hose 150 cm nylon with gaskets (replaced by 124210)
Position Number		Art. ID	120975 (8 / I)	Valid From	10/2008	Name	Spray hose 150 cm nylon incl. gaskets (replaced by 139909)
Position Number		Art. ID	118076 (0 / A)	Valid From	10/2008	Name	Spray hose 150 cm metal incl. gaskets
Position Number	15	Art. ID	123935	Valid From	10/2008	Name	Flexible hose 50 cm blue 3/8" - M8x1
Position Number		Art. ID	122472	Valid From	10/2008	Name	Flexible hose 50 cm metal blue 3/8" - M8x1 with filter gasket facelift (replaced by 123935)
Position Number		Art. ID	120133	Valid From	10/2008	Name	Flexible hose 50 cm metal blue M8x1 with filter gasket (replaced by 122472)
Position Number		Art. ID	120415	Valid From	10/2008	Name	Flexible hose 45 cm metal blue M8x1 with filter gasket (replaced by 120133)
Position Number		Art. ID	123934	Valid From	10/2008	Name	Flexible hose 50 cm red 3/8" - M8x1
Position Number		Art. ID	122473	Valid From	10/2008	Name	Flexible hose 50 cm metal red M8x1 - 3/8" with filter gasket facelift (replaced by 123934)
Position Number		Art. ID	120134	Valid From	10/2008	Name	Flexible hose 50 cm metal red M8x1 with filter gasket (replaced by 122473)
Position Number		Art. ID	120416	Valid From	10/2008	Name	Flexible hose 45 cm metal red M8x1 with filter gasket (replaced by 120134)
Position Number		Art. ID	116854	Valid From	10/2008	Name	Flexible hoses 45 cm metal with integrated gasket (2 pieces) (replaced by 120415 and 120416)
Position Number	16	Art. ID	119679	Valid From	10/2008	Name	Connection hose 20 cm metal ET M10x1 x IT M15x1 without seal
Position Number		Art. ID	116855	Valid From	10/2008	Name	Flexible hose 20 cm metal without gasket, 20 cm metal (replaced by 119679)
Position Number	17	Art. ID	116856	Valid From	10/2008	Name	Assembly set including stabilization triangle
Position Number	18	Art. ID	123063 (8 / I)	Valid From	10/2008	Name	Weight (200g)
Position Number		Art. ID	125764 (8 / I)	Valid From	10/2008	Name	Weight (260g) (replaced by 128707 or 123063)
Position Number		Art. ID	124881 (0 / A)	Valid From	10/2008	Name	Weight (445g)
Position Number		Art. ID	123888 (0 / A)	Valid From	10/2008	Name	Weight (420g) (replaced by 124881)
Position Number		Art. ID	128707 (0 / A)	Valid From	10/2008	Name	Weight (221g) Ø14 mm (replaced by 123888)
Position Number		Art. ID	116857 (0 / A)	Valid From	10/2008	Name	Weight (233g) (replaced by 125764 or 128707)
Position Number	19	Art. ID	116576	Valid From	10/2008	Name	Non-return valve Ø 15 mm, beige
Position Number		Art. ID	117935	Valid From	10/2008	Name	Non-return valve Ø 14 mm (replaced by 116576), white
Position Number	20	Art. ID	119825	Valid From	10/2008	Name	Fitprewterg piece
Position Number		Art. ID	118333	Valid From	10/2008	Name	Fitprewterg piece (replaced by 119825)
Position Number	21	Art. ID	126945	Valid From	02/2012	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	119557	Valid From	02/2012	Name	Stabilizing plate (replaced by 126945) AV
Position Number		Art. ID	117739	Valid From	10/2008	Name	Stabilizing plate (replaced by 119557) AV
Position Number	22	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number	23	Art. ID	119831	Valid From	10/2008	Name	Seal spray hose above
Position Number	24	Art. ID	119862	Valid From	10/2008	Name	Rubber seal
Position Number		Art. ID	513383	Valid From	10/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	10/2008	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	10/2008	Name	Flexible sealing tape (3 x 150 mm)
