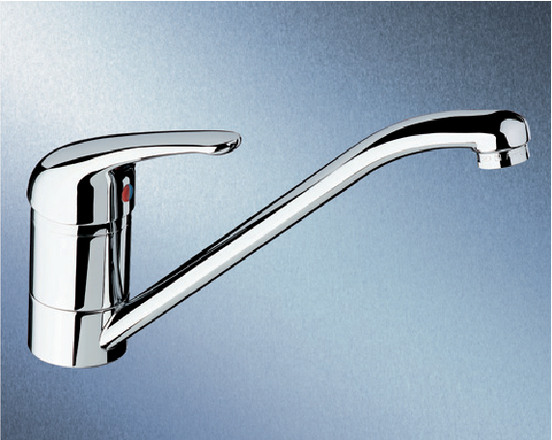

BLANCO ARIS, brass galvanic, chrome, High Pressure

BLANCO ARIS, brass galvanic, chrome, High Pressure

                    Article Number
                    512100


no longer available since 12/2008

Added to Your Shopping Cart

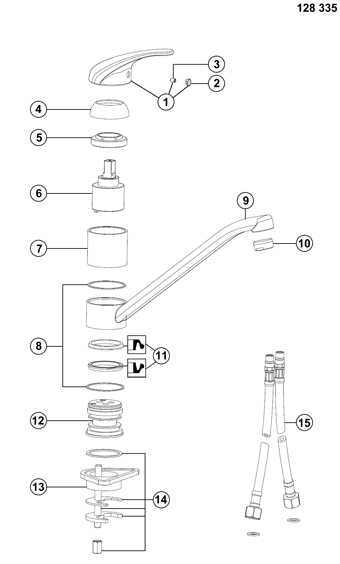

Spare Parts

Valid From	Name

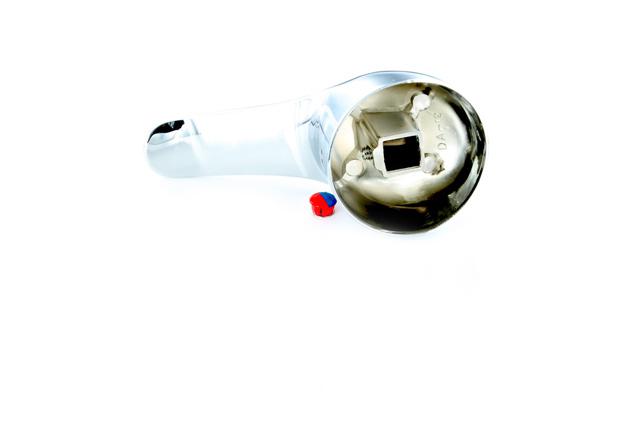

Position Number	1	Art. ID	128330	Valid From	09/2002	Name	Lever ARIS chrome complete, chrome
Position Number	2	Art. ID	126959	Valid From	09/2002	Name	Color cap lever MZ
Position Number	3	Art. ID	116803	Valid From	09/2002	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	09/2002	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	09/2002	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	09/2002	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	128027	Valid From	09/2002	Name	Cover ring ORION chrome plastic
Position Number	5	Art. ID	127375	Valid From	09/2002	Name	Locknut cartridge ORION, PALLAS
Position Number		Art. ID	127433	Valid From	09/2002	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	09/2002	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	118788	Valid From	09/2002	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure

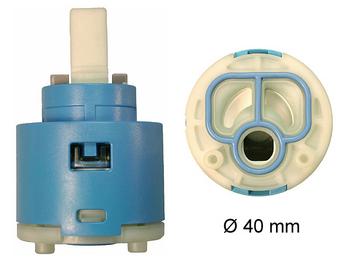

Position Number		Art. ID	128331	Valid From	09/2002	Name	Cartridge HP ARIS-S Ø= 40 mm (replaced by 118788), blue, High Pressure
Position Number	7	Art. ID	125991	Valid From	09/2002	Name	Cover cylinder ORION chrome MZ
Position Number	8	Art. ID	127386	Valid From	09/2002	Name	Teflon ring ORION, PALLAS

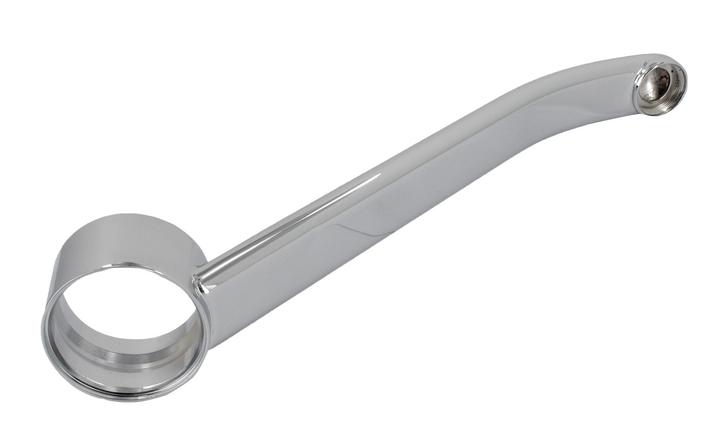

Position Number	9	Art. ID	128332	Valid From	09/2002	Name	Spout ARIS chrome
Position Number	10	Art. ID	117344	Valid From	09/2002	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	128333	Valid From	09/2002	Name	Jet regulator set HP chrome MZ HA (replace by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	09/2002	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	09/2002	Name	Key for jet regulator/-splitter (1 piece)
Position Number	11	Art. ID	127398	Valid From	09/2002	Name	Body seal ORION, PALLAS
Position Number		Art. ID	117933	Valid From	09/2002	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	09/2002	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	12	Art. ID	128334	Valid From	09/2002	Name	Inner body ARIS
Position Number	13	Art. ID	126945	Valid From	09/2002	Name	Stabilization triangle mixer taps BLANCO
Position Number	14	Art. ID	119565	Valid From	02/2012	Name	Assembly set inclusive gasket/mud guard MZ
Position Number		Art. ID	116397	Valid From	09/2002	Name	Assembly set (replaced by 119565) MZ
Position Number		Art. ID	128040	Valid From	09/2002	Name	Assembly set HP MZ
Position Number	15	Art. ID	123947	Valid From	06/2019	Name	Flexible hose 50 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123019	Valid From	06/2019	Name	Flexible hose blue with filter gasket facelift 45 cm metal M 10x1 (replaced by 123947)
Position Number		Art. ID	119899	Valid From	09/2002	Name	Flexible hose blue with gasket/mud guard 44 cm metal M10x1 BL (NF) (replaced by 123019)
Position Number		Art. ID	123946	Valid From	06/2019	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123018	Valid From	06/2019	Name	Flexible hose red with filter gasket facelift 45cm metal M 10x1 (replaced by 123946)
Position Number		Art. ID	119902	Valid From	09/2002	Name	Flexible hose red with gasket/mud guard 44 cm metal M10x1 BL (NF) (replaced by 123018)
Position Number		Art. ID	116391	Valid From	09/2002	Name	Flexible hose with integrated seal 35 cm metal M10x1 (replaced by 119899 und 119902) MZ

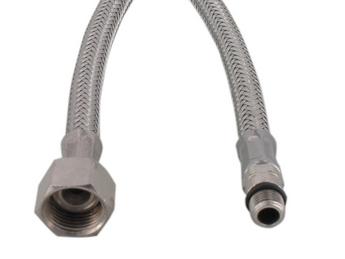

Position Number		Art. ID	128305	Valid From	09/2002	Name	Flexible hose CITO HP without seal 35 cm metal (replaced by 116391)
Position Number		Art. ID	127401	Valid From	09/2002	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	513383	Valid From	09/2002	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	09/2002	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	09/2002	Name	Flexible sealing tape
