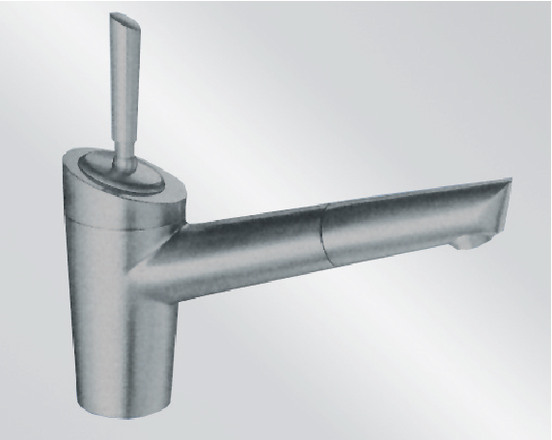

BLANCO COMET-S, brass galvanic, aluminium look, High Pressure

BLANCO COMET-S, brass galvanic, aluminium look, High Pressure

                    Article Number
                    511544


no longer available since 10/2000

Article-Version: Article also available in other versions!

BLANCO COMET-S, brass galvanic, satin chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

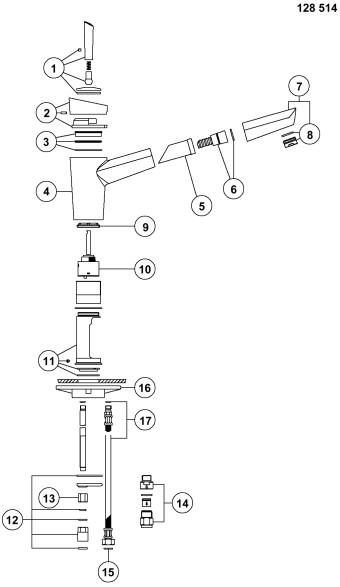

Valid From	Name

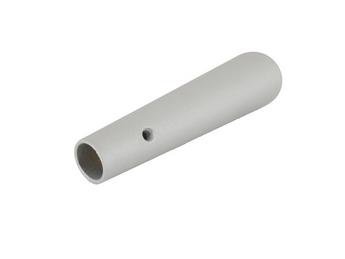

Position Number	1	Art. ID	127411	Valid From	01/1999	Name	Lever COMET-S aluminium optic, aluminium look

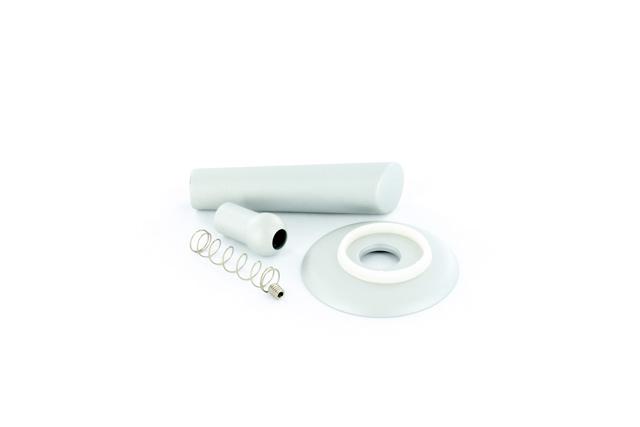

Position Number		Art. ID	127412	Valid From	01/1999	Name	Lever COMET-S aluminium optic complete, aluminium look
Position Number		Art. ID	128817	Valid From	06/2003	Name	Screw for lever COMET-S M5x5
Position Number		Art. ID	128531	Valid From	08/2002	Name	Screw M4x5 for lever COMET-S
Position Number		Art. ID	127206	Valid From	01/1999	Name	Screw lever COMET-S
Position Number		Art. ID	139189	Valid From	01/1999	Name	Box spanner hex key AF 2 mm

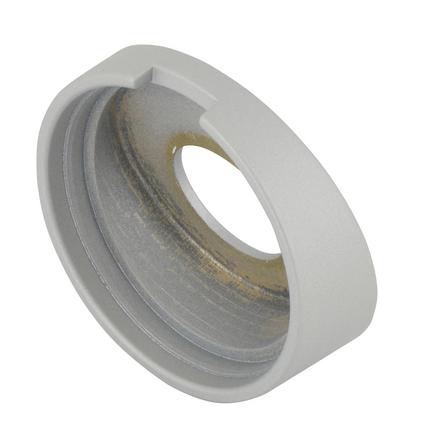

Position Number	2	Art. ID	127413	Valid From	01/1999	Name	Cover ring COMET-S aluminium optic
Position Number		Art. ID	128532	Valid From	01/1999	Name	Screw M4x10 for cover ring COMET-S
Position Number	3	Art. ID	128493	Valid From	01/1999	Name	Assembly ring, seal, 2 teflon rings
Position Number		Art. ID	117933	Valid From	01/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	5	Art. ID	116516	Valid From	08/2002	Name	Fitting piece spray head ATOS-S HA
Position Number		Art. ID	128498	Valid From	08/2002	Name	Fitting piece spray head COMET-S, ATOS-S (replaced by 116516)

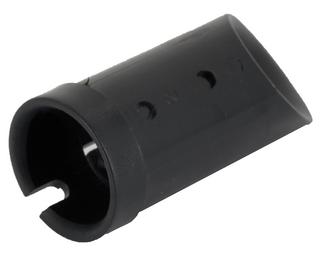

Position Number		Art. ID	127201	Valid From	01/1999	Name	Fitting piece spray head ATOS-S, COMET-S
Position Number	6	Art. ID	125763	Valid From	01/1999	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	01/1999	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number	7	Art. ID	127414	Valid From	01/1999	Name	Spray head COMET-S HP aluminium optic complete galvanic, aluminium look, High Pressure
Position Number	8	Art. ID	117344	Valid From	01/1999	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	01/1999	Name	Jet regulator set HP OT M24x1 AF22 chrome (replace by 117344) NE, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/1999	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	128502	Valid From	01/1999	Name	Jet regulator COMET-S HP chrome (replaced by 127170), High Pressure
Position Number		Art. ID	126523	Valid From	01/1999	Name	Jet regulator HP (replaced by 127170), High Pressure
Position Number		Art. ID	511324	Valid From	01/1999	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	128505	Valid From	08/2002	Name	Locknut cartridge COMET-S

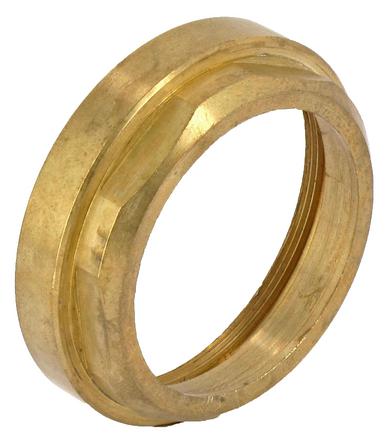

Position Number		Art. ID	127213	Valid From	01/1999	Name	Locknut cartridge COMET-S until 07/2002
Position Number		Art. ID	127433	Valid From	01/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel

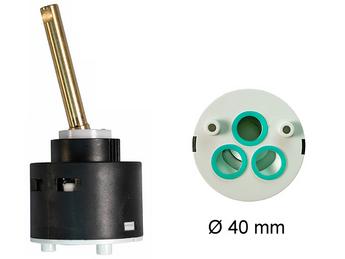

Position Number	10	Art. ID	128506	Valid From	08/2002	Name	Cartridge HP COMET-S, black, High Pressure

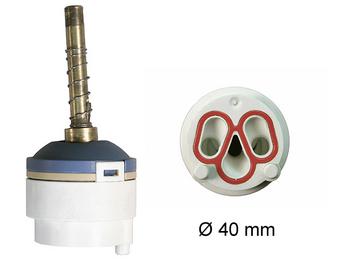

Position Number		Art. ID	127214	Valid From	01/1999	Name	Cartridge HP/LP COMET-S old CR, white, Low Pressure
Position Number	11	Art. ID	128507	Valid From	08/2002	Name	Inner body ATOS-S, COMET-S HP complete

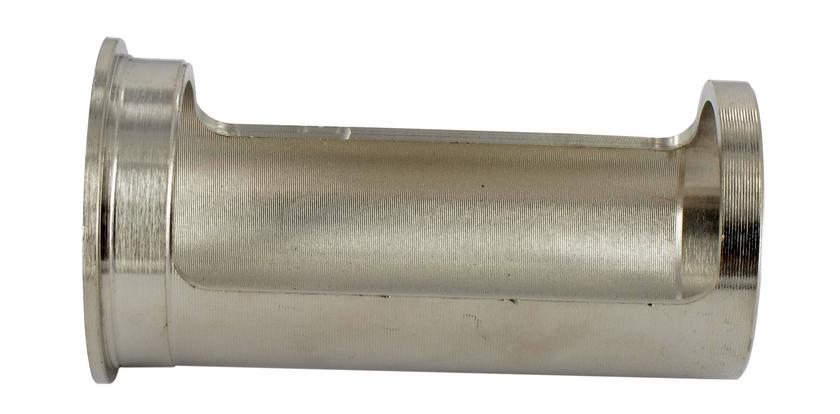

Position Number		Art. ID	127177	Valid From	01/1999	Name	Inner body bottom ATOS-S, COMET-S
Position Number		Art. ID	127219	Valid From	01/1999	Name	Inner body COMET-S
Position Number		Art. ID	126554	Valid From	01/1999	Name	O-ring ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	127184	Valid From	01/1999	Name	Teflon ring ATOS-S HP, COMET-S HP/LP
Position Number	12	Art. ID	128508	Valid From	08/2002	Name	Assembly set COMET-S, ATOS-S
Position Number		Art. ID	126569	Valid From	01/1999	Name	Spring fastener ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	126570	Valid From	01/1999	Name	Spring ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	126566	Valid From	01/1999	Name	Thread rod COMET-S, ORION-S
Position Number		Art. ID	127191	Valid From	01/1999	Name	Hose guide ATOS-S, COMET-S, ORION-S
Position Number	13	Art. ID	126207	Valid From	01/1999	Name	Assembly nut PALLAS NB
Position Number	14	Art. ID	125813	Valid From	08/2002	Name	Set screw connecting spray pipe with seals HA
Position Number		Art. ID	125927	Valid From	08/2002	Name	Non-return valve + Assembly set ATOS, COMET, PALLAS-S (replaced by 128508+125813)
Position Number		Art. ID	116576	Valid From	01/1999	Name	Non-return valve Ø 15 mm JW, beige
Position Number		Art. ID	125767	Valid From	01/1999	Name	Non-return valve Ø=15 mm HA (replaced by 116576), beige
Position Number		Art. ID	126577	Valid From	01/1999	Name	Non-return valve HP ATOS-,COMET-,ORION-S (replaced by 125767) CR
Position Number		Art. ID	126578	Valid From	01/1999	Name	Connection thread rod ORION-S HP
Position Number		Art. ID	126579	Valid From	01/1999	Name	Connection flexible hose ORION-S HP
Position Number		Art. ID	126580	Valid From	01/1999	Name	O-ring connection spray hose ORION-S HP
Position Number		Art. ID	128815	Valid From	01/1999	Name	Non-return valve (replaced by 126578 or 126579 or 126580)

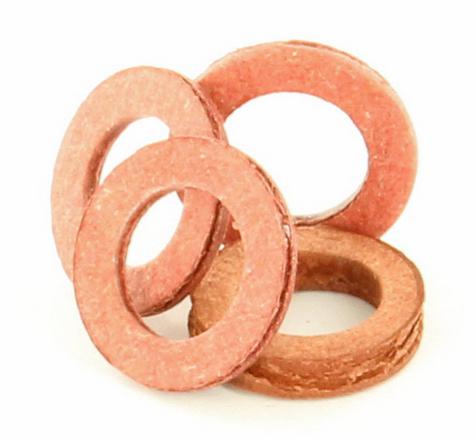

Position Number	15	Art. ID	128511	Valid From	08/2002	Name	Seals COMET-S, ATOS-S
Position Number		Art. ID	127401	Valid From	01/1999	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	127068	Valid From	01/1999	Name	Seal flexible pipe ATOS-S, ORION-S (replaced by 127401)
Position Number		Art. ID	126534	Valid From	01/1999	Name	Seal flexible pipe (replaced by 127068)
Position Number	16	Art. ID	126945	Valid From	08/2002	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126531	Valid From	01/1999	Name	Stabilising plate (replaced by 126945)
Position Number	17	Art. ID	123948	Valid From	05/2008	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119417	Valid From	05/2008	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119562	Valid From	05/2008	Name	Flexible hose HP red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) MZ
Position Number		Art. ID	116380	Valid From	05/2008	Name	Flexible hose HP red with integrated seal 50 cm metal (replaced by 119562) MZ
Position Number		Art. ID	126942	Valid From	08/2002	Name	Flexible hose ORION- S, PALLAS-S, WEGA-S red 50 cm metal (replaced by 116380)
Position Number		Art. ID	123949	Valid From	05/2008	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	05/2008	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119564	Valid From	05/2008	Name	Flexible hose HP blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) MZ
Position Number		Art. ID	116379	Valid From	05/2008	Name	Flexible hose HP blue with integrated seal 50 cm metal (replaced by 119564) MZ
Position Number		Art. ID	126943	Valid From	08/2002	Name	Flexible hose ORION-S,PALLAS-S,WEGA-S blue 50 cm metal (replaced by 116379)
Position Number		Art. ID	127192	Valid From	01/1999	Name	Flexible hose HP ATOS-S, COMET-S 50 cm metal
Position Number		Art. ID	513383	Valid From	01/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1999	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1999	Name	Flexible sealing tape
