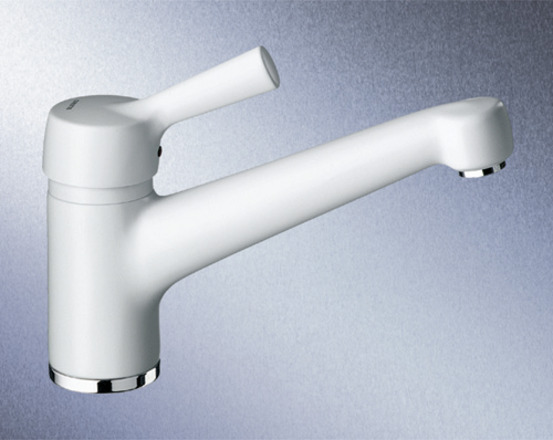

BLANCO ELIPSO, brass Ceramic-Look, white matt, High Pressure

BLANCO ELIPSO, brass Ceramic-Look, white matt, High Pressure

                    Article Number
                    512054


no longer available since 12/2008

Article-Version: Article also available in other versions!

BLANCO ELIPSO, brass Ceramic-Look, jasmine, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

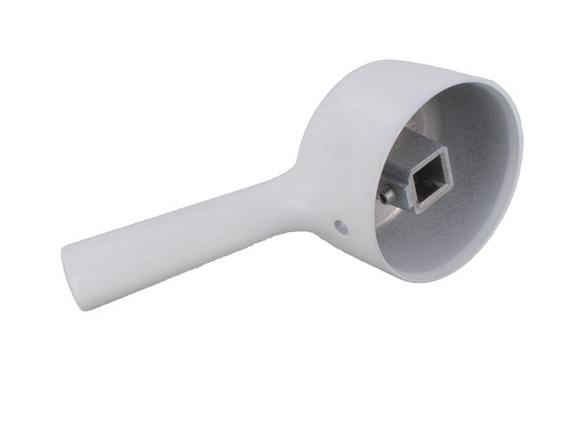

Position Number	1	Art. ID	128836	Valid From	09/2001	Name	Lever ceramic white
Position Number	2	Art. ID	119362	Valid From	09/2001	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	09/2001	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	09/2001	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	09/2001	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	09/2001	Name	Color cap lever blue/red

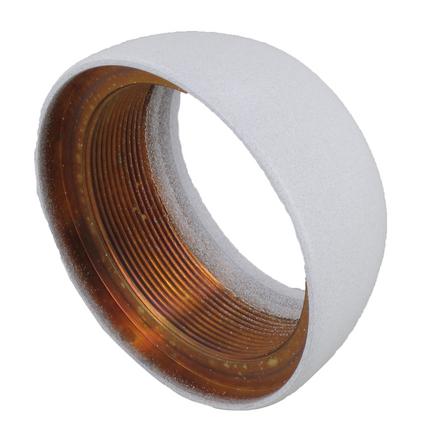

Position Number	4	Art. ID	128842	Valid From	09/2001	Name	Cover ring ceramic white
Position Number	5	Art. ID	139779	Valid From	09/2001	Name	Seal cartridge cover ring
Position Number	6	Art. ID	125745	Valid From	09/2001	Name	Cartridge lock nut
Position Number		Art. ID	127433	Valid From	09/2001	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	7	Art. ID	121895	Valid From	02/2003	Name	Kartusche HD Ø 40 mm, blue, High Pressure
Position Number		Art. ID	121897	Valid From	02/2003	Name	Kartusche HD Ø 40 mm (ersetzt durch 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	02/2003	Name	Kartusche HD 40 mm (ersetzt durch 121895 oder 121897), blue, High Pressure
Position Number		Art. ID	139323	Valid From	02/2003	Name	Kartusche HD 40 mm ELIPSO/-S geänderte Ausführung grau (ersetzt durch 118788), grey, High Pressure
Position Number		Art. ID	125746	Valid From	02/2003	Name	Kartusche HD 40 mm (ersetzt durch 139323), green, High Pressure
Position Number		Art. ID	123815	Valid From	09/2001	Name	Kartusche HD 40 mm offen, blue, High Pressure
Position Number		Art. ID	122064	Valid From	09/2001	Name	Kartusche HD Ø 40 mm offen (ersetzt durch 123815), blue, High Pressure
Position Number		Art. ID	120875	Valid From	09/2001	Name	Kartusche HD 40 mm geänderte Ausführung blau (ersetzt durch 122064), blue, High Pressure
Position Number		Art. ID	139322	Valid From	09/2001	Name	Kartusche HD 40 mm geänderte Ausführung grau (ersetzt durch 120875), grey, High Pressure
Position Number		Art. ID	125787	Valid From	09/2001	Name	Kartusche HD 40 mm (ersetzt durch 139322), green, High Pressure

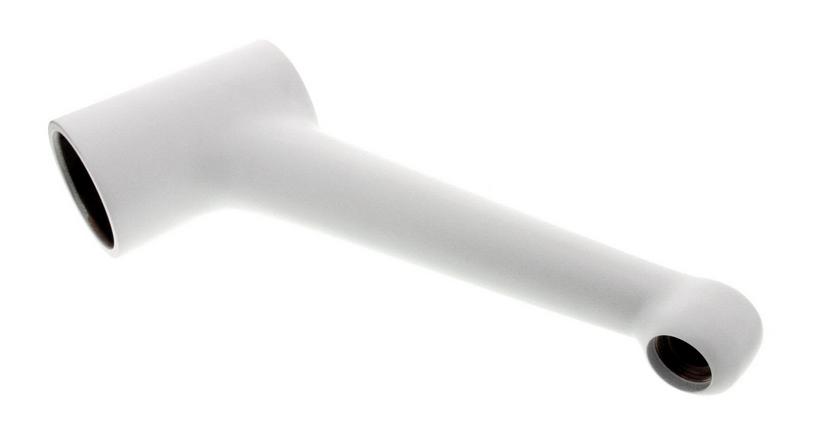

Position Number	8	Art. ID	128862	Valid From	09/2001	Name	Spout ceramic white
Position Number	9	Art. ID	117344	Valid From	09/2001	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	09/2001	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	09/2001	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	126331	Valid From	09/2001	Name	Jet regulator HP OT SW22 (replaced by 127840 or 117500), High Pressure
Position Number		Art. ID	511324	Valid From	09/2001	Name	Aerator/distributor key
Position Number	10	Art. ID	126814	Valid From	09/2001	Name	Cartridge seat HP (metal)
Position Number		Art. ID	126319	Valid From	09/2001	Name	O-Ring 2.62 x 29.83 mm
Position Number	11	Art. ID	126891	Valid From	09/2001	Name	Inner body and base chrome
Position Number	12	Art. ID	139324	Valid From	09/2003	Name	O-Ring 3.53 x 41.28 mm (Ø 48 mm)
Position Number		Art. ID	126812	Valid From	09/2001	Name	O-Ring 3.53 x 42.86 mm (Ø 50 mm)
Position Number		Art. ID	117933	Valid From	09/2001	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	09/2001	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	13	Art. ID	126479 (0 / A)	Valid From	09/2001	Name	Teflon ring
Position Number	14	Art. ID	123182	Valid From	01/2019	Name	Assembly set
Position Number		Art. ID	125761	Valid From	09/2001	Name	Assembly set (replaced by 123182)
Position Number		Art. ID	126945	Valid From	09/2001	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	15	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number		Art. ID	121656	Valid From	09/2001	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	09/2001	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	126492	Valid From	09/2001	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	128923	Valid From	09/2001	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number	16	Art. ID	117464	Valid From	09/2001	Name	Fiber seal
Position Number		Art. ID	126478	Valid From	09/2001	Name	Seal 15 x 10 x 3 mm (replaced by 117464)
Position Number	17	Art. ID	128746	Valid From	01/2003	Name	Inner body + base chrome
Position Number		Art. ID	128712	Valid From	01/2003	Name	Base chrome including gasket
Position Number	18	Art. ID	139537	Valid From	09/2005	Name	Teflon ring top
Position Number	19	Art. ID	139540 (5 / F)	Valid From	09/2005	Name	Teflon ring bottom
Position Number	20	Art. ID	128721	Valid From	01/2003	Name	Assembly set
Position Number		Art. ID	513383	Valid From	09/2001	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	09/2001	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	09/2001	Name	Flexible sealing tape (3 x 150 mm)
