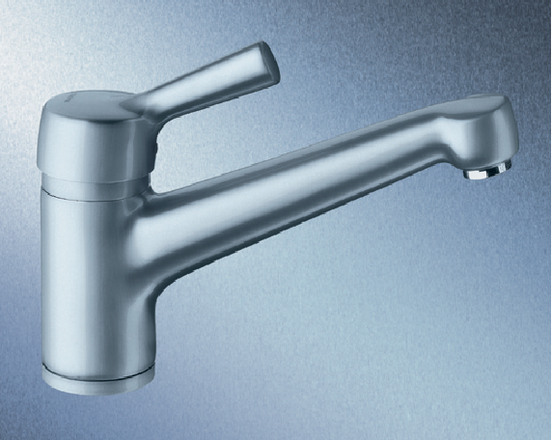

BLANCO ELIPSO, brass galvanic, stainless steel look, High Pressure

BLANCO ELIPSO, brass galvanic, stainless steel look, High Pressure

                    Article Number
                    511214


no longer available since 09/2003

Article-Version: Article also available in other versions!

BLANCO ELIPSO, brass galvanic, white, High Pressure

Added to Your Shopping Cart

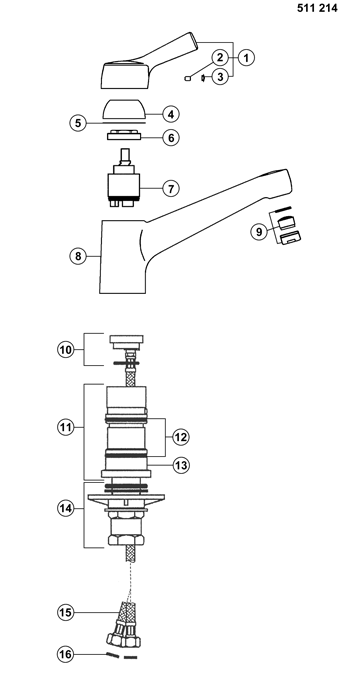

Spare Parts

Valid From	Name

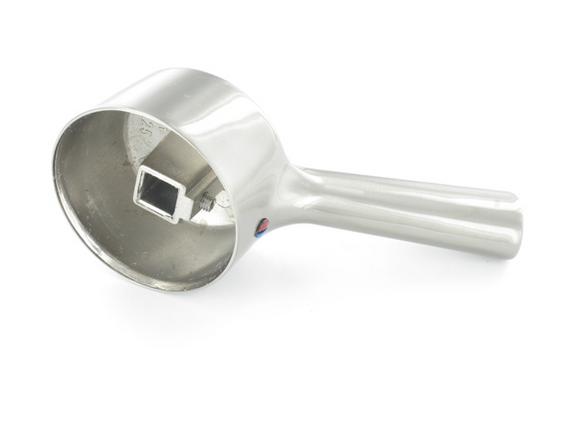

Position Number	1	Art. ID	126876	Valid From	02/1999	Name	Lever ELIPSO stainless steel optic complete, stainless steel look
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red HA
Position Number	4	Art. ID	126882	Valid From	02/1999	Name	Cover ring ELIPSO stainless steel optic HA
Position Number	5	Art. ID	139779	Valid From	02/1999	Name	Seal for cartridge cover ring HA
Position Number	6	Art. ID	125745	Valid From	02/1999	Name	Locknut cartridge ELIPSO, MIRA HA
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	7	Art. ID	123815	Valid From	02/1999	Name	Cartridge 40 mm HP open KE, blue, High Pressure
Position Number		Art. ID	122064	Valid From	02/1999	Name	BLANCO Cartridge 40 mm HP CT open (replaced by 123815), blue, High Pressure
Position Number		Art. ID	120875	Valid From	02/1999	Name	Cartridge HP 40 mm modified version blue KI (replaced by 122064), blue, High Pressure
Position Number		Art. ID	139322	Valid From	02/1999	Name	Cartridge HP ELIPSO modified version grey (replaced by 120875), grey, High Pressure
Position Number		Art. ID	125787	Valid From	02/1999	Name	Cartridge HP (replaced by 139322), green, High Pressure

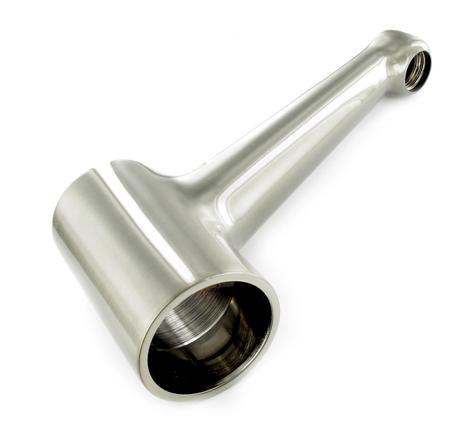

Position Number	8	Art. ID	127159	Valid From	02/1999	Name	Spout ELIPSO stainless steel optic HA
Position Number	9	Art. ID	117344	Valid From	02/1999	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	02/1999	Name	Jet regulator set HP chrome (replace by 117344) HA, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	02/1999	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	126331	Valid From	02/1999	Name	Jet regulator HP (replaced by 127840 or 117500) HA, High Pressure
Position Number		Art. ID	511324	Valid From	02/1999	Name	Key for jet regulator/-splitter (1 piece)

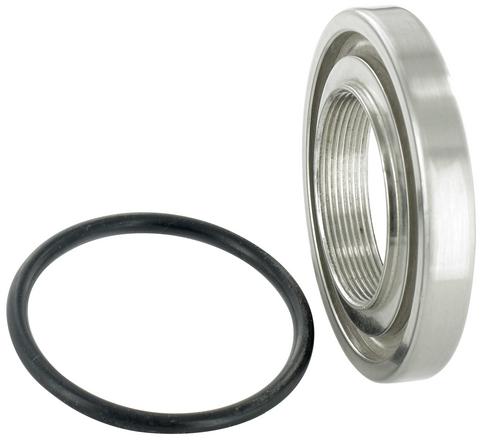

Position Number	10	Art. ID	126814	Valid From	02/1999	Name	Cartridge seat HP ARGON, ELIPSO, MIRA (metal)
Position Number		Art. ID	126319	Valid From	02/1999	Name	O-ring ARGON,ELIPSO,LAVA,MIRA 2.62 x 29.83
Position Number	11	Art. ID	126892	Valid From	02/1999	Name	Inner body ELIPSO + base stainless steel optic
Position Number	12	Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 X 42.86 (Ø~50 mm) HA
Position Number		Art. ID	126811	Valid From	02/1999	Name	V-ring inner body ELISPO (replaced by 126812)
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	13	Art. ID	126479	Valid From	02/1999	Name	Teflon ring ELIPSO, LAVA HA
Position Number	14	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number		Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle mixer taps BLANCO
Position Number	15	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) HA
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) HA
Position Number		Art. ID	121656	Valid From	02/1999	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	126492	Valid From	02/1999	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number		Art. ID	128923	Valid From	02/1999	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	16	Art. ID	117464	Valid From	02/1999	Name	Seal HA
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 (replaced by 117464) HA
Position Number	18	Art. ID	128713	Valid From	09/2003	Name	Base ELIPSO HP stainless steel optic
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
