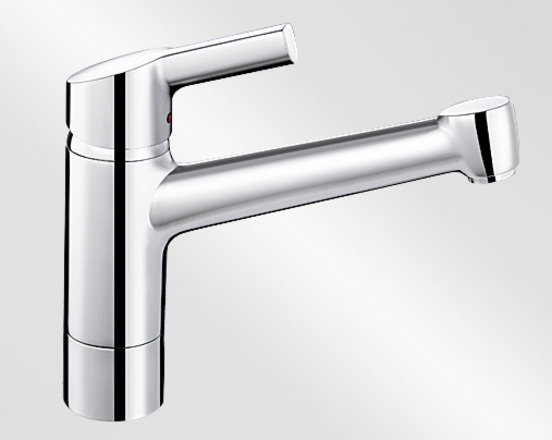

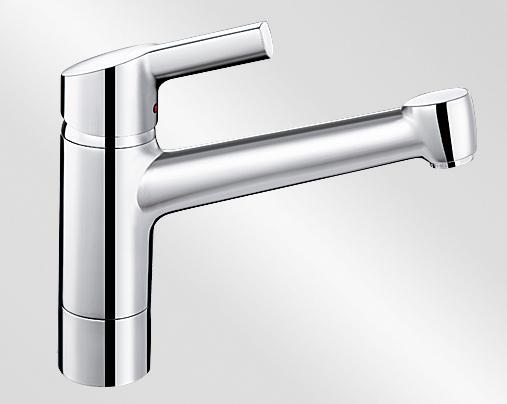

BLANCO ELIPSO-A II, brass galvanic, chrome, High Pressure

BLANCO ELIPSO-A II, brass galvanic, chrome, High Pressure

                    Article Number
                    514916


no longer available since 03/2014

Added to Your Shopping Cart

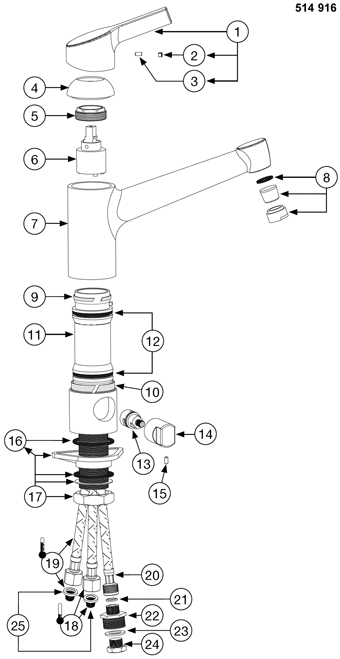

Spare Parts

Valid From	Name

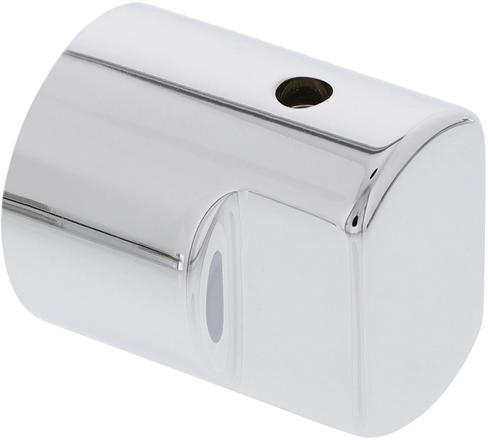

Position Number	1	Art. ID	117202	Valid From	01/2008	Name	Lever chrome, chrome
Position Number	2	Art. ID	125743	Valid From	01/2008	Name	Color cap lever blue/red
Position Number	3	Art. ID	119362	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2008	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2008	Name	Hex key SW 2.5 mm
Position Number	4	Art. ID	117203	Valid From	01/2008	Name	Cover ring chrome
Position Number	5	Art. ID	123287	Valid From	01/2008	Name	Cartridge lock nut
Position Number		Art. ID	139522	Valid From	01/2008	Name	Cartridge lock nut (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121894	Valid From	01/2008	Name	Kartusche HD Ø 35 mm, blue, High Pressure
Position Number		Art. ID	121896	Valid From	01/2008	Name	Kartusche HD Ø 35 mm (ersetzt durch 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2008	Name	Kartusche HD 35 mm (ersetzt durch 121894 oder 121896), blue, High Pressure
Position Number		Art. ID	139523	Valid From	01/2008	Name	Kartusche HD/ND 35 mm (ersetzt durch 118787-HD oder 116409-ND), blue, Low Pressure

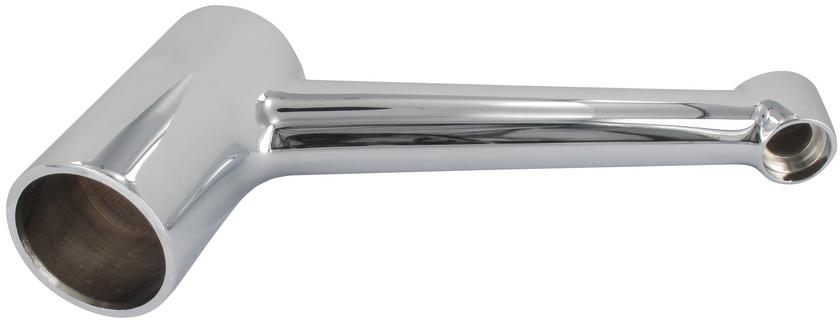

Position Number	7	Art. ID	117204	Valid From	01/2008	Name	Spout chrome
Position Number	8	Art. ID	117344	Valid From	01/2008	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	01/2008	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/2008	Name	Aerator/distributor key
Position Number	9	Art. ID	139537	Valid From	01/2008	Name	Teflon ring top
Position Number	10	Art. ID	139540	Valid From	01/2008	Name	Teflon ring bottom

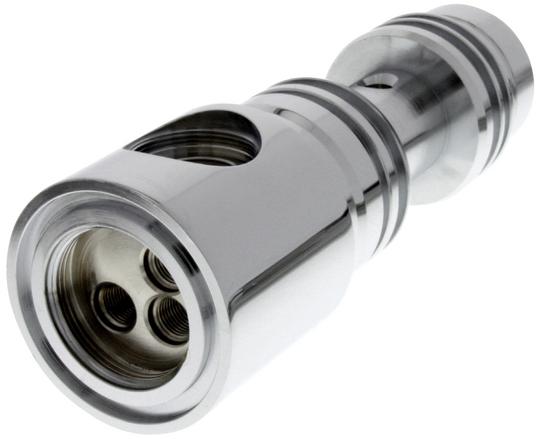

Position Number	11	Art. ID	117403	Valid From	01/2008	Name	Inner body
Position Number	12	Art. ID	139324	Valid From	01/2008	Name	O-Ring 3.53 x 41.28 mm (Ø 48 mm)
Position Number		Art. ID	117933	Valid From	01/2008	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2008	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	13	Art. ID	117391	Valid From	01/2008	Name	Absperrventil HD 20 mm, brass, High Pressure
Position Number	14	Art. ID	117392	Valid From	01/2008	Name	Turning handle, chrome
Position Number	15	Art. ID	117393	Valid From	01/2008	Name	Shut-off valve screw
Position Number	16	Art. ID	116521	Valid From	01/2008	Name	O-Ring 3.53 x 42.86 mm x Ø 50 mm
Position Number	17	Art. ID	127841	Valid From	01/2008	Name	Assembly set

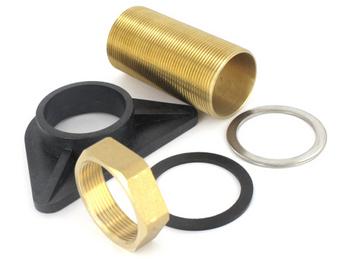

Position Number		Art. ID	117395	Valid From	01/2008	Name	Assembly set (replaced by 127841)
Position Number	18	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119684 (2 / C)	Valid From	03/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	126492 (2 / C)	Valid From	01/2008	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number	19	Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	128923 (2 / C)	Valid From	01/2008	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number	20	Art. ID	119786	Valid From	01/2008	Name	Connection hose 30 cm metal M15x1 x M10x1 with integrated gasket
Position Number		Art. ID	127913	Valid From	01/2008	Name	Flexible hose spray 42 cm metal M10x1 without gasket (replaced by 119786)
Position Number		Art. ID	125765	Valid From	01/2008	Name	Connection hose knurled nut 40 cm metal without gasket (replaced by 127913)
Position Number	21	Art. ID	126762	Valid From	01/2008	Name	Seal spray hose below 13.7 x 10 x 1.5 mm
Position Number	22	Art. ID	125804	Valid From	01/2008	Name	Connection nipple M15x1 x 0.75"
Position Number	23	Art. ID	126849	Valid From	01/2008	Name	Seal connector nipple
Position Number	24	Art. ID	125803	Valid From	01/2008	Name	Sealing plug
Position Number	25	Art. ID	118840 (3 / D)	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape (3 x 150 mm)
