BLANCO ELIPSO II, brass SILGRANIT-Look, anthracite, High Pressure

BLANCO ELIPSO II, brass SILGRANIT-Look, anthracite, High Pressure

                    Article Number
                    514898


no longer available since 03/2018

Article-Version: Article also available in other versions!

BLANCO ELIPSO II, brass SILGRANIT-Look, alu metallic, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	118033 (B)	Valid From	07/2009	Name	Lever ELIPSO II anthracite light 07/2009 HA, anthracite
Position Number		Art. ID	117238 (A)	Valid From	01/2008	Name	Lever ELIPSO II anthracite dark HA, anthracite
Position Number	2	Art. ID	119362	Valid From	01/2008	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	01/2008	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2008	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2008	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	01/2008	Name	Color cap lever blue/red HA
Position Number	4	Art. ID	118034 (B)	Valid From	07/2009	Name	Cover ring ELIPSO II anthracite light since 07/2009 HA
Position Number		Art. ID	117239 (A)	Valid From	01/2008	Name	Cover ring ELIPSO II anthracite dark HA
Position Number	5	Art. ID	123287	Valid From	01/2008	Name	Locknut cartridge VE
Position Number		Art. ID	139522	Valid From	01/2008	Name	Locknut cartridge HA (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121894	Valid From	01/2008	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	121896	Valid From	01/2008	Name	BLANCO Cartridge 35 mm HP CT (replaced by 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2008	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number		Art. ID	139523	Valid From	01/2008	Name	Cartridge HP/LP (replaced by 118787-HP or 116409-NP) KE HA, blue, Low Pressure

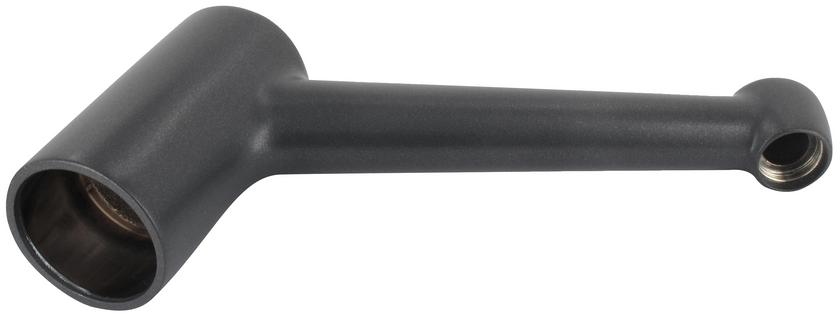

Position Number	7	Art. ID	118039 (B)	Valid From	07/2009	Name	Spout ELIPSO II anthracite light since 07/2009 HA
Position Number		Art. ID	117240 (A)	Valid From	01/2008	Name	Spout ELIPSO II anthracite dark HA
Position Number	8	Art. ID	117344	Valid From	01/2008	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	01/2008	Name	Jet regulator set HP chrome (replace by 117344) HA, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2008	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	139537	Valid From	01/2008	Name	Teflon ring top HA
Position Number	10	Art. ID	139324	Valid From	01/2008	Name	O-Ring 3.53 X 41.28 (Ø~48 mm) HA
Position Number		Art. ID	117933	Valid From	01/2008	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2008	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	11	Art. ID	117205	Valid From	01/2008	Name	Inner body ELIPSO II HA
Position Number	12	Art. ID	139540	Valid From	01/2008	Name	Teflon ring bottom HA
Position Number	13	Art. ID	117207	Valid From	01/2008	Name	Base ELIPSO II chrome HA
Position Number	14	Art. ID	116521	Valid From	01/2008	Name	O-ring 3,53 X 42,86 x Ø = 50 mm HA
Position Number	15	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	01/2008	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number	16	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) HA
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	126492	Valid From	01/2008	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number	17	Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) HA
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	128923	Valid From	01/2008	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	18	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number	19	Art. ID	126945	Valid From	01/2008	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape
