BLANCO ELIPSO II, brass SILGRANIT-Look, anthracite, Low pressure

BLANCO ELIPSO II, brass SILGRANIT-Look, anthracite, Low pressure

                    Article Number
                    514899


no longer available since 03/2018

Article-Version: Article also available in other versions!

BLANCO ELIPSO II, brass SILGRANIT-Look, alu metallic, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	118033 (B)	Valid From	07/2009	Name	Lever anthracite light, anthracite
Position Number		Art. ID	117238 (A)	Valid From	01/2008	Name	Lever anthracite dark, anthracite
Position Number	2	Art. ID	119362	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2008	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2008	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	01/2008	Name	Color cap lever blue/red
Position Number	4	Art. ID	118034 (B)	Valid From	07/2009	Name	Cover ring anthracite light from 07/2009
Position Number		Art. ID	117239 (A)	Valid From	01/2008	Name	Cover ring anthracite dark
Position Number	5	Art. ID	123287	Valid From	01/2008	Name	Cartridge lock nut
Position Number		Art. ID	139522	Valid From	01/2008	Name	Cartridge lock nut (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121491	Valid From	01/2008	Name	Kartusche ND 35 mm, blue, Low pressure
Position Number		Art. ID	120088	Valid From	01/2008	Name	Kartusche ND 35 mm (ersetzt durch 121491), blue, Low pressure
Position Number		Art. ID	116409	Valid From	01/2008	Name	Kartusche ND 35 mm (ersetzt durch 120088), grey, Low pressure
Position Number		Art. ID	139523	Valid From	01/2008	Name	Kartusche HD/ND 35 mm (ersetzt durch 118787-HD oder 116409-ND), blue, Low Pressure
Position Number	7	Art. ID	118039 (B)	Valid From	07/2009	Name	Spout anthracite light as of 07/2009
Position Number		Art. ID	117240 (A)	Valid From	01/2008	Name	Spout anthracite dark
Position Number	8	Art. ID	127397	Valid From	01/2008	Name	Jet splitter LP chrome OT M24x1, Low pressure Spareparts
Position Number		Art. ID	125829	Valid From	01/2008	Name	Jet splitter LP chrome OT M24x1 SW22 (replaced by 127397), Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/2008	Name	Aerator/distributor key
Position Number	9	Art. ID	139537	Valid From	01/2008	Name	Teflon ring top
Position Number	10	Art. ID	117400	Valid From	01/2008	Name	Inner body LP
Position Number	11	Art. ID	139324	Valid From	01/2008	Name	O-Ring 3.53 x 41.28 mm (Ø 48 mm)
Position Number		Art. ID	117933	Valid From	01/2008	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2008	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	12	Art. ID	139540	Valid From	01/2008	Name	Teflon ring bottom
Position Number	13	Art. ID	117207	Valid From	01/2008	Name	Base chrome
Position Number	14	Art. ID	116521	Valid From	01/2008	Name	O-Ring 3.53 x 42.86 mm x Ø 50 mm
Position Number	15	Art. ID	123182	Valid From	01/2019	Name	Assembly set
Position Number		Art. ID	125761	Valid From	01/2008	Name	Assembly set (replaced by 123182)
Position Number		Art. ID	117411	Valid From	01/2008	Name	Assembly set (replaced by 125761)
Position Number	16	Art. ID	121656	Valid From	01/2008	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	128923	Valid From	01/2008	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)

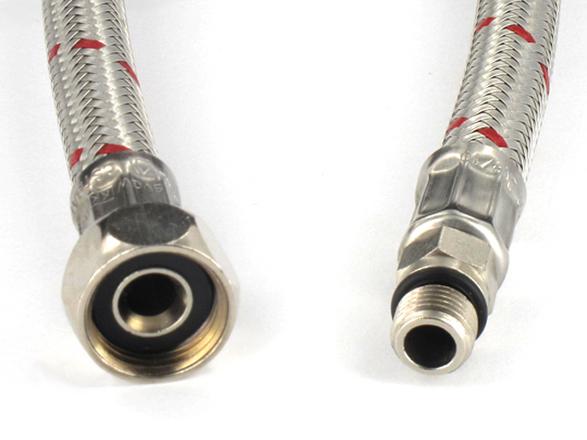

Position Number		Art. ID	117560	Valid From	01/2008	Name	Flexible hose 50 cm metal red with integrated gasket (replaced by 128923)
Position Number		Art. ID	126492	Valid From	01/2008	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	117466	Valid From	01/2008	Name	Flexible hose 50 cm metal with integrated gasket (replaced by 126492)
Position Number	17	Art. ID	126945	Valid From	01/2008	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	19	Art. ID	126493	Valid From	01/2008	Name	Flow limiter LP, yellow
Position Number	20	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape (3 x 150 mm)
