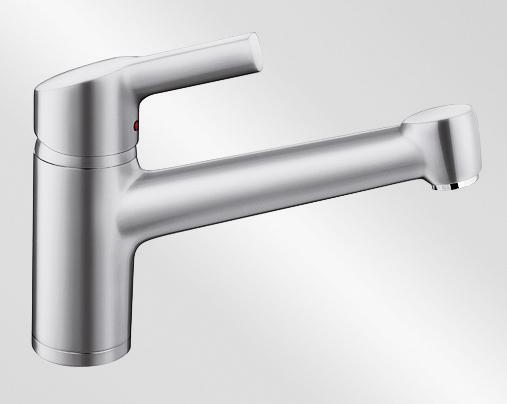

BLANCO ELIPSO II, brass galvanic, satin chrome, High Pressure

BLANCO ELIPSO II, brass galvanic, satin chrome, High Pressure

                    Article Number
                    514881


no longer available since 03/2014

Article-Version: Article also available in other versions!

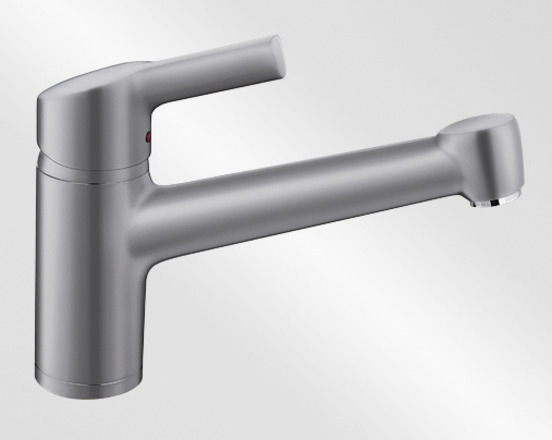

BLANCO ELIPSO II, brass galvanic, stainless steel finish, High Pressure

514882

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	117208	Valid From	01/2008	Name	Lever satin chrome, satin chrome
Position Number	2	Art. ID	119362	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	01/2008	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2008	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2008	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	01/2008	Name	Color cap lever blue/red
Position Number	4	Art. ID	117209	Valid From	01/2008	Name	Cover ring satin chrome
Position Number	5	Art. ID	123287	Valid From	01/2008	Name	Cartridge lock nut
Position Number		Art. ID	139522	Valid From	01/2008	Name	Cartridge lock nut (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121894	Valid From	01/2008	Name	Cartridge HP Ø 35 mm, blue, High Pressure
Position Number		Art. ID	121896	Valid From	01/2008	Name	Cartridge HP Ø 35 mm (replaced by 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2008	Name	Cartridge HP 35 mm (replaced by 121894 or 121896), blue, High Pressure
Position Number		Art. ID	139523	Valid From	01/2008	Name	Cartridge HP/LP 35 mm (replaced by 118787-HP or 116409-LP), blue, Low Pressure

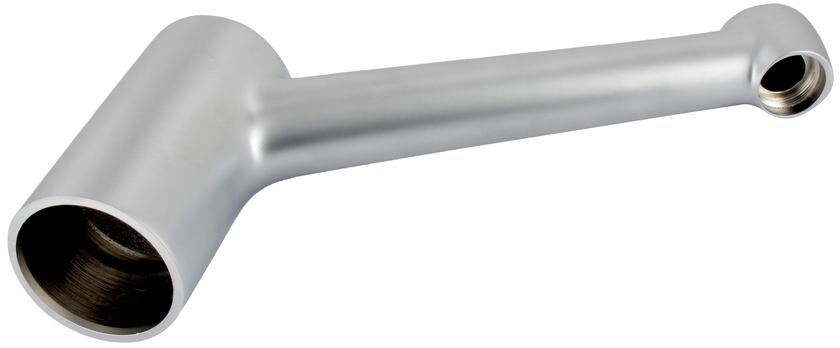

Position Number	7	Art. ID	117210	Valid From	01/2008	Name	Spout satin chrome
Position Number	8	Art. ID	117344	Valid From	01/2008	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	01/2008	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/2008	Name	Aerator/distributor key
Position Number	9	Art. ID	139537	Valid From	01/2008	Name	Teflon ring top
Position Number	10	Art. ID	139324	Valid From	01/2008	Name	O-Ring 3.53 x 41.28 mm (Ø 48 mm)
Position Number		Art. ID	117933	Valid From	01/2008	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2008	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	11	Art. ID	117205	Valid From	01/2008	Name	Inner body
Position Number	12	Art. ID	139540	Valid From	01/2008	Name	Teflon ring bottom
Position Number	13	Art. ID	117211	Valid From	01/2008	Name	Base satin chrome
Position Number	14	Art. ID	116521	Valid From	01/2008	Name	O-Ring 3.53 x 42.86 mm x Ø 50 mm
Position Number	15	Art. ID	123182	Valid From	01/2019	Name	Assembly set
Position Number		Art. ID	125761	Valid From	01/2008	Name	Assembly set (replaced by 123182)
Position Number	16	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	126492	Valid From	01/2008	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number	17	Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number		Art. ID	121656	Valid From	01/2008	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	128923	Valid From	01/2008	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number	18	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number	19	Art. ID	126945	Valid From	01/2008	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape (3 x 150 mm)
