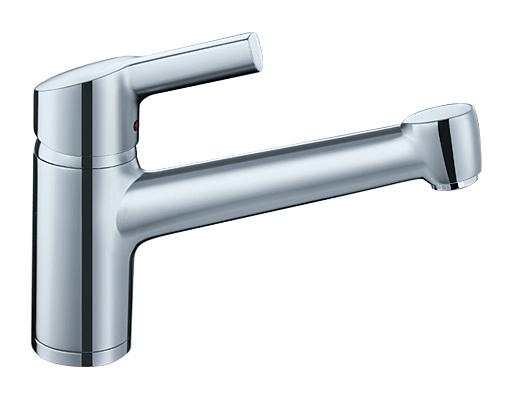

BLANCO ELIPSO II, brass galvanic, stainless steel finish, Low pressure

BLANCO ELIPSO II, brass galvanic, stainless steel finish, Low pressure

                    Article Number
                    514883


no longer available since 03/2015

Article-Version: Article also available in other versions!

BLANCO ELIPSO II, brass galvanic, chrome, Low pressure

514880

Added to Your Shopping Cart

Spare Parts

Valid From	Name

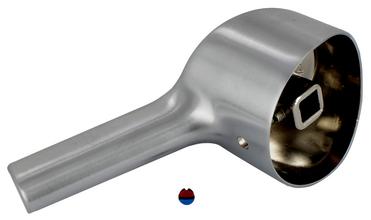

Position Number	1	Art. ID	117212	Valid From	01/2008	Name	Lever ELIPSO II stainless steel finish HA, stainless steel finish
Position Number	2	Art. ID	119362	Valid From	01/2008	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	01/2008	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2008	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2008	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	01/2008	Name	Color cap lever blue/red HA

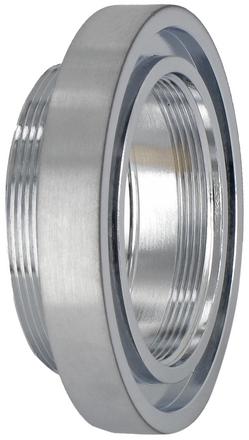

Position Number	4	Art. ID	117213	Valid From	01/2008	Name	Cover ring ELIPSO II stainless steel finish HA
Position Number	5	Art. ID	123287	Valid From	01/2008	Name	Locknut cartridge VE
Position Number		Art. ID	139522	Valid From	01/2008	Name	Locknut cartridge HA (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121491	Valid From	01/2008	Name	Cartridge LP 35 mm KE, blue, Low pressure
Position Number		Art. ID	120088	Valid From	01/2008	Name	Cartridge 35 mm LP KI (replaced by 121491), blue, Low pressure
Position Number		Art. ID	116409	Valid From	01/2008	Name	Cartridge ND Hydroplast (replaced by 120088), grey, Low pressure
Position Number		Art. ID	139523	Valid From	01/2008	Name	Cartridge HP/LP (replaced by 118787-HP or 116409-NP) KE HA, blue, Low Pressure

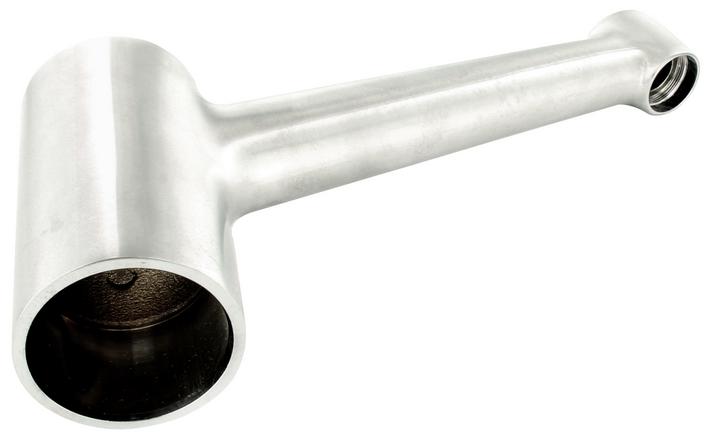

Position Number	7	Art. ID	117214	Valid From	01/2008	Name	Spout ELIPSO II stainless steel finish HA
Position Number	8	Art. ID	127397	Valid From	01/2008	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	125829	Valid From	01/2008	Name	Jet splitter set LP chrome (replace by 127397) HA, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2008	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	139537	Valid From	01/2008	Name	Teflon ring top HA
Position Number	10	Art. ID	117400	Valid From	01/2008	Name	Inner body ELIPSO II LP HA
Position Number	11	Art. ID	139324	Valid From	01/2008	Name	O-Ring 3.53 X 41.28 (Ø~48 mm) HA
Position Number		Art. ID	117933	Valid From	01/2008	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2008	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	12	Art. ID	139540	Valid From	01/2008	Name	Teflon ring bottom HA
Position Number	13	Art. ID	117215	Valid From	01/2008	Name	Base ELIPSO II stainless steel finish HA
Position Number	14	Art. ID	116521	Valid From	01/2008	Name	O-ring 3,53 X 42,86 x Ø = 50 mm HA
Position Number	15	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	01/2008	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number		Art. ID	117411	Valid From	01/2008	Name	Assembly set HA (replaced by 125761)
Position Number	16	Art. ID	121656	Valid From	01/2008	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2008	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	128923	Valid From	01/2008	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number		Art. ID	117560	Valid From	01/2008	Name	Flexible hose red with integrated seal 50 cm metal (replaced by128923) HA
Position Number		Art. ID	126492	Valid From	01/2008	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number		Art. ID	117466	Valid From	01/2008	Name	Flexible hose with integrated seal 50 cm metal (replaced by 126492) HA
Position Number	17	Art. ID	126945	Valid From	01/2008	Name	Stabilization triangle mixer taps BLANCO
Position Number	19	Art. ID	126493	Valid From	01/2008	Name	Flow limiter LP ARGON,ELIPSO,LAVA without seals HA, yellow
Position Number	20	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape
