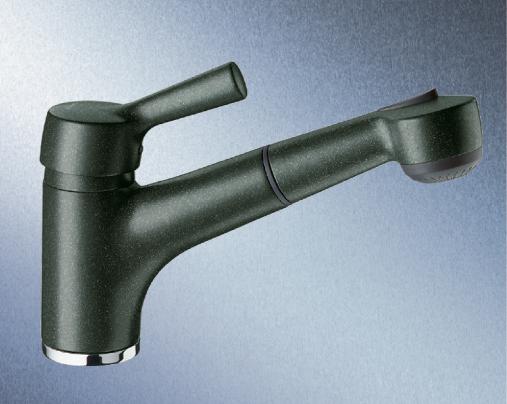

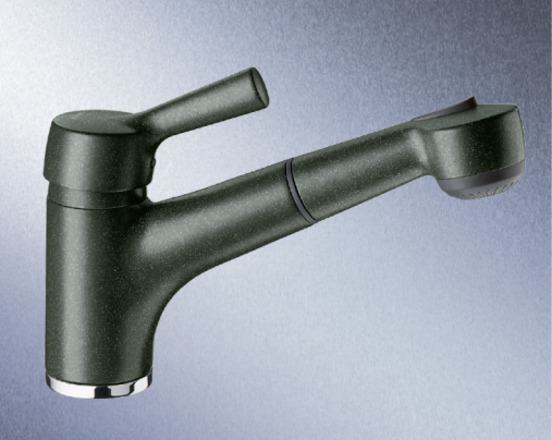

BLANCO ELIPSO-S, brass SILGRANIT-Look, green, High Pressure

BLANCO ELIPSO-S, brass SILGRANIT-Look, green, High Pressure

                    Article Number
                    511195


no longer available since 12/2007

Article-Version: Article also available in other versions!

BLANCO ELIPSO-S, brass SILGRANIT-Look, impala, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

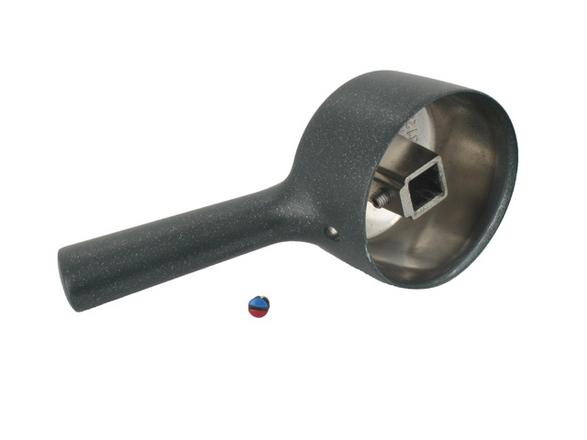

Position Number	1	Art. ID	126723	Valid From	02/1999	Name	Lever ELIPSO silgranit green HA, green
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red HA

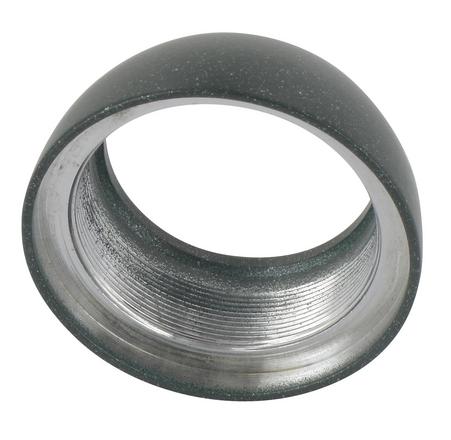

Position Number	4	Art. ID	126733	Valid From	02/1999	Name	Cover ring ELIPSO, MERKUR-S silgranit-green HA
Position Number		Art. ID	139779	Valid From	02/1999	Name	Seal for cartridge cover ring HA
Position Number	5	Art. ID	125745	Valid From	02/1999	Name	Locknut cartridge ELIPSO, MIRA HA
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	02/1999	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	121897	Valid From	02/1999	Name	BLANCO Cartridge 40 mm HP CT (replaced by 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	02/1999	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure
Position Number		Art. ID	139323	Valid From	02/1999	Name	Cartridge HP ELIPSO/-S modified version grey (replaced by 118788) HA, grey, High Pressure
Position Number		Art. ID	125746	Valid From	02/1999	Name	Cartridge HP (replaced by 139323), green, High Pressure

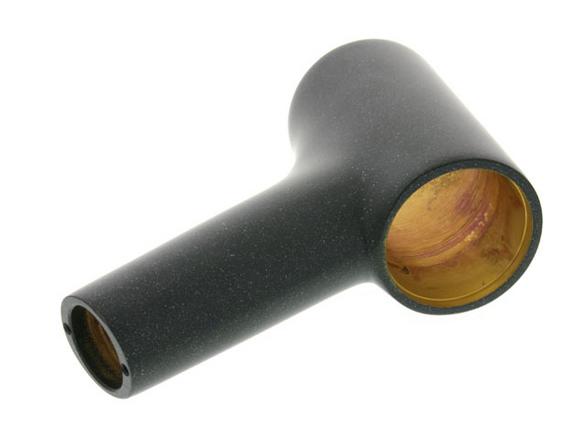

Position Number	7	Art. ID	126743	Valid From	02/1999	Name	Outer body ELIPSO-S Silgranit green HA
Position Number	8	Art. ID	126748	Valid From	02/1999	Name	Inner body + base ELIPSO-S chrome HA
Position Number	9	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number		Art. ID	126758	Valid From	02/1999	Name	Seal assembly set ARGON, ELIPSO (replaced by 125761 or 128721) HA
Position Number		Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126760	Valid From	02/1999	Name	Metal disc assemblyset (replaced by 125761 or 128721 or 116455 or 139544) HA
Position Number		Art. ID	126761	Valid From	02/1999	Name	Nut assembly set ARGON, ELIPSO (replaced by 125761)
Position Number	10	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) HA
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) HA
Position Number		Art. ID	121656	Valid From	02/1999	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	126492	Valid From	02/1999	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number		Art. ID	128923	Valid From	02/1999	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	11	Art. ID	119786	Valid From	02/1999	Name	Connection hose with seal 30 cm metal M15x1 x M10x1 NF + SO
Position Number		Art. ID	127913	Valid From	02/1999	Name	Flexible hose for spray hose without seal 42 cm metal M10x1 HA
Position Number		Art. ID	125765	Valid From	02/1999	Name	Connecting hose HP knurled nut 40 cm without seal 40 cm metal (replaced by 127913)HA
Position Number	12	Art. ID	126762	Valid From	02/1999	Name	Seal spray hose bottom 13,7x10x1,5 HA
Position Number	13	Art. ID	125763	Valid From	02/1999	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number	14	Art. ID	124881	Valid From	02/1999	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	02/1999	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707	Valid From	02/1999	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	125764	Valid From	02/1999	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number	15	Art. ID	126763	Valid From	02/1999	Name	Fitting piece spray head ELIPSO-S HA
Position Number	16	Art. ID	128383	Valid From	02/1999	Name	Seal with sieve spray hose top HA
Position Number		Art. ID	126764	Valid From	02/1999	Name	Seal spray hose top HA
Position Number	17	Art. ID	116576	Valid From	02/1999	Name	Non-return valve Ø 15 mm JW, beige
Position Number		Art. ID	125767	Valid From	02/1999	Name	Non-return valve Ø=15 mm HA (replaced by 116576), beige
Position Number	18	Art. ID	128741	Valid From	02/1999	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	125768	Valid From	02/1999	Name	Non-return valve blue in spray head (ersetzt durch 128741) HA, blue

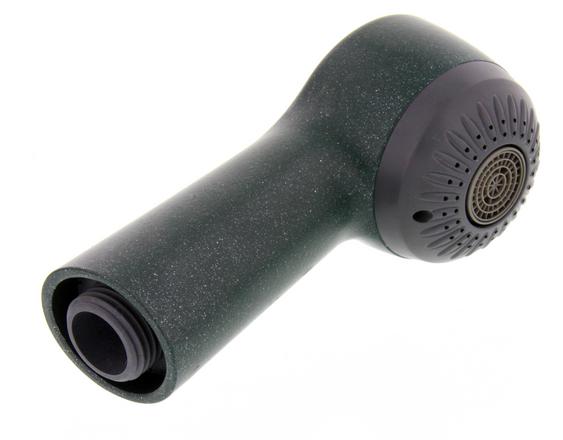

Position Number	19	Art. ID	126770	Valid From	02/1999	Name	Spray head ELIPSO-S HP silgranit green complete SILGRANIT-Look, green, High Pressure
Position Number	20	Art. ID	117500	Valid From	06/2006	Name	Insert jet regulator Cascade B, High Pressure
Position Number		Art. ID	126331	Valid From	02/1999	Name	Jet regulator HP (replaced by 127840 or 117500) HA, High Pressure
Position Number		Art. ID	117501	Valid From	06/2006	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number	21	Art. ID	128482	Valid From	02/1999	Name	Jet regulator+ jet disc ELIPSO-S key 128446 HP HA, High Pressure Spareparts
Position Number		Art. ID	117557	Valid From	02/1999	Name	O-ring for spray disk ELIPSO-S AG
Position Number		Art. ID	128446	Valid From	02/1999	Name	Key for spray disk ELIPSO-/MERKUR-S AG
Position Number	22	Art. ID	117464	Valid From	02/1999	Name	Seal HA
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 (replaced by 117464) HA
Position Number	23	Art. ID	116248	Valid From	02/1999	Name	Cartridge seat new metal (old: 126775) HA
Position Number	24	Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 X 42.86 (Ø~50 mm) HA
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	02/1999	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
