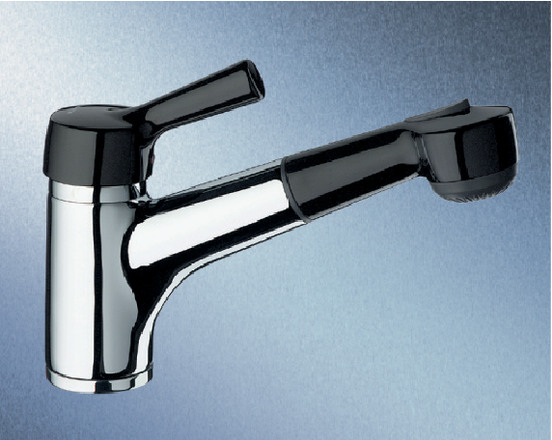

BLANCO ELIPSO-S, brass galvanic, black/chrome, Low pressure

BLANCO ELIPSO-S, brass galvanic, black/chrome, Low pressure

                    Article Number
                    511198


no longer available since 10/2002

Article-Version: Article also available in other versions!

BLANCO ELIPSO-S, brass galvanic, brown, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	126879	Valid From	02/1999	Name	Lever ELIPSO black, black
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red HA
Position Number	4	Art. ID	126881	Valid From	02/1999	Name	Cover ring ELIPSO chrome HA
Position Number	5	Art. ID	125745	Valid From	02/1999	Name	Locknut cartridge ELIPSO, MIRA HA
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121492	Valid From	01/1999	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	01/1999	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	02/1999	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure
Position Number		Art. ID	116611	Valid From	02/1999	Name	Cartridge ND since 5/2007 (replaced by 116646) HA, grey, Low pressure
Position Number		Art. ID	125818	Valid From	02/1999	Name	Cartridge LP (replaced by 116611), blue, Low pressure
Position Number	7	Art. ID	126896	Valid From	02/1999	Name	Outer body ELIPSO-S chrome HA
Position Number	8	Art. ID	126763	Valid From	02/1999	Name	Fitting piece spray head ELIPSO-S HA
Position Number	9	Art. ID	125763	Valid From	02/1999	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number	10	Art. ID	126764	Valid From	02/1999	Name	Seal spray hose top HA
Position Number	11	Art. ID	126909	Valid From	02/1999	Name	Spray head ELIPSO-S LP black complete galvanic, black, Low pressure
Position Number	12	Art. ID	123440	Valid From	07/2018	Name	Insert jet splitter LP with gasket NE, Low pressure
Position Number		Art. ID	117501	Valid From	02/1999	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	117463	Valid From	02/1999	Name	Insert jet splitter LP plastic with seal HA (replaced by 123440), Low pressure
Position Number	13	Art. ID	116076	Valid From	02/1999	Name	Jet disc, aerator + seals AG, Low pressure
Position Number		Art. ID	117557	Valid From	02/1999	Name	O-ring for spray disk ELIPSO-S AG
Position Number		Art. ID	128446	Valid From	02/1999	Name	Key for spray disk ELIPSO-/MERKUR-S AG
Position Number	14	Art. ID	116248	Valid From	02/1999	Name	Cartridge seat new metal (old: 126775) HA
Position Number		Art. ID	126775	Valid From	02/1999	Name	Cartridge seat ARGON-S,ELIPSO-S,MIRA-S (replaced by 116248)
Position Number	15	Art. ID	126789	Valid From	02/1999	Name	Flow limiter ELIPSO-S LP
Position Number	16	Art. ID	126748	Valid From	02/1999	Name	Inner body + base ELIPSO-S chrome HA
Position Number	17	Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 X 42.86 (Ø~50 mm) HA
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	18	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number	19	Art. ID	126777	Valid From	02/1999	Name	Seal assembly set ELIPSO-S LP HA
Position Number	20	Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle mixer taps BLANCO
Position Number	21	Art. ID	126760	Valid From	02/1999	Name	Metal disc assemblyset (replaced by 125761 or 128721 or 116455 or 139544) HA
Position Number	22	Art. ID	126761	Valid From	02/1999	Name	Nut assembly set ARGON, ELIPSO (replaced by 125761)
Position Number	23	Art. ID	121656	Valid From	02/1999	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	128923	Valid From	02/1999	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	24	Art. ID	126492	Valid From	02/1999	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number		Art. ID	126778	Valid From	02/1999	Name	Flexible hose mains supply with integrated seal 50 cm metal (replaced by 126492) HA
Position Number	25	Art. ID	117464	Valid From	02/1999	Name	Seal HA
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 (replaced by 117464) HA
Position Number	26	Art. ID	124881	Valid From	02/1999	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	02/1999	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707	Valid From	02/1999	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	125764	Valid From	02/1999	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number	27	Art. ID	126762	Valid From	02/1999	Name	Seal spray hose bottom 13,7x10x1,5 HA
Position Number	28	Art. ID	127281	Valid From	02/1999	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number		Art. ID	125827	Valid From	02/1999	Name	T-piece S LP ARGON, ELIPSO, MERKUR (replace by 127281) HA
Position Number	29	Art. ID	125822	Valid From	02/1999	Name	Non-return valve LP ARGON, ELIPSO,MERKUR
Position Number	30	Art. ID	116521	Valid From	02/1999	Name	O-ring 3,53 X 42,86 x Ø = 50 mm HA
Position Number		Art. ID	511920	Valid From	02/1999	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
