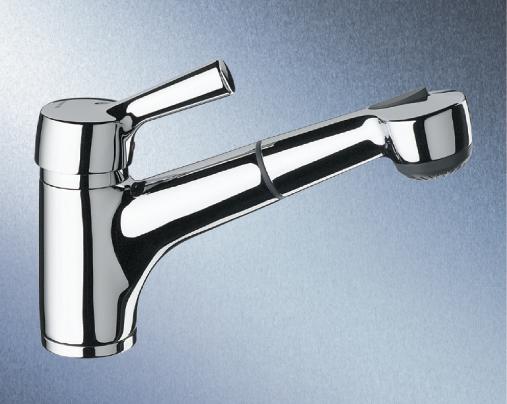

BLANCO ELIPSO-S, brass galvanic, chrome, High Pressure

BLANCO ELIPSO-S, brass galvanic, chrome, High Pressure

                    Article Number
                    511178


no longer available since 12/2008

Article-Version: Article also available in other versions!

BLANCO ELIPSO-S, brass galvanic, black/chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

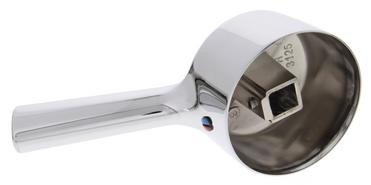

Position Number	1	Art. ID	126875	Valid From	02/1999	Name	Lever cobalt, chrome
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	02/1999	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red
Position Number	4	Art. ID	126881	Valid From	02/1999	Name	Cover ring chrome
Position Number		Art. ID	139779	Valid From	02/1999	Name	Seal cartridge cover ring
Position Number	5	Art. ID	125745	Valid From	02/1999	Name	Cartridge lock nut
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121895	Valid From	02/1999	Name	Kartusche HD Ø 40 mm, blue, High Pressure
Position Number		Art. ID	121897	Valid From	02/1999	Name	Kartusche HD Ø 40 mm (ersetzt durch 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	02/1999	Name	Kartusche HD 40 mm (ersetzt durch 121895 oder 121897), blue, High Pressure
Position Number		Art. ID	139323	Valid From	02/1999	Name	Kartusche HD 40 mm ELIPSO/-S geänderte Ausführung grau (ersetzt durch 118788), grey, High Pressure
Position Number		Art. ID	125746	Valid From	02/1999	Name	Kartusche HD 40 mm (ersetzt durch 139323), green, High Pressure
Position Number	7	Art. ID	126896	Valid From	02/1999	Name	Outer body chrome
Position Number	8	Art. ID	126748	Valid From	02/1999	Name	Inner body + base chrome
Position Number	9	Art. ID	123182	Valid From	01/2019	Name	Assembly set
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set (replaced by 123182)
Position Number		Art. ID	126758	Valid From	02/1999	Name	Seal Assembly set (replaced by 125761 or 128721)
Position Number		Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	126760	Valid From	02/1999	Name	Metal washer Assembly set (replaced by 125761 or 128721 or 116455 or 139544)
Position Number	10	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number		Art. ID	121656	Valid From	02/1999	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	126492	Valid From	02/1999	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	128923	Valid From	02/1999	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number	11	Art. ID	119786	Valid From	02/1999	Name	Connection hose 30 cm metal M15x1 x M10x1 with integrated gasket
Position Number		Art. ID	127913	Valid From	02/1999	Name	Flexible hose spray 42 cm metal M10x1 without gasket (replaced by 119786)
Position Number		Art. ID	125765	Valid From	02/1999	Name	Connection hose knurled nut 40 cm metal without gasket (replaced by 127913)
Position Number	12	Art. ID	126762	Valid From	02/1999	Name	Seal spray hose below 13.7 x 10 x 1.5 mm
Position Number	13	Art. ID	125763	Valid From	02/1999	Name	Spray hose 150 cm metal with gaskets and O-ring
Position Number	14	Art. ID	124881	Valid From	02/1999	Name	Weight (445g)
Position Number		Art. ID	123888	Valid From	02/1999	Name	Weight (420g) (replaced by 124881)
Position Number		Art. ID	125764	Valid From	02/1999	Name	Weight (260g) (replaced by 128707 or 123063)
Position Number		Art. ID	128707	Valid From	02/1999	Name	Weight (221g) Ø14 mm (replaced by 123888)
Position Number	15	Art. ID	126763	Valid From	02/1999	Name	Fitprewterg piece
Position Number	16	Art. ID	128383	Valid From	02/1999	Name	Seal with sieve spray hose top
Position Number		Art. ID	126764	Valid From	02/1999	Name	Seal spray hose above 20x12x2.5 mm
Position Number	17	Art. ID	116576	Valid From	02/1999	Name	Non-return valve Ø 15 mm, beige
Position Number		Art. ID	125767	Valid From	02/1999	Name	Non-return valve Ø 15 mm (replaced by 116576), beige
Position Number	18	Art. ID	128741	Valid From	02/1999	Name	Non-return valve Ø 14 mm, blue
Position Number		Art. ID	125768	Valid From	02/1999	Name	Non-return valve blue in shower head (replaced by 128741), blue
Position Number	19	Art. ID	126911	Valid From	02/1999	Name	Spray head HP chrome galvanic, chrome, High Pressure
Position Number	20	Art. ID	117500	Valid From	06/2006	Name	Insert jet regulator Cascade B, High Pressure
Position Number		Art. ID	126331	Valid From	02/1999	Name	Jet regulator HP OT SW22 (replaced by 127840 or 117500), High Pressure
Position Number		Art. ID	117501	Valid From	06/2006	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number	21	Art. ID	128482	Valid From	02/1999	Name	Jet regulator OT + disc + key 128446, High Pressure Spareparts
Position Number		Art. ID	117557	Valid From	02/1999	Name	O-Ring spray disc
Position Number		Art. ID	128446	Valid From	02/1999	Name	Aerator key
Position Number	22	Art. ID	117464	Valid From	02/1999	Name	Fiber seal
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 mm (replaced by 117464)
Position Number	23	Art. ID	116248	Valid From	02/1999	Name	Cartridge seat new metal (old: 126775)
Position Number	24	Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 x 42.86 mm (Ø 50 mm)
Position Number		Art. ID	117933	Valid From	02/1999	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	02/1999	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape (3 x 150 mm)
