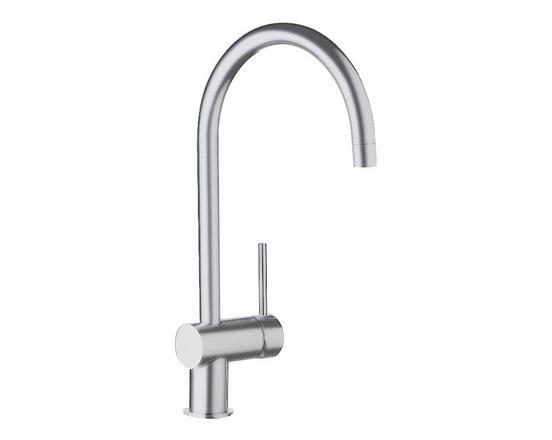

BLANCO FILO, brass galvanic, satin chrome, High Pressure

BLANCO FILO, brass galvanic, satin chrome, High Pressure

                    Article Number
                    512325


no longer available since 03/2016

Article-Version: Article also available in other versions!

BLANCO FILO, brass galvanic, chrome, High Pressure

512324

Added to Your Shopping Cart

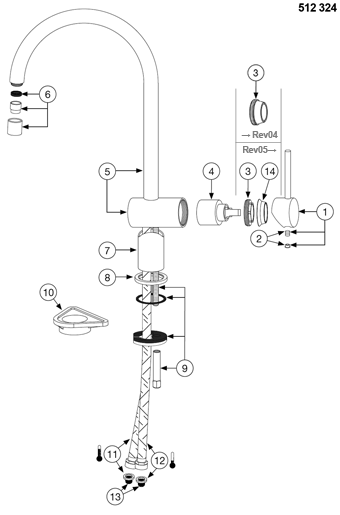

Spare Parts

Valid From	Name
Position Number	1	Art. ID	128613	Valid From	09/2002	Name	Lever satin chrome
Position Number	2	Art. ID	128929	Valid From	09/2002	Name	Screw 2.5 mm + color cap satin chrom
Position Number		Art. ID	139188	Valid From	09/2002	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	121448 (5 / F)	Valid From	02/2015	Name	Cartridge lock nut brass
Position Number		Art. ID	128615 (0 / A)	Valid From	09/2002	Name	Cartridge lock nut satin chrome (replaced by 121448 and 121450)
Position Number		Art. ID	139219 (0 / A)	Valid From	09/2002	Name	Universal key for cartridge cover ring
Position Number	4	Art. ID	121894	Valid From	09/2002	Name	Kartusche HD Ø 35 mm, blue, High Pressure
Position Number		Art. ID	118787	Valid From	09/2002	Name	Kartusche HD 35 mm (ersetzt durch 121894 oder 121896), blue, High Pressure
Position Number		Art. ID	128595	Valid From	09/2002	Name	Kartusche HD 35 mm (ersetzt durch 118787), black, High Pressure
Position Number		Art. ID	116243	Valid From	09/2002	Name	Kartusche HD 35 mm (ersetzt durch 128595), blue, High Pressure

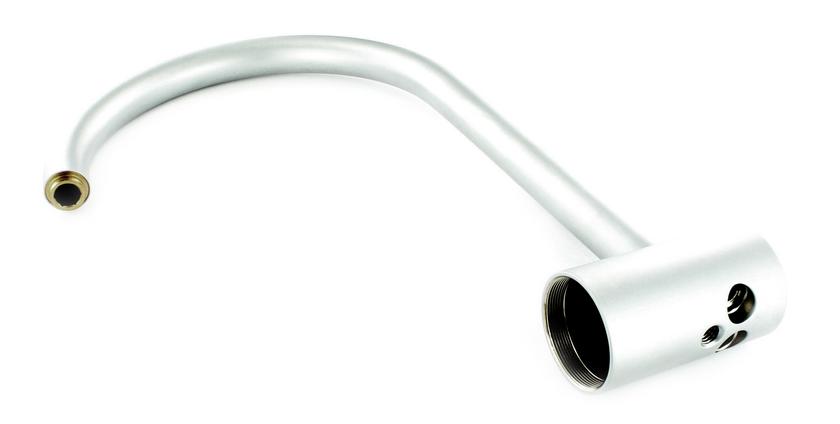

Position Number	5	Art. ID	128617	Valid From	09/2002	Name	Spout satin chrome
Position Number	6	Art. ID	128619	Valid From	09/2002	Name	Jet regulator HP satin chrome IT M16x1, High Pressure
Position Number	7	Art. ID	128758	Valid From	09/2002	Name	Base casing satin chrome
Position Number	8	Art. ID	128760	Valid From	09/2002	Name	Base satin chrome
Position Number	9	Art. ID	128620	Valid From	09/2002	Name	Assembly set
Position Number	10	Art. ID	126945	Valid From	09/2002	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	117184	Valid From	09/2002	Name	Stabilizing plate (replaced by 126945)
Position Number	11	Art. ID	123946	Valid From	06/2019	Name	Flexible hose 50 cm red 3/8" - M10x1
Position Number		Art. ID	123018	Valid From	09/2002	Name	Flexible hose 45 cm red 3/8" - M10x1 (replaced by 123946)
Position Number		Art. ID	119902	Valid From	09/2002	Name	Flexible hose 44 cm metal red M10x1 with filter gasket (replaced by 123018)
Position Number	12	Art. ID	123947	Valid From	09/2002	Name	Flexible hose 50 cm blue 3/8"- M10x1
Position Number		Art. ID	123019	Valid From	09/2002	Name	Flexible hose 45 cm blue 3/8"- M10x1 (replaced by 123947)
Position Number		Art. ID	119899	Valid From	09/2002	Name	Flexible hose 44 cm blue metal M10x1 with filter gasket (replaced by 123019)
Position Number		Art. ID	128621	Valid From	09/2002	Name	Flexible hoses 45 cm metal without gasket (2 pieces) (replaced by 119899 and 119902)
Position Number	13	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number		Art. ID	127401	Valid From	09/2002	Name	Fiber seal flex hose 3/8" (1 piece)
Position Number		Art. ID	139338	Valid From	09/2002	Name	Fiber seals flex hose (2 pieces) (replaced by 127401)
Position Number	14	Art. ID	121450 (5 / F)	Valid From	02/2015	Name	Cover ring satin chrome
Position Number		Art. ID	513383	Valid From	09/2002	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	09/2002	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	09/2002	Name	Flexible sealing tape (3 x 150 mm)
