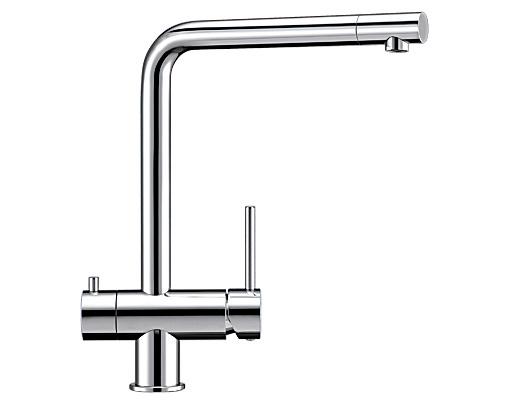

BLANCO FONTAS-A, brass galvanic, chrome, High Pressure

BLANCO FONTAS-A, brass galvanic, chrome, High Pressure

                    Article Number
                    515995


no longer available since 12/2011

Added to Your Shopping Cart

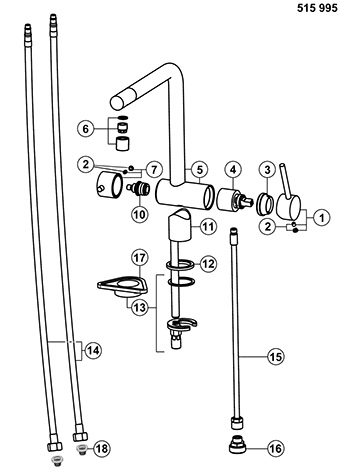

Spare Parts

Valid From	Name
Position Number	1	Art. ID	128612	Valid From	10/2008	Name	Lever FILO, FINESS, FONTAS chrome complete (lever altogether = 107 mm) NF
Position Number		Art. ID	120977	Valid From	10/2008	Name	Lever short chrome complete (lever altogether = 70 mm) NF, chrome
Position Number	2	Art. ID	128685	Valid From	10/2008	Name	Screw M5x4 wrench size = 2,5 mm + color cap chrome NF + SO
Position Number		Art. ID	139188	Valid From	10/2008	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	121448	Valid From	10/2008	Name	Locknut cartridge brass NF
Position Number		Art. ID	121449	Valid From	10/2008	Name	Cover ring chrome FILO, FINESS, FONTAS NF
Position Number		Art. ID	128614	Valid From	10/2008	Name	Locknut cartridge chrome NF (replaced by 121448 and 121449)
Position Number		Art. ID	139219	Valid From	10/2008	Name	Universal spanner for cartridge cover ring NF
Position Number	4	Art. ID	121894	Valid From	10/2008	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	118787	Valid From	10/2008	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number		Art. ID	128595	Valid From	10/2008	Name	Cartridge HP FONTAS-A Ø= 35 mm (replaced by 118787) NF, black, High Pressure

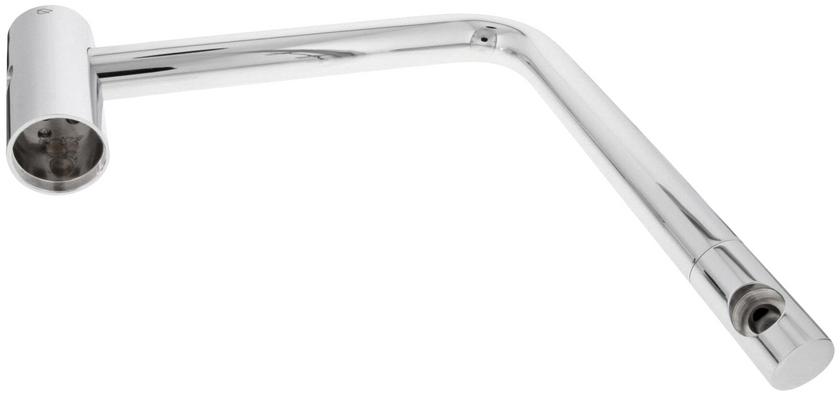

Position Number	5	Art. ID	117891	Valid From	10/2008	Name	Body + Spout FONTAS-A NF
Position Number	6	Art. ID	119271	Valid From	10/2008	Name	Jet regulator HP OT M18x1 AF17 chrome, High Pressure
Position Number		Art. ID	119977	Valid From	10/2008	Name	Jet regulator set HP chrome BL (MZ) (replaced by 119271), High Pressure
Position Number		Art. ID	117892	Valid From	10/2008	Name	Jet regulator set HP chrome NF (replace by 119977), High Pressure
Position Number		Art. ID	117600	Valid From	10/2008	Name	Universal service-key for aerators
Position Number	7	Art. ID	117881	Valid From	10/2008	Name	Turning handle chrome complete NF, chrome

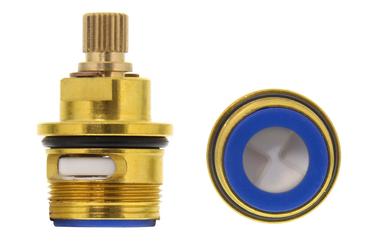

Position Number	10	Art. ID	122672	Valid From	10/2008	Name	Valve FILO-A, FINESS-A, FONTAS-A NF, brass, High Pressure
Position Number	11	Art. ID	117882	Valid From	10/2008	Name	Body casing FONTAS-A chrome NF
Position Number	12	Art. ID	128759	Valid From	10/2008	Name	Base FILO, FINESS, FONTAS chrome NF
Position Number	13	Art. ID	117174	Valid From	10/2008	Name	Assembly set inclusive stabilizing plate NF
Position Number	14	Art. ID	123936	Valid From	10/2008	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M8x1 NE
Position Number		Art. ID	119375	Valid From	10/2008	Name	Flexible hose red with gasket/mud guard 65 cm metal M8x1 BL (NF+SO) (replaced by 123936)
Position Number		Art. ID	123937	Valid From	10/2008	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M8x1 NE
Position Number		Art. ID	119374	Valid From	10/2008	Name	Flexible hose blue with gasket/mud guard 65 cm metal M8x1 BL (NF+SO) (replaced by 123937)
Position Number		Art. ID	128906	Valid From	10/2008	Name	Flexible hose (2 pieces) with integrated seal 65 cm metal (replaced by 119374 and 119375) NF
Position Number	15	Art. ID	117883	Valid From	10/2008	Name	Connection pipe chrome 31 cm metal NF
Position Number	16	Art. ID	117884	Valid From	10/2008	Name	Connection nipple with seal AG 3/4" and AG M 15x1NF
Position Number	17	Art. ID	126945	Valid From	10/2008	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	117184	Valid From	10/2008	Name	Stabilising plate (replaced by 126945) NF
Position Number	18	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	10/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2008	Name	Flexible sealing tape
