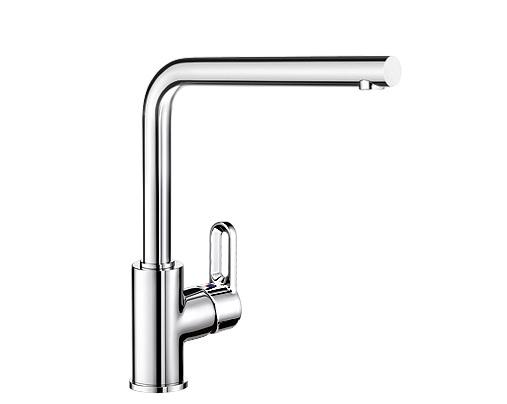

BLANCO LADIS HD, brass galvanic, chrome, High Pressure

BLANCO LADIS HD, brass galvanic, chrome, High Pressure

                    Article Number
                    519616


no longer available since 12/2015

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	120393	Valid From	10/2013	Name	Jet regulator HP chrome OT M20x1 SW19, High Pressure
Position Number	2	Art. ID	121894	Valid From	10/2013	Name	Cartridge HP Ø 35 mm, blue, High Pressure
Position Number		Art. ID	118787	Valid From	10/2013	Name	Cartridge HP 35 mm (replaced by 121894 or 121896), blue, High Pressure
Position Number	3	Art. ID	118840	Valid From	10/2013	Name	Screen filter seal ⅜'' angle valve
Position Number	4	Art. ID	123946	Valid From	10/2013	Name	Flexible hose 50 cm red ⅜'' - M10x1
Position Number		Art. ID	123018	Valid From	10/2013	Name	Flexible hose 45 cm red ⅜'' - M10x1 (replaced by 123946)
Position Number		Art. ID	123947	Valid From	10/2013	Name	Flexible hose 50 cm blue ⅜''- M10x1
Position Number		Art. ID	123019	Valid From	10/2013	Name	Flexible hose 45 cm blue ⅜''- M10x1 (replaced by 123947)
Position Number		Art. ID	120377	Valid From	10/2013	Name	Flexible hose 35 cm metal without gasket M10x1 (replaced by 123018 and 123019)
Position Number	5	Art. ID	122450	Valid From	10/2013	Name	Assembly set including base + seal
Position Number		Art. ID	126945	Valid From	10/2013	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	6	Art. ID	124159	Valid From	10/2013	Name	Cover ring chrome + cartridge locking nut M37x1.5
Position Number	7	Art. ID	122555	Valid From	10/2013	Name	Seal set + phillips screw M5 + cap
Position Number	8	Art. ID	122727	Valid From	10/2013	Name	Lever chrome, chrome
Position Number		Art. ID	513383	Valid From	10/2013	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2013	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2013	Name	Flexible sealing tape (3 x 150 mm)
