BLANCO LEVOS-S, Stainless steel solid, stainless steel satin matt, High Pressure

BLANCO LEVOS-S, Stainless steel solid, stainless steel satin matt, High Pressure

                    Article Number
                    514919


no longer available since 03/2019

Article-Version: Article also available in other versions!

BLANCO LEVOS-S, Stainless steel solid, stainless steel satin polish, High Pressure

514918

Added to Your Shopping Cart

Spare Parts

Valid From	Name

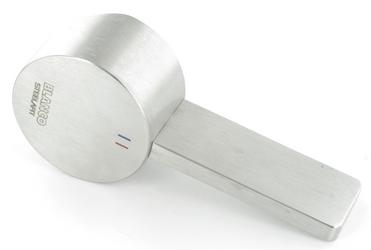

Position Number	1	Art. ID	117797	Valid From	01/2009	Name	Lever LEVOS-S stainless steel brushed finish, stainless steel satin matt
Position Number	2	Art. ID	116803	Valid From	01/2009	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	01/2009	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	01/2009	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	01/2009	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	117286	Valid From	01/2009	Name	Cap on lever MZ

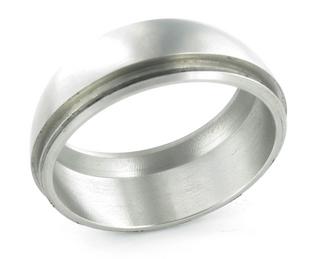

Position Number	4	Art. ID	117798	Valid From	01/2009	Name	Cover ring LEVOS-S stainless steel brushed finish
Position Number	5	Art. ID	117772	Valid From	01/2009	Name	Lock ring cartridge MZ
Position Number	6	Art. ID	121894	Valid From	01/2009	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	121896	Valid From	01/2009	Name	BLANCO Cartridge 35 mm HP CT (replaced by 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2009	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number		Art. ID	126923	Valid From	01/2009	Name	Cartridge HP (replaced by 118787), blue, High Pressure

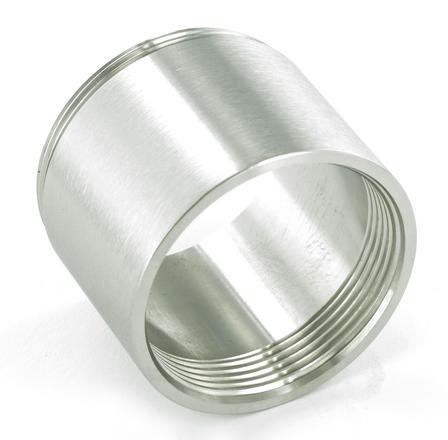

Position Number	7	Art. ID	117799	Valid From	01/2009	Name	Cover cylinder LEVOS-S stainless steel brushed finish

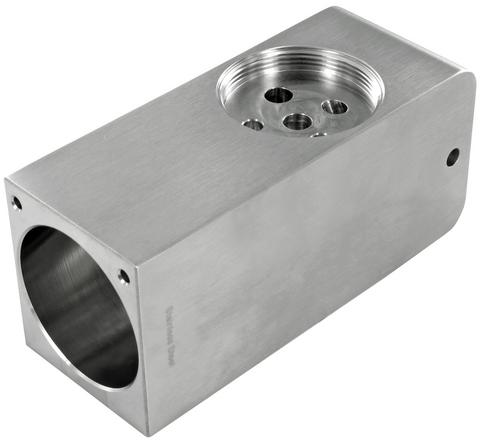

Position Number	8	Art. ID	117800	Valid From	01/2009	Name	Body LEVOS-S stainless steel brushed finish
Position Number	9	Art. ID	117776	Valid From	01/2009	Name	Plastic ring LEVOS-S MZ
Position Number	10	Art. ID	119543 (6 / G)	Valid From	05/2011	Name	Base LEVOS-S brushed finish centric revision 06 MZ
Position Number		Art. ID	117801 (0 / A)	Valid From	01/2009	Name	Base LEVOS-S stainless steel brushed finish with fixation pins eccentric
Position Number	11	Art. ID	117778	Valid From	01/2009	Name	Seal base LEVOS-S MZ
Position Number	12	Art. ID	117851	Valid From	01/2009	Name	Locking screw PINOS, ELOS, LEVOS-S, YOVIS, YOVIS-S MZ
Position Number		Art. ID	117779	Valid From	01/2009	Name	Locking screw for outlet LEVOS-S (replaced by 117851) MZ
Position Number		Art. ID	139189	Valid From	01/2009	Name	Box spanner hex key AF 2 mm
Position Number	13	Art. ID	118092	Valid From	01/2009	Name	Fitting piece spray head LEVOS-S MZ
Position Number	14	Art. ID	117780	Valid From	01/2009	Name	Hose guide LEVOS-S MZ
Position Number	15	Art. ID	117781	Valid From	01/2009	Name	Set of rings LEVOS-S MZ
Position Number		Art. ID	117933	Valid From	01/2009	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2009	Name	Grease for mixer tap 5g Berulub Sihaf 2

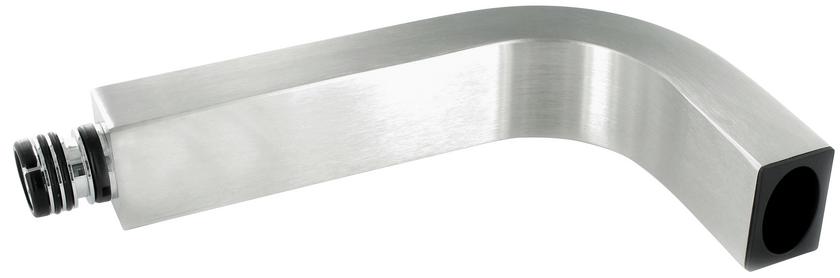

Position Number	16	Art. ID	117802	Valid From	01/2009	Name	Spout LEVOS-S stainless steel brushed finish complete
Position Number	17	Art. ID	117783	Valid From	01/2009	Name	Spray hose with seals LEVOS-S 150 cm metal MZ
Position Number	18	Art. ID	117784	Valid From	01/2009	Name	Seal spray hose top LEVOS-S MZ
Position Number	19	Art. ID	117803	Valid From	01/2009	Name	Spray head LEVOS-S stainless steel brushed finish satin matt, stainless steel satin matt, High Pressure
Position Number	20	Art. ID	118874	Valid From	01/2009	Name	Jet regulator set HP stainless steel brushed finish Smart Lime Cleaning MZ, High Pressure Spareparts
Position Number		Art. ID	117502	Valid From	01/2009	Name	Seal for jet regulator 16.0 x 20.8 x 1.48 mm
Position Number		Art. ID	511324	Valid From	01/2009	Name	Key for jet regulator/-splitter (1 piece)
Position Number	21	Art. ID	117787	Valid From	01/2009	Name	O-ring for spray head LEVOS-S MZ
Position Number	22	Art. ID	126945	Valid From	01/2009	Name	Stabilization triangle mixer taps BLANCO
Position Number	23	Art. ID	127275	Valid From	01/2009	Name	Thread rod ORION-S, PALLAS-S
Position Number	24	Art. ID	127274	Valid From	01/2009	Name	O-ring threaded pipe ORION, PALLAS MZ
Position Number	25	Art. ID	119883	Valid From	01/2011	Name	Assembly set inclusive gasket/mud guard MZ
Position Number		Art. ID	116400	Valid From	01/2009	Name	Assembly set ORION-S, PALLAS-S MZ
Position Number	26	Art. ID	117788	Valid From	01/2009	Name	Non-return valve set complete IT M15x1 and IT M10x1 MZ
Position Number	27	Art. ID	123063	Valid From	01/2009	Name	Weight for shower hose (200g) AV
Position Number		Art. ID	125764	Valid From	01/2009	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number		Art. ID	117789	Valid From	01/2009	Name	Weight (195g) (replaced by 125764) MZ
Position Number	28	Art. ID	123949	Valid From	01/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119564	Valid From	01/2011	Name	Flexible hose HP blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) MZ
Position Number		Art. ID	116379	Valid From	01/2009	Name	Flexible hose HP blue with integrated seal 50 cm metal (replaced by 119564) MZ
Position Number	29	Art. ID	123948	Valid From	01/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119417	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119562	Valid From	01/2011	Name	Flexible hose HP red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) MZ
Position Number		Art. ID	116380	Valid From	01/2009	Name	Flexible hose HP red with integrated seal 50 cm metal (replaced by 119562) MZ
Position Number	30	Art. ID	118840 (5 / F)	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	01/2009	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2009	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/2009	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/2009	Name	Flexible sealing tape
