BLANCO LINUS, brass SILGRANIT-Look, champagne, High Pressure

BLANCO LINUS, brass SILGRANIT-Look, champagne, High Pressure

                    Article Number
                    516704


ATTENTION! Position of lever was changed to cold-start. Please check warm and cold mark on lever to specify correct part.
no longer available since 01/2020

Article-Version: Article also available in other versions!

BLANCO LINUS, brass SILGRANIT-Look, anthracite, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	123478 (9 / J)	Valid From	03/2018	Name	Lever champagne, champagne
Position Number		Art. ID	118243 (0 / A)	Valid From	10/2009	Name	Lever champagne, champagne
Position Number	2	Art. ID	128685	Valid From	10/2009	Name	Hexagon socket screw M5x4 SW 2.5 mm + chrome color cap
Position Number		Art. ID	139188	Valid From	10/2009	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	120909 (6 / G)	Valid From	07/2013	Name	Cartridge lock nut including O-ring
Position Number		Art. ID	116373 (0 / A)	Valid From	10/2009	Name	Cartridge lock nut chrome (replaced by 120909 and 120910)
Position Number		Art. ID	139219	Valid From	10/2009	Name	Universal key for cartridge cover ring
Position Number	4	Art. ID	121894	Valid From	10/2009	Name	Kartusche HD Ø 35 mm, blue, High Pressure
Position Number		Art. ID	118787	Valid From	10/2009	Name	Kartusche HD 35 mm (ersetzt durch 121894 oder 121896), blue, High Pressure
Position Number		Art. ID	128595	Valid From	10/2009	Name	Kartusche HD 35 mm (ersetzt durch 118787), black, High Pressure
Position Number	5	Art. ID	139945	Valid From	10/2009	Name	O-Ring set spout
Position Number		Art. ID	117933	Valid From	10/2009	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2009	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	6	Art. ID	120241	Valid From	10/2009	Name	Connection piece spout brass
Position Number	7	Art. ID	139946	Valid From	10/2009	Name	Locking screw spout tapered

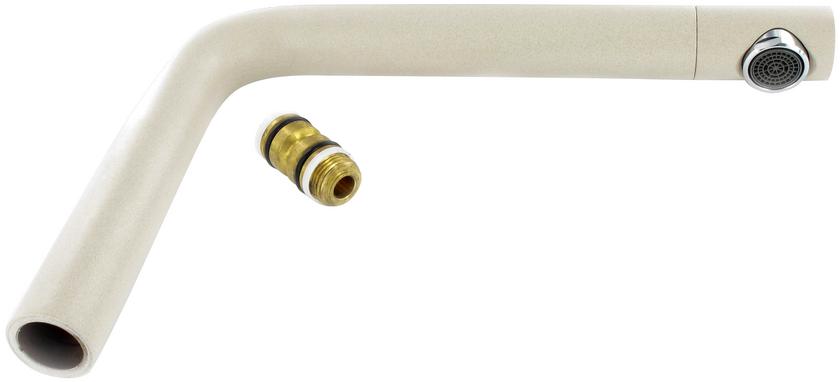

Position Number	8	Art. ID	118244	Valid From	10/2009	Name	Spout champagne
Position Number	9	Art. ID	117344	Valid From	10/2009	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	128598	Valid From	10/2009	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2009	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	10/2009	Name	Aerator/distributor key
Position Number	10	Art. ID	118245	Valid From	10/2009	Name	Base casing champagne
Position Number	11	Art. ID	128701	Valid From	10/2009	Name	Base chrome with 5 mm collar
Position Number	12	Art. ID	126945	Valid From	10/2009	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	13	Art. ID	118227	Valid From	10/2009	Name	Assembly set
Position Number	14	Art. ID	123936	Valid From	10/2009	Name	Flexible hose 70 cm red 3/8" - M8x1
Position Number		Art. ID	119375	Valid From	10/2009	Name	Flexible hose 65 cm metal red M8x1 with filter gasket (replaced by 123936)
Position Number	15	Art. ID	123937	Valid From	10/2009	Name	Flexible hose 70 cm blue 3/8" - M8x1
Position Number		Art. ID	119374	Valid From	10/2009	Name	Flexible hose 65 cm metal blue M8x1 with filter gasket (replaced by 123937)
Position Number	16	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number		Art. ID	127401	Valid From	10/2009	Name	Fiber seal flex hose 3/8" (1 piece)
Position Number		Art. ID	139338	Valid From	10/2009	Name	Fiber seals flex hose (2 pieces) (replaced by 127401)
Position Number		Art. ID	116408	Valid From	10/2009	Name	Seal flex hose (replaced by 139338)
Position Number	17	Art. ID	120910 (6 / G)	Valid From	07/2013	Name	Cover ring chrome
Position Number		Art. ID	513383	Valid From	10/2009	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2009	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2009	Name	Flexible sealing tape (3 x 150 mm)
