BLANCO PALLAS, brass SILGRANIT-Look, green, High Pressure

BLANCO PALLAS, brass SILGRANIT-Look, green, High Pressure

                    Article Number
                    511286


Mixer tap available from 01.02.1999 until 31.12.1999!
no longer available since 12/1999

Article-Version: Article also available in other versions!

BLANCO PALLAS (Mix 2030), brass SILGRANIT-Look, white, High Pressure

Added to Your Shopping Cart

Spare Parts

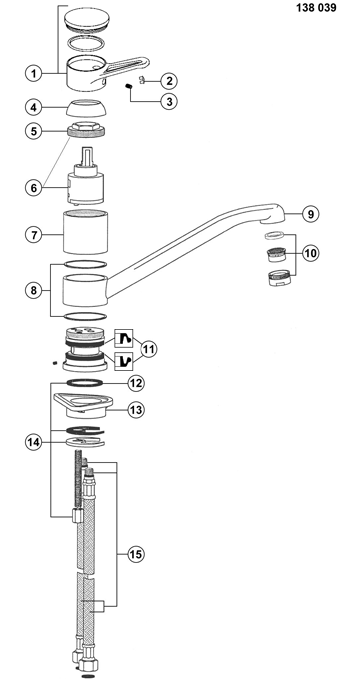

Valid From	Name
Position Number	1	Art. ID	126583	Valid From	02/1999	Name	Cover for lever PALLAS silgranit-green NB, green
Position Number		Art. ID	126131	Valid From	02/1999	Name	O-ring cover PALLAS NB
Position Number		Art. ID	126132	Valid From	02/1999	Name	Locking screw NB
Position Number		Art. ID	126596	Valid From	02/1999	Name	Lever PALLAS silgranit-green NB, green
Position Number	2	Art. ID	126133	Valid From	02/1999	Name	Color cap lever PALLAS blue/red NB
Position Number	3	Art. ID	119362	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	5	Art. ID	126110	Valid From	02/1999	Name	Locknut cartridge PALLAS NB
Position Number	6	Art. ID	126111	Valid From	02/1999	Name	Cartridge set HP PALLAS/-S,ACTIS/-S with two counter-nuts, black, High Pressure
Position Number		Art. ID	139031	Valid From	02/1999	Name	Cartridge HP PALLAS with brass nut (replaced by 126111), black, High Pressure
Position Number		Art. ID	139781	Valid From	02/1999	Name	Cartridge HP (replaced by 126111), grey, High Pressure
Position Number	8	Art. ID	126189	Valid From	02/1999	Name	Teflon ring PALLAS NB
Position Number	10	Art. ID	117344	Valid From	02/1999	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	02/1999	Name	Jet regulator set HP OT M24x1 AF22 chrome (replace by 117344) NE, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	02/1999	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	02/1999	Name	Key for jet regulator/-splitter (1 piece)
Position Number	11	Art. ID	126165	Valid From	02/1999	Name	Body seal PALLAS NB
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	12	Art. ID	126164	Valid From	02/1999	Name	Assembly ring PALLAS HP rubber NB
Position Number	14	Art. ID	119565	Valid From	02/1999	Name	Assembly set inclusive gasket/mud guard MZ
Position Number		Art. ID	126174	Valid From	02/1999	Name	Assembly set PALLAS until 12/1999 (replaced by 119565) NB

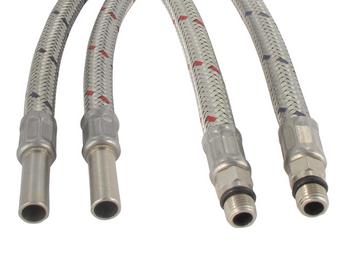

Position Number	15	Art. ID	126175	Valid From	02/1999	Name	Flexible hose without nut, 1 pair, 35 cm metal M10x1 NB
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
