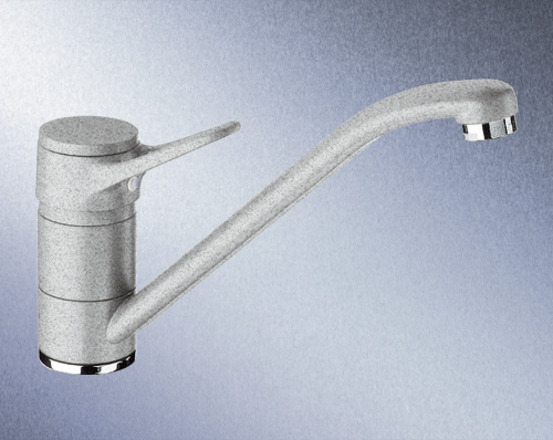

BLANCO PALLAS, brass SILGRANIT-Look, greystone, Low pressure
Article Number 512242
Mixer tap available from 01.09.2002 until 30.09.2009!
no longer available since 09/2009
1 128991 09/2002 Lever greystone
2 126959 09/2002 Color cap lever
3 116803 09/2002 Screw lever M5x6 hexagon socket 2.5 mm
116503 09/2002 Screw lever M5x6 conical 2.5 mm (replaced by 116803)
126960 09/2002 Screw lever (replaced by 116503)
139188 09/2002 Hex key SW 2.5 mm

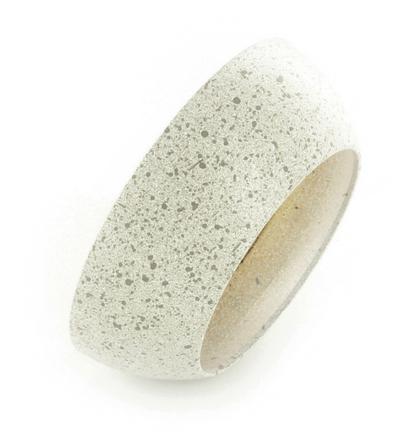

4 128996 09/2002 Cover ring greystone
5 127375 09/2002 Cartridge lock nut
127433 09/2002 Cartridge spannerhex SW 30 mm and 36 mm
6 121492 09/2002 Kartusche ND 40 mm, blue, Low pressure
120089 09/2002 Kartusche ND 40 mm (ersetzt durch 121492), blue, Low pressure
116646 09/2002 Kartusche ND 40 mm (ersetzt durch 120089), grey, Low pressure
127247 09/2002 Kartusche ND 40 mm (ersetzt durch 116646), blue, Low pressure

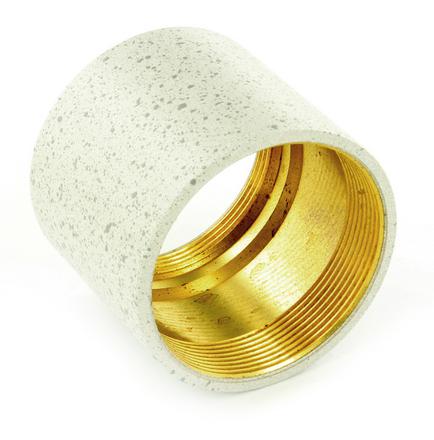

7 128997 09/2002 Cover cylinder greystone
8 127386 09/2002 Teflon ring

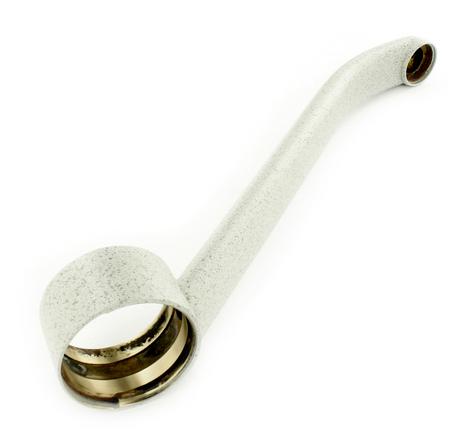

9 128998 09/2002 Spout greystone
10 127397 09/2002 Jet splitter LP chrome OT M24x1, Low pressure

Spareparts
117501 09/2002 Seal aerator TT 11.0 x 15.0 x 1.5 mm
511324 09/2002 Aerator/distributor key
11 127398 09/2002 Body seal
128679 09/2002 Lip seal modified version
117933 09/2002 Tap grease 25 g tube Berulub Sihaf 2
117934 09/2002 Tap grease 5 g pouch Berulub Sihaf 2
12 127399 09/2002 Inner body LP
13 126945 09/2002 Stabilization triangle kitchen fitprewtergs plastic
14 116401 05/2007 Assembly set
127400 01/2002 Assembly set (replaced by 116401)
15 127274 09/2002 O-Ring threaded pipe
16 127402 09/2002 Threaded pipe
17 123961 05/2007 Flexible hose 50 cm neutral 3/8" - M10x1
123417 05/2007 Flexible hose 45 cm metal neutral with integrated gasket (f) (replaced by 123961)
116384 05/2007 Flexible hose 45 cm metal M10x1 with integrated gasket (replaced by 123417)
127403 09/2002 Flexible hoses 45 cm metal (replaced by 116384)
18 119535 05/2012 Flexible hose A 42 cm metal with flow regulator + filter gasket
116386 05/2007 Flexible hose 40 cm metal yellow flow regulator with gasket (replaced by 119535)
116385 09/2002 Flexible hose A 41 cm metal white flow regulator with gasket
127279
(0 / A)
09/2002 Flexible hose mains connection 41 cm metal without gasket (replaced by 116385)
19 127401 09/2002 Fiber seal flex hose 3/8" (1 piece)
20 128245 09/2002 Lip seal (replaced by 127398)
513383 09/2002 Additional stabilising plate for taps 60mm
513384 09/2002 Additional stabilising plate for taps 75mm
120055 09/2002 Flexible sealing tape (3 x 150 mm)
