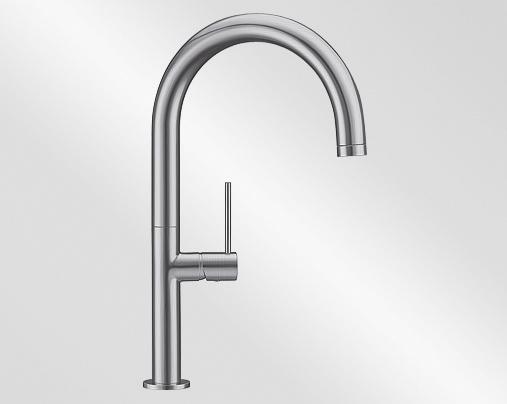

BLANCO PINOS, brass galvanic, stainless steel finish, High Pressure

BLANCO PINOS, brass galvanic, stainless steel finish, High Pressure

                    Article Number
                    515988


no longer available since 06/2013

Article-Version: Article also available in other versions!

BLANCO PINOS, brass galvanic, chrome, High Pressure

515987

Added to Your Shopping Cart

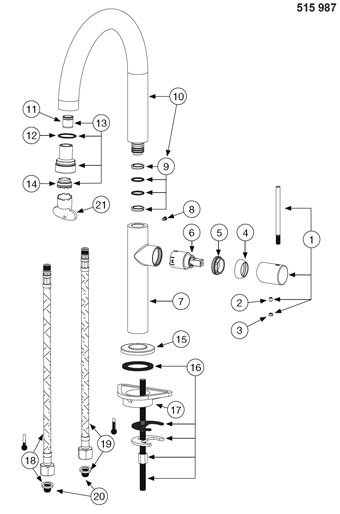

Spare Parts

Valid From	Name

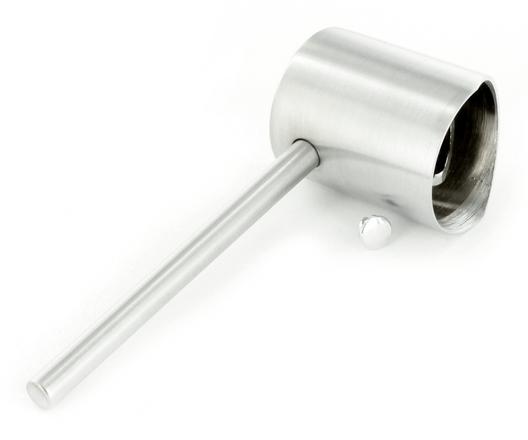

Position Number	1	Art. ID	117859	Valid From	09/2008	Name	Lever PINOS stainless steel finish complete MZ, stainless steel finish
Position Number	2	Art. ID	116803	Valid From	09/2008	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	09/2008	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	09/2008	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	09/2008	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	117286	Valid From	09/2008	Name	Cap on lever MZ

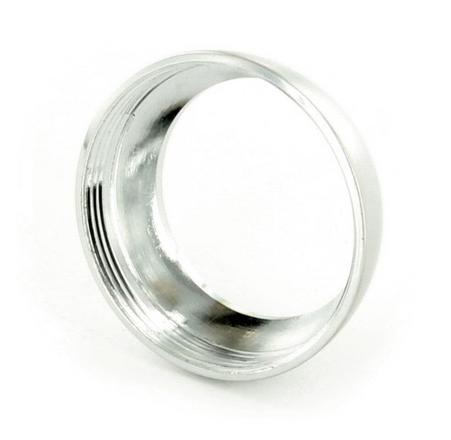

Position Number	4	Art. ID	117860	Valid From	09/2008	Name	Cover ring PINOS stainless steel finish MZ
Position Number	5	Art. ID	117848	Valid From	09/2008	Name	Locknut cartridge wrench size: 22 mm SO
Position Number	6	Art. ID	117849	Valid From	09/2008	Name	Cartridge HP 25mm K-25 KE, blue, High Pressure

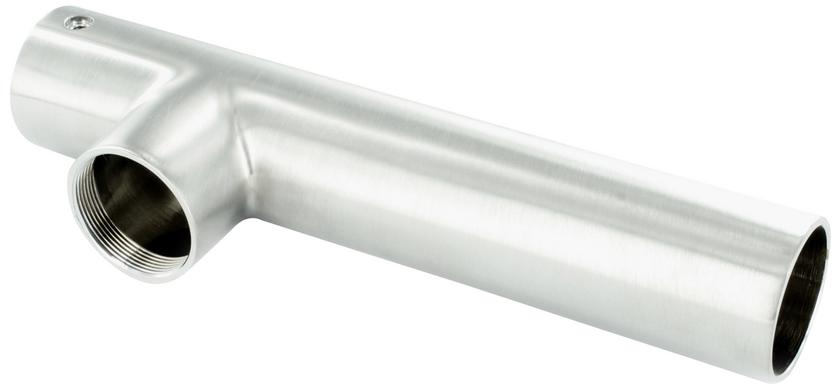

Position Number	7	Art. ID	117861	Valid From	09/2008	Name	Spout body PINOS stainless steel finish MZ
Position Number	8	Art. ID	117851	Valid From	09/2008	Name	Locking screw PINOS, ELOS, LEVOS-S, YOVIS, YOVIS-S MZ
Position Number		Art. ID	139189	Valid From	09/2008	Name	Box spanner hex key AF 2 mm
Position Number	9	Art. ID	117852	Valid From	09/2008	Name	Set O-rings+teflon rings PINOS, YOVIS MZ
Position Number		Art. ID	117933	Valid From	09/2008	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	09/2008	Name	Grease for mixer tap 5g Berulub Sihaf 2

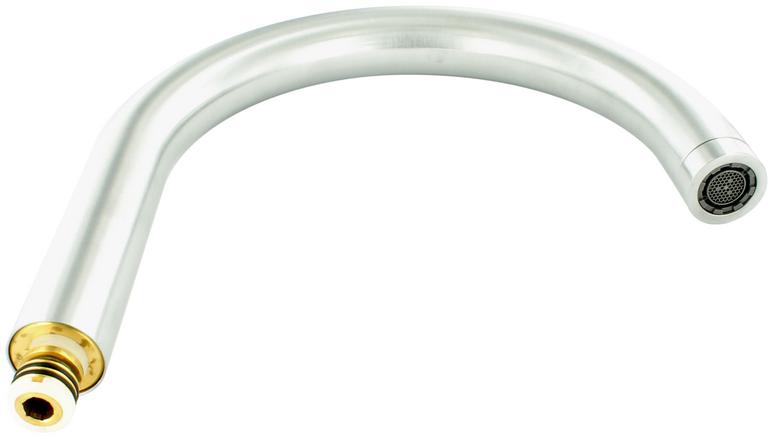

Position Number	10	Art. ID	117862	Valid From	09/2008	Name	Spout PINOS stainless steel finish MZ
Position Number	11	Art. ID	116576	Valid From	09/2008	Name	Non-return valve Ø 15 mm JW, beige
Position Number		Art. ID	127000	Valid From	09/2008	Name	Non-return valve MZ (replaced by 116576), white
Position Number	12	Art. ID	117854	Valid From	09/2008	Name	O-ring outlet MZ
Position Number	13	Art. ID	117863	Valid From	09/2008	Name	Swivel PINOS stainless steel finish MZ
Position Number	14	Art. ID	119854	Valid From	09/2008	Name	Jet regulator HP Caché JR M21.5x1 NE, High Pressure
Position Number		Art. ID	117291	Valid From	09/2008	Name	Insert jet regulator HP plastic Caché-key TJ MZ (replaced by 119854), High Pressure
Position Number	15	Art. ID	117864	Valid From	09/2008	Name	Base PINOS stainless steel finish MZ
Position Number	16	Art. ID	117857	Valid From	09/2008	Name	Assembly set PINOS MZ
Position Number	17	Art. ID	126945	Valid From	09/2008	Name	Stabilization triangle mixer taps BLANCO
Position Number	18	Art. ID	123949 (0 / A)	Valid From	01/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416 (0 / A)	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119187 (0 / A)	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 60 cm metal M10x1 (replaced by 119416) MZ
Position Number	19	Art. ID	123948 (0 / A)	Valid From	01/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119417 (0 / A)	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119188 (0 / A)	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 60 cm metal M10x1 (replaced by 119417) MZ

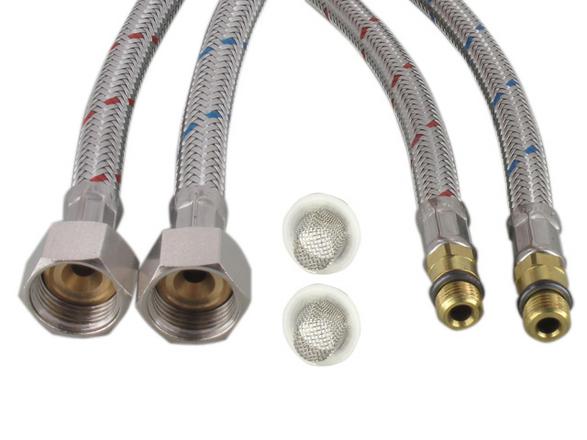

Position Number		Art. ID	119570 (1 / B)	Valid From	01/2011	Name	Flexible hoses (2 pieces) with gasket/mud guard 60 cm metal (replaced by 119187 and 119188) MZ
Position Number		Art. ID	117858 (0 / A)	Valid From	09/2008	Name	Flexible hose (2 pieces) with integrated seal 55 cm metal (replaced by 119187 and 119188) MZ
Position Number	20	Art. ID	118840 (1 / B)	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number	21	Art. ID	117581	Valid From	09/2008	Name	Key Caché for JR NE
Position Number		Art. ID	513383	Valid From	09/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	09/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	09/2008	Name	Flexible sealing tape
