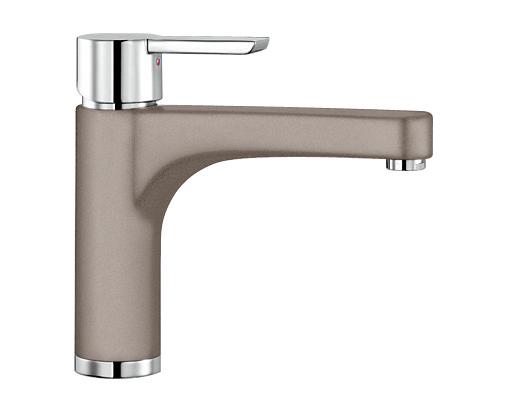

BLANCO PYLOS, brass SILGRANIT Look dual finish, tartufo/chrome, High Pressure

BLANCO PYLOS, brass SILGRANIT Look dual finish, tartufo/chrome, High Pressure

                    Article Number
                    517627


no longer available since 03/2016

Article-Version: Article also available in other versions!

BLANCO PYLOS, brass SILGRANIT Look dual finish, alu metallic/chrome, High Pressure

Added to Your Shopping Cart

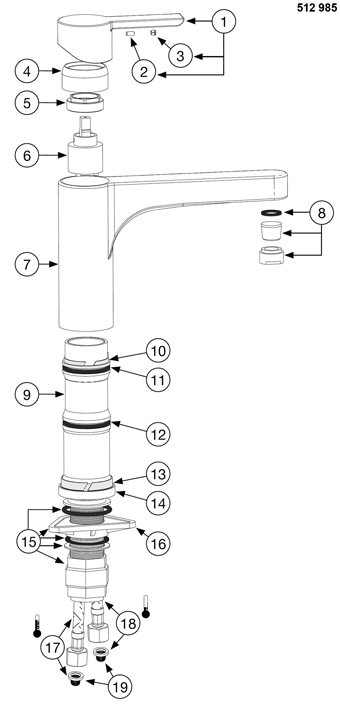

Spare Parts

Valid From	Name
Position Number	1	Art. ID	139516	Valid From	01/2011	Name	Lever chrome
Position Number	2	Art. ID	119362	Valid From	01/2011	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	01/2011	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2011	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2011	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	01/2011	Name	Color cap lever blue/red
Position Number	4	Art. ID	139519	Valid From	01/2011	Name	Cover ring chrome H
Position Number	5	Art. ID	123287	Valid From	01/2011	Name	Cartridge lock nut
Position Number		Art. ID	139522	Valid From	01/2011	Name	Cartridge lock nut (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2011	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121894	Valid From	01/2011	Name	Kartusche HD Ø 35 mm, blue, High Pressure
Position Number		Art. ID	121896	Valid From	01/2011	Name	Kartusche HD Ø 35 mm (ersetzt durch 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2011	Name	Kartusche HD 35 mm (ersetzt durch 121894 oder 121896), blue, High Pressure
Position Number	7	Art. ID	119103	Valid From	01/2011	Name	Spout tartufo
Position Number	8	Art. ID	117344	Valid From	01/2011	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	01/2011	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2011	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/2011	Name	Aerator/distributor key

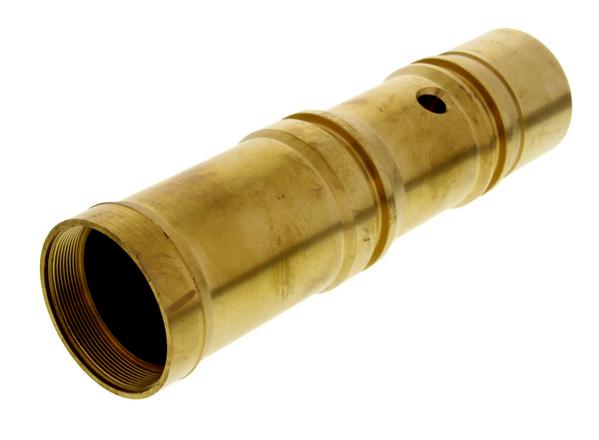

Position Number	9	Art. ID	139536	Valid From	01/2011	Name	Inner body
Position Number	10	Art. ID	139537	Valid From	01/2011	Name	Teflon ring top

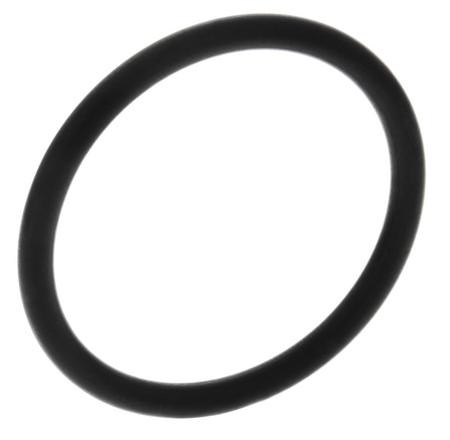

Position Number	11	Art. ID	139538	Valid From	01/2011	Name	O-Ring top 2.62 x 37.77 mm
Position Number		Art. ID	117933	Valid From	01/2011	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2011	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	12	Art. ID	139539	Valid From	01/2011	Name	O-Ring bottom 3.53 x 37.69 mm
Position Number	13	Art. ID	139540	Valid From	01/2011	Name	Teflon ring bottom
Position Number	14	Art. ID	139541	Valid From	01/2011	Name	Base chrome
Position Number	15	Art. ID	139544	Valid From	01/2011	Name	Assembly set
Position Number	16	Art. ID	126945	Valid From	01/2011	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	17	Art. ID	123948	Valid From	01/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119417	Valid From	01/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119685	Valid From	01/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number	18	Art. ID	123949	Valid From	01/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	01/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119684	Valid From	01/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number	19	Art. ID	118840	Valid From	01/2011	Name	Screen filter seal 3/8" angle valve
Position Number		Art. ID	513383	Valid From	01/2011	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2011	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2011	Name	Flexible sealing tape (3 x 150 mm)
