BLANCO PYLOS, brass galvanic, chrome, Low pressure

BLANCO PYLOS, brass galvanic, chrome, Low pressure

                    Article Number
                    512986


no longer available since 03/2016

Article-Version: Article also available in other versions!

BLANCO PYLOS, brass galvanic, stainless steel finish, Low pressure

512990

BLANCO PYLOS, brass galvanic, satin chrome, Low pressure

512988

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	139516	Valid From	01/2005	Name	Lever PYLOS chrome complete HA
Position Number	2	Art. ID	119362	Valid From	01/2005	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	01/2005	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/2005	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/2005	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	01/2005	Name	Color cap lever blue/red HA
Position Number	4	Art. ID	139519	Valid From	01/2005	Name	Cover ring PYLOS chrome HA
Position Number	5	Art. ID	123287	Valid From	01/2005	Name	Locknut cartridge VE
Position Number		Art. ID	139522	Valid From	01/2005	Name	Locknut cartridge HA (replaced by 123287)
Position Number		Art. ID	127433	Valid From	01/2005	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121491	Valid From	01/2005	Name	Cartridge LP 35 mm KE, blue, Low pressure
Position Number		Art. ID	120088	Valid From	01/2005	Name	Cartridge 35 mm LP KI (replaced by 121491), blue, Low pressure
Position Number		Art. ID	116409	Valid From	01/2005	Name	Cartridge ND Hydroplast (replaced by 120088), grey, Low pressure
Position Number		Art. ID	139523	Valid From	01/2005	Name	Cartridge HP/LP (replaced by 118787-HP or 116409-NP) KE HA, blue, Low Pressure

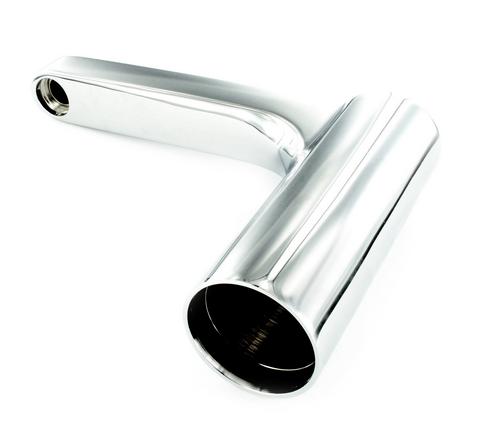

Position Number	7	Art. ID	139524	Valid From	01/2005	Name	Spout PYLOS chrome HA
Position Number	8	Art. ID	127397	Valid From	01/2005	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	125829	Valid From	01/2005	Name	Jet splitter set LP chrome (replace by 127397) HA, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2005	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2005	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	139536	Valid From	01/2005	Name	Inner body PYLOS HA
Position Number	10	Art. ID	139537	Valid From	01/2005	Name	Teflon ring top HA
Position Number	11	Art. ID	139538	Valid From	01/2005	Name	O-ring top 3,53 x 36,10 HA
Position Number		Art. ID	117933	Valid From	01/2005	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2005	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	12	Art. ID	139539	Valid From	01/2005	Name	O-ring bottom 3,53 x 37,69 mm HA
Position Number	13	Art. ID	139540	Valid From	01/2005	Name	Teflon ring bottom HA
Position Number	14	Art. ID	139541	Valid From	01/2005	Name	Base PYLOS chrome HA
Position Number	15	Art. ID	139544	Valid From	01/2005	Name	Assembly set HA
Position Number	16	Art. ID	126945	Valid From	01/2005	Name	Stabilization triangle mixer taps BLANCO
Position Number	17	Art. ID	121656	Valid From	01/2005	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2005	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	128923	Valid From	01/2005	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number		Art. ID	126492	Valid From	01/2005	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number	18	Art. ID	126493	Valid From	01/2005	Name	Flow limiter LP ARGON,ELIPSO,LAVA without seals HA, yellow
Position Number	19	Art. ID	125825	Valid From	01/2005	Name	Flow limiter ARGON-S LP HA, yellow
Position Number	20	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	01/2005	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2005	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2005	Name	Flexible sealing tape
