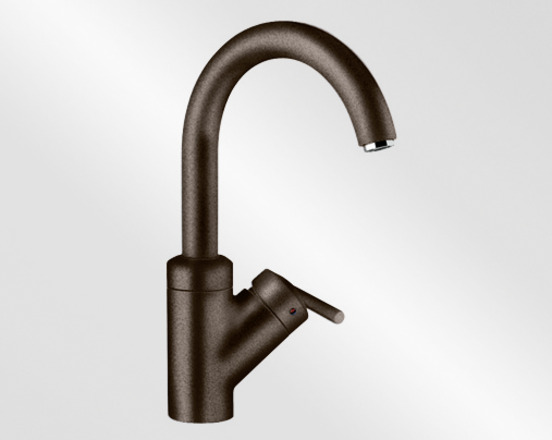

BLANCO RADOS, brass SILGRANIT-Look, coffee, High Pressure

BLANCO RADOS, brass SILGRANIT-Look, coffee, High Pressure

                    Article Number
                    514929


no longer available since 12/2010

Article-Version: Article also available in other versions!

BLANCO RADOS, brass SILGRANIT-Look, green, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

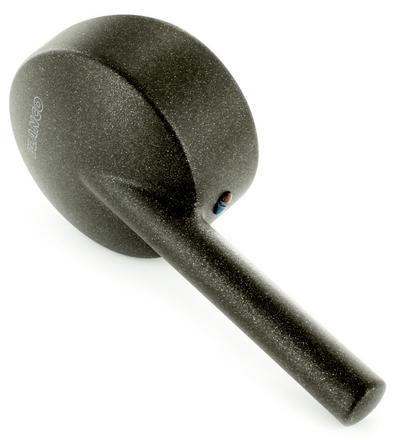

Position Number	1	Art. ID	116705	Valid From	10/2007	Name	Lever coffee, coffee
Position Number	2	Art. ID	119362	Valid From	10/2007	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	10/2007	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	10/2007	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	10/2007	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	10/2007	Name	Color cap lever blue/red

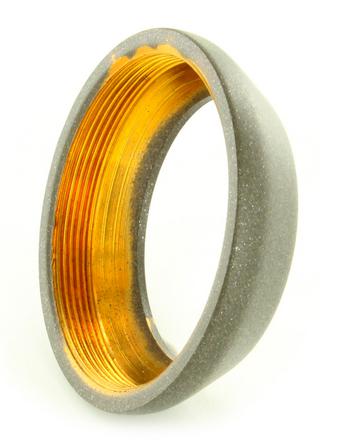

Position Number	4	Art. ID	116708	Valid From	10/2007	Name	Cover ring coffee
Position Number	5	Art. ID	128367	Valid From	10/2007	Name	Cartridge lock nut
Position Number		Art. ID	127433	Valid From	10/2007	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121895	Valid From	10/2007	Name	Kartusche HD Ø 40 mm, blue, High Pressure
Position Number		Art. ID	118788	Valid From	10/2007	Name	Kartusche HD 40 mm (ersetzt durch 121895 oder 121897), blue, High Pressure
Position Number		Art. ID	139323	Valid From	10/2007	Name	Kartusche HD 40 mm ELIPSO/-S geänderte Ausführung grau (ersetzt durch 118788), grey, High Pressure
Position Number	7	Art. ID	127828	Valid From	10/2007	Name	Inner body HP
Position Number	8	Art. ID	127829	Valid From	10/2007	Name	O-Ring inner body

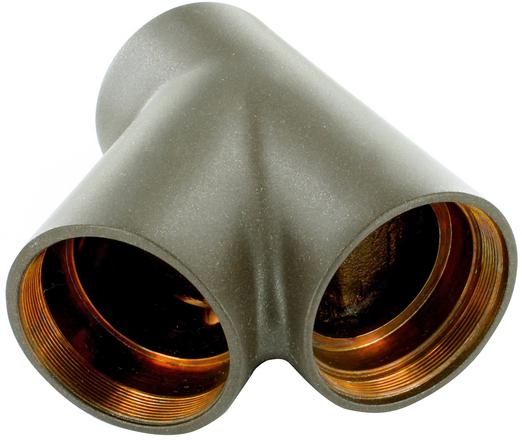

Position Number	9	Art. ID	116711	Valid From	10/2007	Name	Outer body coffee
Position Number	10	Art. ID	127832	Valid From	10/2007	Name	Screw spout
Position Number	11	Art. ID	127833	Valid From	10/2007	Name	Teflon ring spout

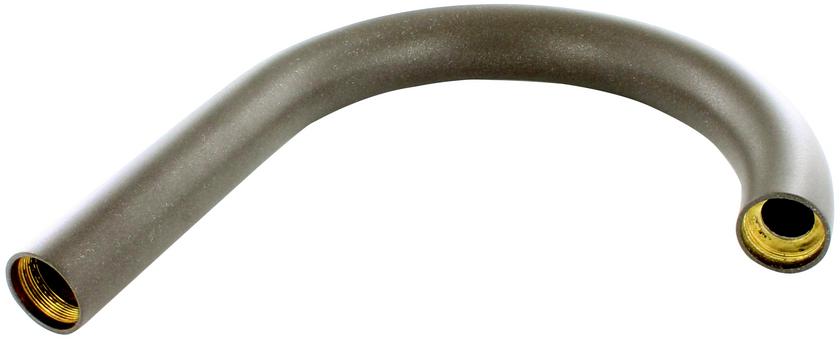

Position Number	12	Art. ID	116714	Valid From	10/2007	Name	Spout coffee

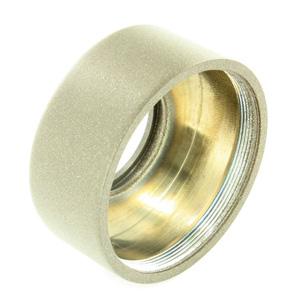

Position Number	13	Art. ID	116717	Valid From	10/2007	Name	Cover ring outlet coffee
Position Number	14	Art. ID	127838	Valid From	10/2007	Name	O-Ring spout
Position Number		Art. ID	117933	Valid From	10/2007	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2007	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	15	Art. ID	127839	Valid From	10/2007	Name	Teflon ring spout
Position Number	16	Art. ID	117344	Valid From	10/2007	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	10/2007	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2007	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	10/2007	Name	Aerator/distributor key
Position Number	17	Art. ID	127841	Valid From	10/2007	Name	Assembly set
Position Number	18	Art. ID	127842	Valid From	10/2007	Name	Connection piece spray hose
Position Number	19	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue 3/8" - M10x1
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red 3/8" - M10x1
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose 65 cm metal blue M10x1 with filter gasket (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose 65 cm metal red M10x1 with filter gasket (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose 50 cm metal blue M10x1 with filter gasket (replaced by 119416)
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose 50 cm metal red M10x1 with filter gasket (replaced by 119417)
Position Number		Art. ID	121656	Valid From	10/2007	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	10/2007	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	126492	Valid From	10/2007	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	128923	Valid From	10/2007	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number	20	Art. ID	127843	Valid From	10/2007	Name	Seal network connection flat
Position Number	21	Art. ID	127844	Valid From	10/2007	Name	O-Ring flexible hose
Position Number		Art. ID	513383	Valid From	10/2007	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	10/2007	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	10/2007	Name	Flexible sealing tape (3 x 150 mm)
