BLANCO RADOS-S, brass galvanic, stainless steel look/softgrip black, High Pressure

BLANCO RADOS-S, brass galvanic, stainless steel look/softgrip black, High Pressure

                    Article Number
                    512199


no longer available since 09/2003

Article-Version: Article also available in other versions!

BLANCO RADOS-S, brass galvanic, chrome/chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

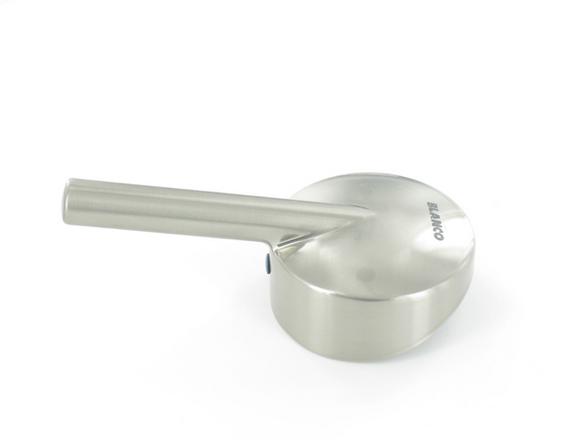

Position Number	1	Art. ID	127825	Valid From	10/2002	Name	Lever RADOS stainless steel optic HA, stainless steel look
Position Number	2	Art. ID	119362	Valid From	10/2002	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	10/2002	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	10/2002	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	10/2002	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	10/2002	Name	Color cap lever blue/red HA

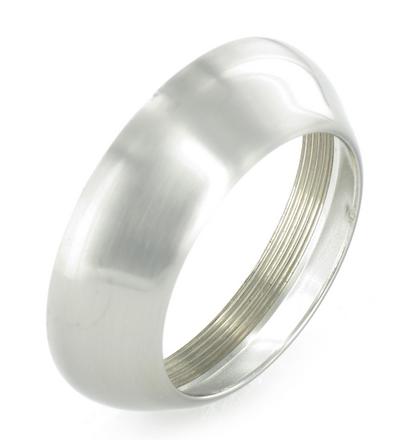

Position Number	4	Art. ID	128366	Valid From	10/2002	Name	Cover ring RADOS stainless steel optic
Position Number	5	Art. ID	128367	Valid From	10/2002	Name	Locknut cartridge RADOS HA
Position Number		Art. ID	127433	Valid From	10/2002	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	10/2002	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	118788	Valid From	10/2002	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure
Position Number		Art. ID	139323	Valid From	10/2002	Name	Cartridge HP ELIPSO/-S modified version grey (replaced by 118788) HA, grey, High Pressure
Position Number		Art. ID	125746	Valid From	10/2002	Name	Cartridge HP (replaced by 139323), green, High Pressure
Position Number	7	Art. ID	128368	Valid From	10/2002	Name	Inner body RADOS-S HA
Position Number	8	Art. ID	128369	Valid From	10/2002	Name	O-ring cartridge inner body RADOS-S HA

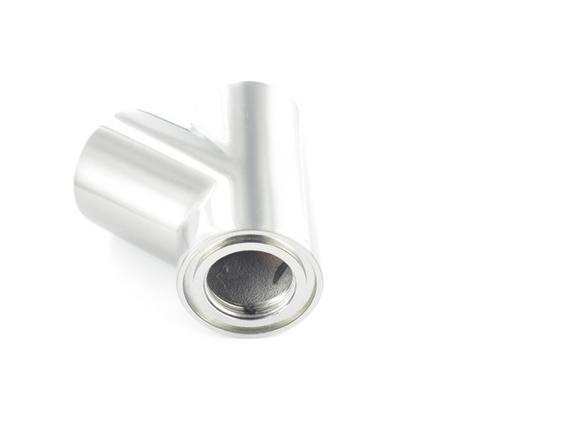

Position Number	9	Art. ID	128372	Valid From	10/2002	Name	Body RADOS-S stainless steel optic HA
Position Number	10	Art. ID	126834	Valid From	10/2002	Name	Screw ARGON-Z, ELIPSO-Z, RADOS-S HA
Position Number	11	Art. ID	127833	Valid From	10/2002	Name	Teflon ring for spout RADOS HA

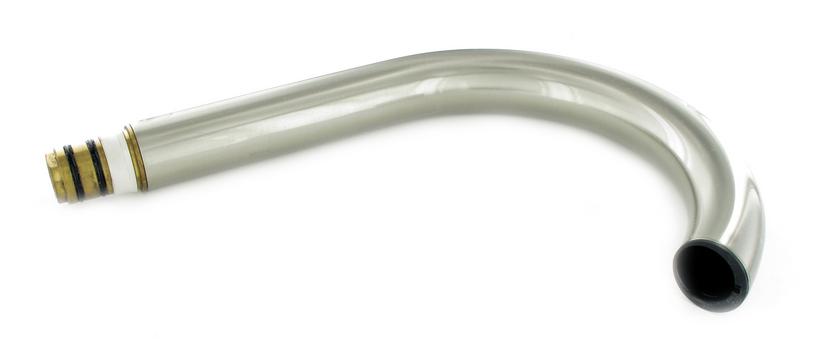

Position Number	12	Art. ID	128375	Valid From	10/2002	Name	Spout RADOS-S stainless steel optic HA

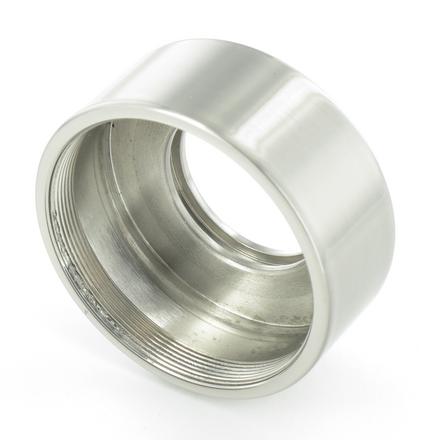

Position Number	13	Art. ID	128378	Valid From	10/2002	Name	Cover ring outlet RADOS-S stainless steel optic
Position Number	14	Art. ID	127838	Valid From	10/2002	Name	O-ring for outlet RADOS HA
Position Number		Art. ID	117933	Valid From	10/2002	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	10/2002	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	15	Art. ID	127839	Valid From	10/2002	Name	Teflon bush for spout RADOS
Position Number	16	Art. ID	128379	Valid From	10/2002	Name	Fitting piece spray head RADOS-S HA
Position Number	17	Art. ID	128380	Valid From	10/2002	Name	Casing outlet RADOS-S HA
Position Number	18	Art. ID	127842	Valid From	10/2002	Name	Connection piece spray hose MERKUR,RADOS
Position Number	19	Art. ID	127844	Valid From	10/2002	Name	O-ring flexible hose RADOS-S, MERKUR-S HA
Position Number	20	Art. ID	128381	Valid From	10/2002	Name	Flexible hose for spray hose without seal 22 cm metal M10x1 HA
Position Number	21	Art. ID	123949	Valid From	03/2011	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123948	Valid From	03/2011	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119417	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119684	Valid From	03/2011	Name	Flexible hose blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) HA
Position Number		Art. ID	119685	Valid From	03/2011	Name	Flexible hose red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) HA
Position Number		Art. ID	121656	Valid From	10/2002	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	10/2002	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	126492	Valid From	10/2002	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number		Art. ID	128923	Valid From	10/2002	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	22	Art. ID	127843	Valid From	10/2002	Name	Seal connector hose MERKUR, RADOS flat
Position Number	23	Art. ID	126762	Valid From	10/2002	Name	Seal spray hose bottom 13,7x10x1,5 HA
Position Number	24	Art. ID	116621	Valid From	10/2002	Name	Spray hose RADOS-S flexible joint 150 cm metal WI
Position Number		Art. ID	128382	Valid From	10/2002	Name	Spray hose RADOS-S 150 cm Metall HA (replaced by 116621)
Position Number	25	Art. ID	123063	Valid From	10/2002	Name	Weight for shower hose (200g) AV
Position Number		Art. ID	125764	Valid From	10/2002	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number	26	Art. ID	127841	Valid From	10/2002	Name	Assembly set MERKUR, RADOS HA
Position Number	27	Art. ID	128383	Valid From	10/2002	Name	Seal with sieve spray hose top HA
Position Number	28	Art. ID	128741	Valid From	10/2002	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	125768	Valid From	10/2002	Name	Non-return valve blue in spray head (ersetzt durch 128741) HA, blue
Position Number	29	Art. ID	128808	Valid From	10/2002	Name	Spray head RADOS-S PuraPlus softgrip black complete Special colours, black, High Pressure

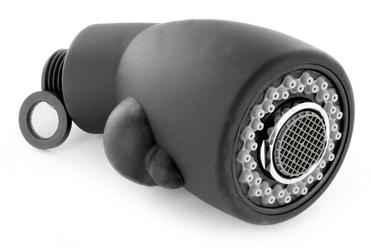

Position Number		Art. ID	128385	Valid From	10/2002	Name	Spray head RADOS-S HP black softgrip complete (replaced by 128808) Special colours, black, High Pressure
Position Number	30	Art. ID	117344	Valid From	10/2002	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127840	Valid From	10/2002	Name	Jet regulator set HP chrome (replace by 117344) HA, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	10/2002	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	10/2002	Name	Key for jet regulator/-splitter (1 piece)
Position Number		Art. ID	513384	Valid From	10/2002	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	513383	Valid From	10/2002	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	511920	Valid From	10/2002	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	10/2002	Name	Flexible sealing tape
