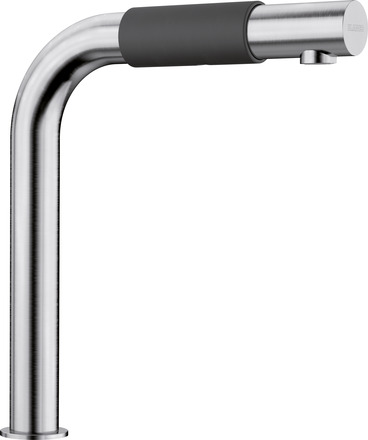

BLANCO SAGA, Stainless steel solid, stainless steel, High Pressure

BLANCO SAGA, Stainless steel solid, stainless steel, High Pressure

                    Article Number
                    519446


no longer available since 03/2020

Added to Your Shopping Cart

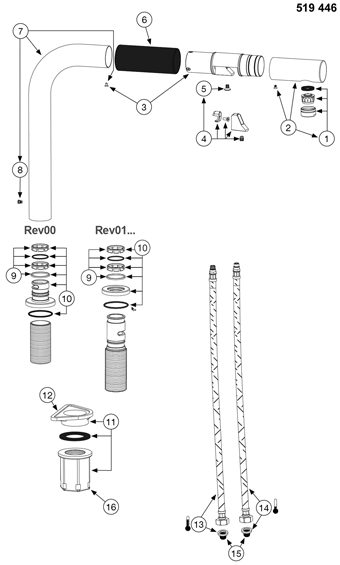

Spare Parts

Valid From	Name
Position Number	1	Art. ID	120718	Valid From	01/2013	Name	Jet regulator HP brushed stainless steel OT M24x1 SW22, High Pressure
Position Number		Art. ID	117501	Valid From	01/2013	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/2013	Name	Aerator/distributor key

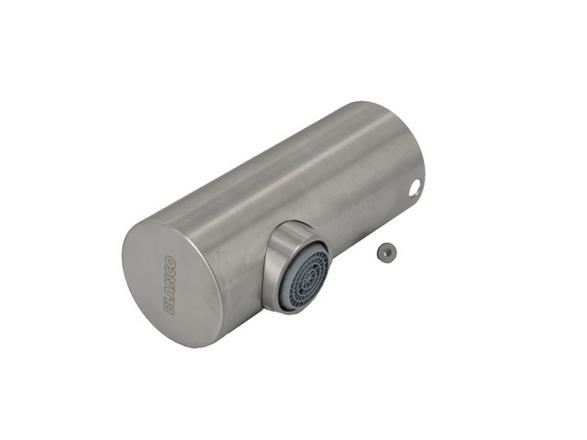

Position Number	2	Art. ID	120719	Valid From	01/2013	Name	Swivel including screw + aerator set

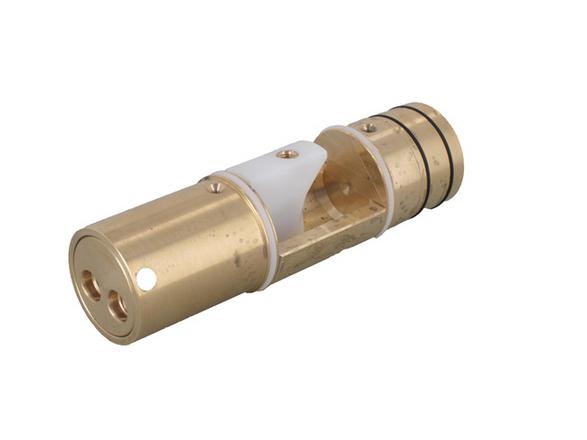

Position Number	3	Art. ID	120720	Valid From	01/2013	Name	Inner body with cartridge and screw M3x5
Position Number		Art. ID	139189	Valid From	01/2013	Name	Hex key SW 2 mm
Position Number	4	Art. ID	120721	Valid From	01/2013	Name	Control including screw M5x8
Position Number	5	Art. ID	120722	Valid From	01/2013	Name	Screw M5x8
Position Number	6	Art. ID	120723	Valid From	01/2013	Name	Collar

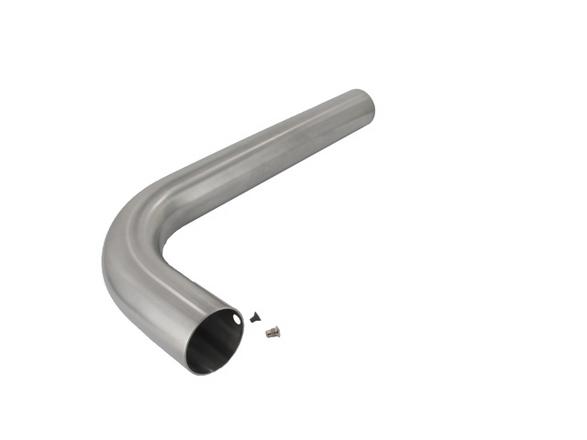

Position Number	7	Art. ID	120724	Valid From	01/2013	Name	Spout without endpiece including screws M3x5 and M5x7
Position Number	8	Art. ID	120725	Valid From	01/2013	Name	Screw outer body M5x7

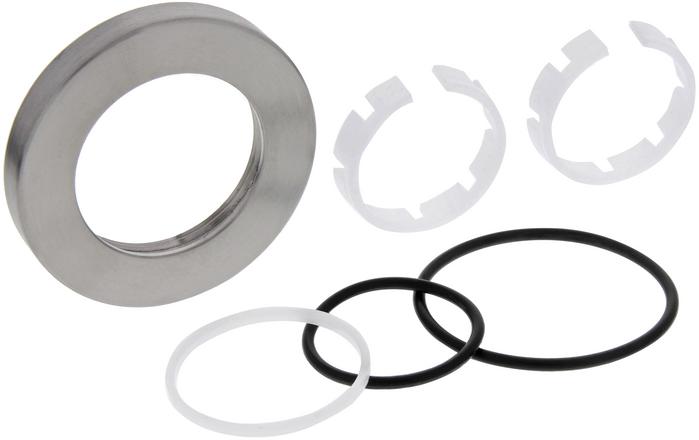

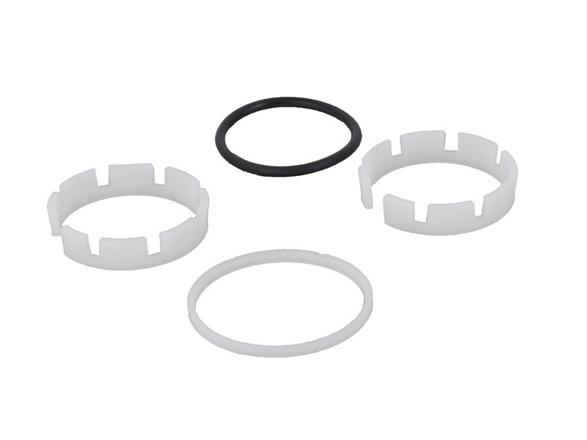

Position Number	9	Art. ID	120726	Valid From	01/2013	Name	Teflon rings + O-ring set
Position Number		Art. ID	117933	Valid From	01/2013	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2013	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	10	Art. ID	121072 (1 / B)	Valid From	04/2013	Name	Base with gasket + Teflon set + O-rings
Position Number		Art. ID	120727 (0 / A)	Valid From	01/2013	Name	Base with gasket + Teflon set + O-rings

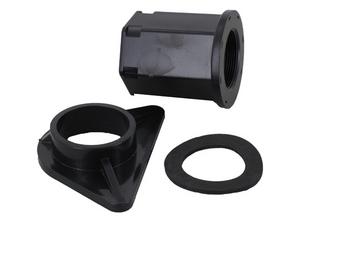

Position Number	11	Art. ID	120728	Valid From	01/2013	Name	Assembly set including stabilization triangle
Position Number	12	Art. ID	126945	Valid From	01/2013	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number	13	Art. ID	123938	Valid From	01/2013	Name	Flexible hose 95 cm red ⅜'' - M8x1
Position Number		Art. ID	119803	Valid From	01/2013	Name	Flexible hose 95 cm metal red M8x1 with filter gasket (replaced by 123938)
Position Number		Art. ID	120729	Valid From	01/2013	Name	Flexible hose 80 cm metal red M8x1 with filter gasket (replaced by 119803)
Position Number	14	Art. ID	119804	Valid From	01/2013	Name	Flexible hose 95 cm metal blue M8x1 with filter gasket (replaced by 123939)

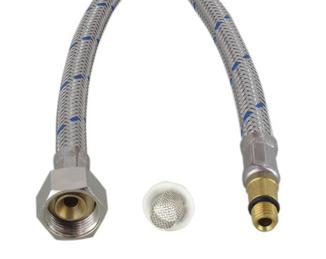

Position Number		Art. ID	120730	Valid From	01/2013	Name	Flexible hose 80 cm metal blue M8x1 with filter gasket (replaced by 119804)
Position Number	15	Art. ID	118840	Valid From	01/2013	Name	Screen filter seal ⅜'' angle valve
Position Number	16	Art. ID	120699	Valid From	01/2013	Name	Assembly nut M33 (black)
Position Number		Art. ID	513383	Valid From	01/2013	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2013	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2013	Name	Flexible sealing tape (3 x 150 mm)
