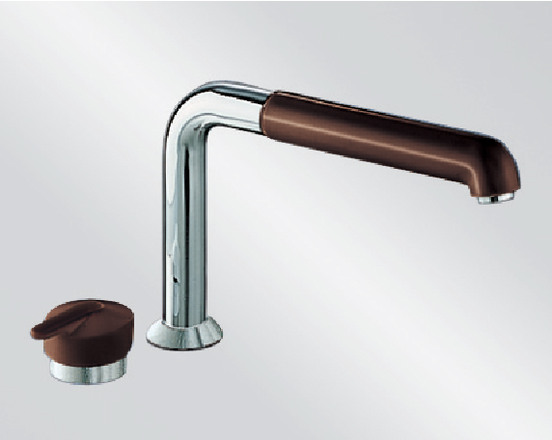

BLANCO SIRIUS-S (Mix 3020 S), brass galvanic, brown/chrome, High Pressure

BLANCO SIRIUS-S (Mix 3020 S), brass galvanic, brown/chrome, High Pressure

                    Article Number
                    137238


no longer available since 07/2001

Article-Version: Article also available in other versions!

BLANCO SIRIUS-S (Mix 3020 S), brass galvanic, white/chrome, High Pressure

137237

BLANCO SIRIUS-S (Mix 3020 S), brass galvanic, chrome/chrome, High Pressure

137236

BLANCO SIRIUS-S (Mix 3020 S), brass galvanic, black/chrome, High Pressure

137239

Added to Your Shopping Cart

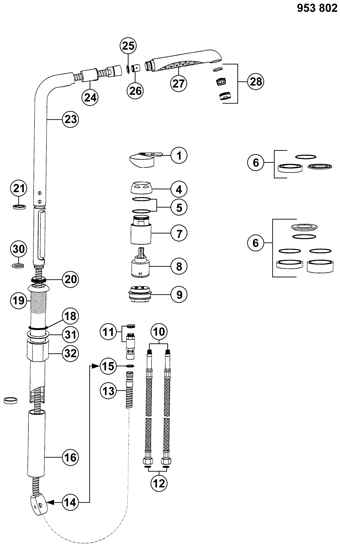

Spare Parts

Valid From	Name

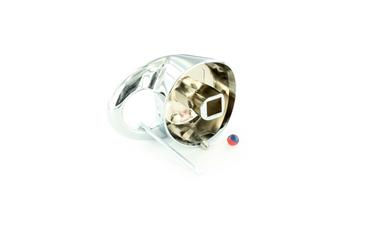

Position Number	1	Art. ID	128096	Valid From	08/2009	Name	Lever chrome, chrome
Position Number		Art. ID	128339	Valid From	01/1995	Name	Lever brown (replaced by 128096), brown
Position Number		Art. ID	139188	Valid From	01/1995	Name	Hex key SW 2.5 mm
Position Number	4	Art. ID	125939	Valid From	01/1995	Name	Cover ring chrome
Position Number	5	Art. ID	125940	Valid From	01/1995	Name	Seal cover ring
Position Number	6	Art. ID	126368	Valid From	01/1995	Name	Spacer rings set
Position Number	7	Art. ID	125942	Valid From	01/1995	Name	Cover cylinder
Position Number	8	Art. ID	121895	Valid From	01/1995	Name	Cartridge HP Ø 40 mm, blue, High Pressure
Position Number		Art. ID	116806	Valid From	01/1995	Name	Cartridge HP 40 mm (replaced by 118788, 121895 or 121897), blue, High Pressure
Position Number		Art. ID	116119	Valid From	01/1995	Name	Cartridge HP 40 mm (replaced by 118788/116806), blue, High Pressure
Position Number		Art. ID	127283	Valid From	01/1995	Name	Cartridge HP 40 mm (replaced by 116119), green, High Pressure

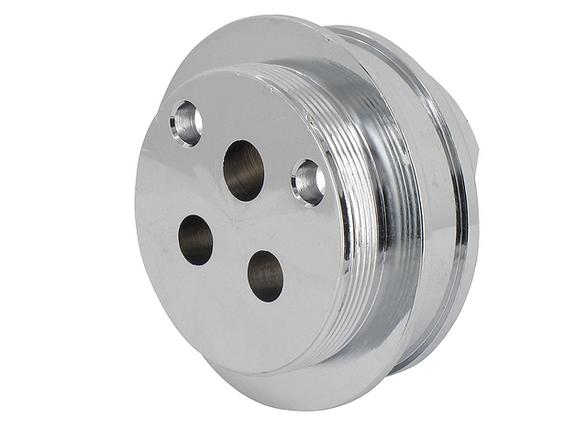

Position Number	9	Art. ID	127163	Valid From	12/2001	Name	Cartridge seat
Position Number		Art. ID	125944	Valid From	01/1995	Name	Cartridge seat
Position Number	10	Art. ID	123951	Valid From	08/2010	Name	Flexible hose 95 cm blue ⅜'' - M10x1
Position Number		Art. ID	119939	Valid From	08/2010	Name	Flexible hose 90 cm metal blue M10x1 with filter gasket (replaced by 123951)
Position Number		Art. ID	119537	Valid From	08/2010	Name	Flexible hose 75 cm metal blue M10x1 with filter gasket (replaced by 119939)
Position Number		Art. ID	123950	Valid From	08/2010	Name	Flexible hose 95 cm red ⅜'' - M10x1
Position Number		Art. ID	119940	Valid From	08/2010	Name	Flexible hose 90 cm metal red M10x1 with filter gasket (replaced by 123950)
Position Number		Art. ID	119567	Valid From	08/2010	Name	Flexible hose 75 cm metal red M10x1 with filter gasket (replaced by 119940)
Position Number		Art. ID	119571	Valid From	08/2010	Name	Flexible hoses 75 cm metal with filter gasket (2 pieces) (replaced by 119567 and 119537)
Position Number		Art. ID	118921	Valid From	08/2010	Name	Flexible hoses 75 cm metal with integrated gasket (2 pieces) (replaced by 119571)
Position Number		Art. ID	116394	Valid From	05/2010	Name	Flexible hose 75 cm metal with gasket (1 pc) (replaced by 118921)
Position Number		Art. ID	125945	Valid From	01/1995	Name	Flexible hoses 75 cm metal (2 pieces) (replaced by 116394)
Position Number	11	Art. ID	137847	Valid From	01/1995	Name	Non-return valve
Position Number	12	Art. ID	118840	Valid From	01/2001	Name	Screen filter seal ⅜'' angle valve
Position Number		Art. ID	127401	Valid From	06/2001	Name	Fiber seal flex hose ⅜'' (1 piece)
Position Number		Art. ID	127068	Valid From	01/1995	Name	Fiber seal flex hose (replaced by 127401)
Position Number	13	Art. ID	123854	Valid From	03/2012	Name	Spray hose 175 cm metal with gaskets
Position Number		Art. ID	120056	Valid From	03/2012	Name	Spray hose 175 cm metal with gaskets (PEX-Inliner) (replaced by 123854)

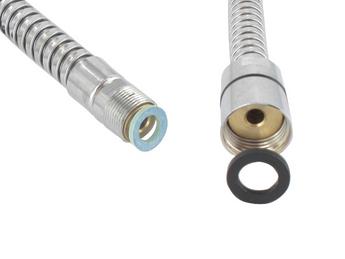

Position Number		Art. ID	125948	Valid From	01/1995	Name	Spray hose 170 cm metal with gaskets (replaced by 120056)
Position Number	14	Art. ID	124881	Valid From	01/1995	Name	Weight (445g)
Position Number		Art. ID	123888	Valid From	01/1995	Name	Weight (420g) (replaced by 124881)
Position Number		Art. ID	128707	Valid From	01/1995	Name	Weight (221g) Ø14 mm (replaced by 123888)
Position Number		Art. ID	126947	Valid From	01/1995	Name	Weight (246g) (replaced by 128707 or 125764)
Position Number	15	Art. ID	116496	Valid From	01/1995	Name	Seal 8.0x13.3x2.0 mm EPDM
Position Number		Art. ID	125167	Valid From	01/1995	Name	Seal spray hose below (replaced by 116496)
Position Number	16	Art. ID	125951	Valid From	01/1995	Name	Protective casing spray hose
Position Number	18	Art. ID	125954	Valid From	01/1995	Name	Seal top
Position Number	19	Art. ID	125956	Valid From	01/1995	Name	Base tube
Position Number	20	Art. ID	128214	Valid From	01/1995	Name	Seal spout grey
Position Number		Art. ID	125957	Valid From	01/1995	Name	Seal elbow pipe (replaced by 128214)

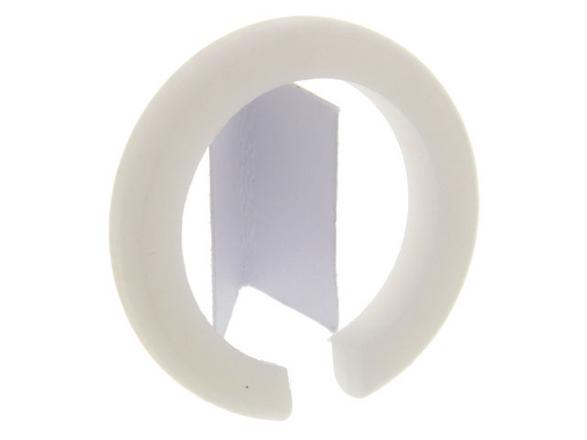

Position Number	21	Art. ID	125958	Valid From	01/1995	Name	Sliding ring elbow pipe
Position Number	23	Art. ID	125959	Valid From	01/1995	Name	Spout

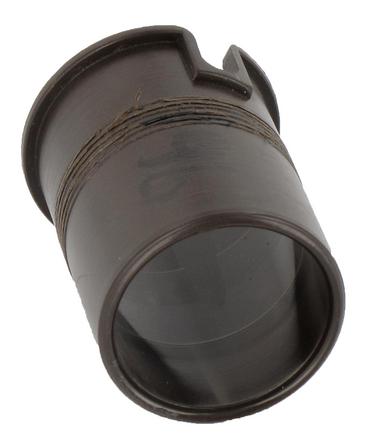

Position Number	24	Art. ID	125961	Valid From	01/1995	Name	Fitprewterg piece brown
Position Number		Art. ID	125960	Valid From	01/1995	Name	Fitprewterg piece black
Position Number	25	Art. ID	116490	Valid From	01/1995	Name	Seal spray hose above 19 x 14 x 2 mm
Position Number		Art. ID	125166	Valid From	01/1995	Name	Seal spray hose above (replaced by 116490)
Position Number	26	Art. ID	116576	Valid From	01/1995	Name	Non-return valve Ø 15 mm, beige
Position Number		Art. ID	125767	Valid From	01/1995	Name	Non-return valve Ø 15 mm (replaced by 116576), beige
Position Number		Art. ID	125160	Valid From	01/1995	Name	Non-return valve (replaced by 125767)
Position Number	27	Art. ID	116489	Valid From	01/1995	Name	Spray head HP chrome galvanic, chrome, High Pressure
Position Number		Art. ID	125966	Valid From	01/1995	Name	Spray head HP brown (replaced by 116489) galvanic, brown, High Pressure
Position Number	28	Art. ID	117344	Valid From	01/1995	Name	Jet regulator HP chrome OT M24x1, High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	01/1995	Name	Jet regulator HP chrome OT M24x1 (replaced by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/1995	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	01/1995	Name	Aerator/distributor key
Position Number	30	Art. ID	125950	Valid From	01/1995	Name	Retaining ring

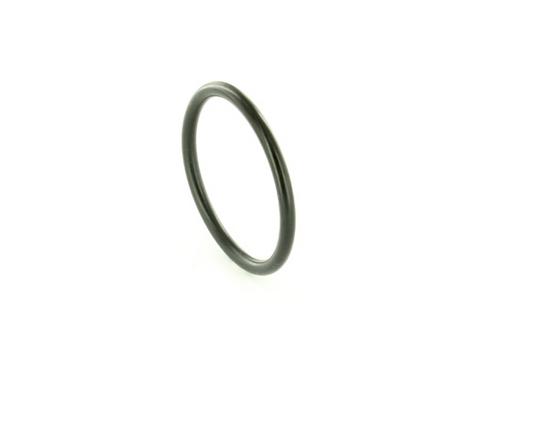

Position Number	31	Art. ID	125955	Valid From	01/1995	Name	Seal bottom

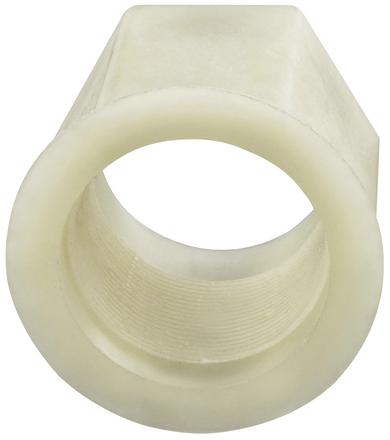

Position Number	32	Art. ID	125953	Valid From	01/1995	Name	Assembly nut plastic
Position Number		Art. ID	513383	Valid From	01/1995	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1995	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1995	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1995	Name	Flexible sealing tape (3 x 150 mm)
