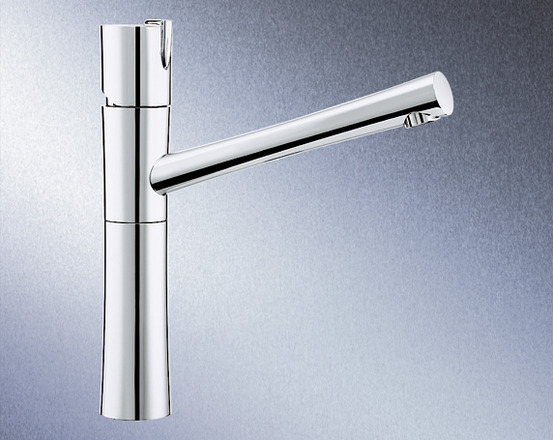

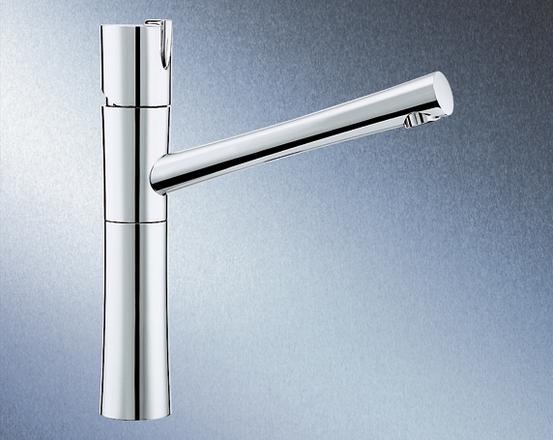

BLANCO TALOS, brass galvanic, chrome, High Pressure

BLANCO TALOS, brass galvanic, chrome, High Pressure

                    Article Number
                    512585


no longer available since 12/2009

Article-Version: Article also available in other versions!

BLANCO TALOS, brass galvanic, satin chrome, High Pressure

512586

BLANCO TALOS, brass galvanic, stainless steel finish, High Pressure

512587

Added to Your Shopping Cart

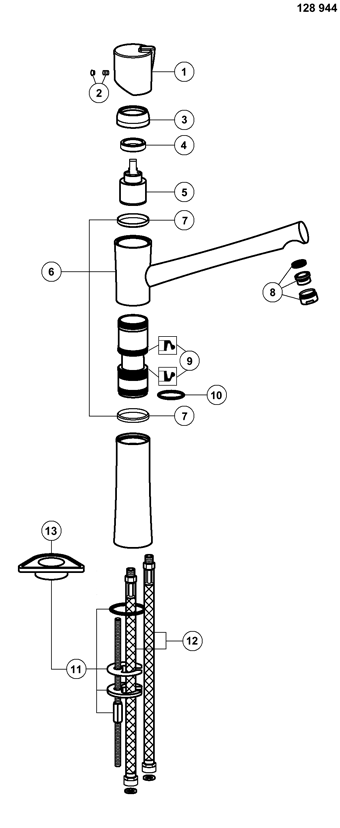

Spare Parts

Valid From	Name
Position Number	1	Art. ID	128926	Valid From	01/2003	Name	Lever TALOS chrome complete NF
Position Number	2	Art. ID	128685	Valid From	01/2003	Name	Screw M5x4 wrench size = 2,5 mm + color cap chrome NF + SO
Position Number		Art. ID	139188	Valid From	01/2003	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	128930	Valid From	01/2003	Name	Locknut cartridge chrome NF
Position Number		Art. ID	139219	Valid From	01/2003	Name	Universal spanner for cartridge cover ring NF
Position Number	4	Art. ID	128933	Valid From	01/2003	Name	Clamping ring cartridge ZENOS/-S,TALOS/-S NF
Position Number	5	Art. ID	121894	Valid From	01/2003	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	118787	Valid From	01/2003	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number		Art. ID	128595	Valid From	01/2003	Name	Cartridge HP FONTAS-A Ø= 35 mm (replaced by 118787) NF, black, High Pressure
Position Number		Art. ID	116243	Valid From	01/2003	Name	Cartridge HP (replaced by 128595), blue, High Pressure

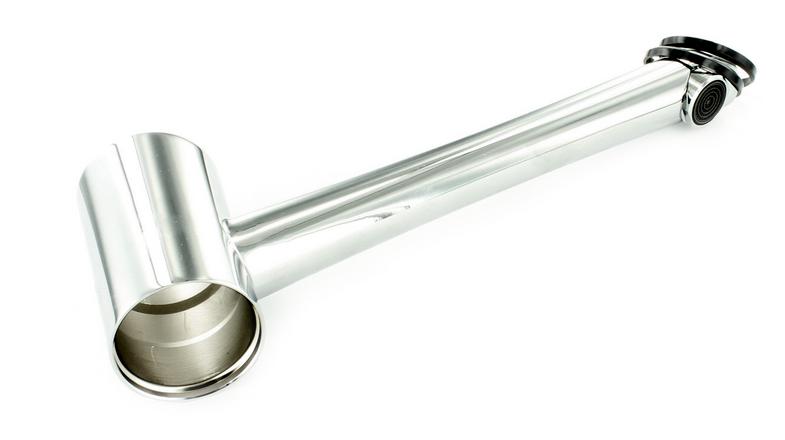

Position Number	6	Art. ID	128934	Valid From	01/2003	Name	Spout TALOS chrome complete NF
Position Number	7	Art. ID	128937	Valid From	08/2003	Name	Set of plastic rings (2 pieces) NF
Position Number		Art. ID	139078	Valid From	01/2003	Name	Teflon ring ALTA (replaced by 128937)
Position Number	8	Art. ID	117344	Valid From	01/2003	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	128598	Valid From	01/2003	Name	Jet regulator set HP chrome NE NF (replace by 117344), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2003	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2003	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	128600	Valid From	01/2003	Name	Body seals 39,5x30,7x4,1mm (2 pieces) NF
Position Number		Art. ID	117933	Valid From	01/2003	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2003	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	10	Art. ID	128938	Valid From	01/2003	Name	O-ring inner body TALOS 34,6x2,62mm NF

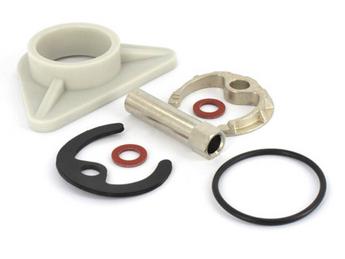

Position Number	11	Art. ID	128939	Valid From	01/2003	Name	Assembly set TALOS NF
Position Number	12	Art. ID	123948	Valid From	01/2003	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123949	Valid From	01/2023	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	128602	Valid From	01/2003	Name	Flexible hose (2 pieces) with integrated seal 65 cm metal (replaced by 119416 and 119417) NF
Position Number	13	Art. ID	126945	Valid From	01/2003	Name	Stabilization triangle mixer taps BLANCO
Position Number	12	Art. ID	119417	Valid From	01/2003	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119416	Valid From	01/2003	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number	13	Art. ID	117184	Valid From	01/2003	Name	Stabilising plate (replaced by 126945) NF
Position Number		Art. ID	513383	Valid From	01/2003	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2003	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2003	Name	Flexible sealing tape
