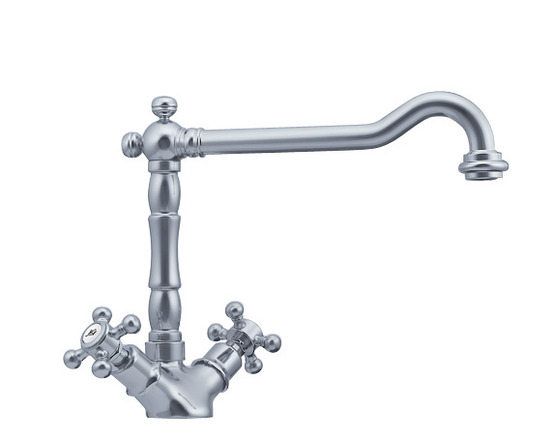

BLANCO TERA, brass galvanic, stainless steel finish, High Pressure

BLANCO TERA, brass galvanic, stainless steel finish, High Pressure

                    Article Number
                    512599


no longer available since 03/2015

Article-Version: Article also available in other versions!

BLANCO TERA, brass galvanic, chrome, High Pressure

512597

BLANCO TERA, brass galvanic, brushed brass, High Pressure

512590

Added to Your Shopping Cart

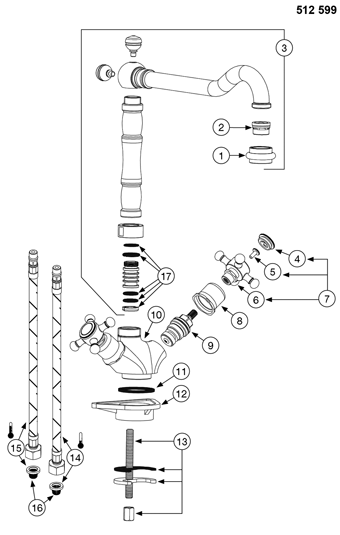

Spare Parts

Valid From	Name
Position Number	1	Art. ID	139009	Valid From	01/2003	Name	Housing jet regulator TERA stainless steel finish, Low Pressure
Position Number	2	Art. ID	117736	Valid From	01/2003	Name	Insert jet regulator HP with seal BL (KP), High Pressure

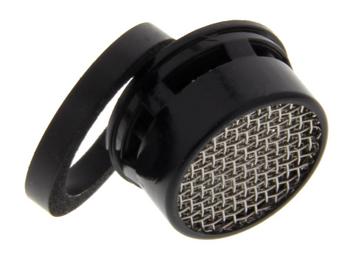

Position Number		Art. ID	139010	Valid From	01/2003	Name	Insert jet regulator HP plastic with seal MZ (replaced 117736), High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2003	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)

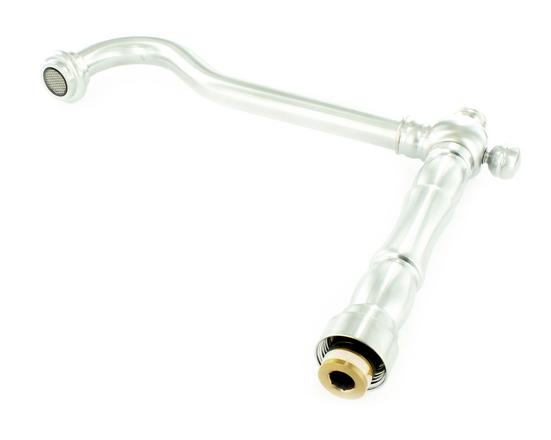

Position Number	3	Art. ID	119929 (4 / E)	Valid From	09/2011	Name	Spout TERA stainless steel finish (+Revision 04) MZ

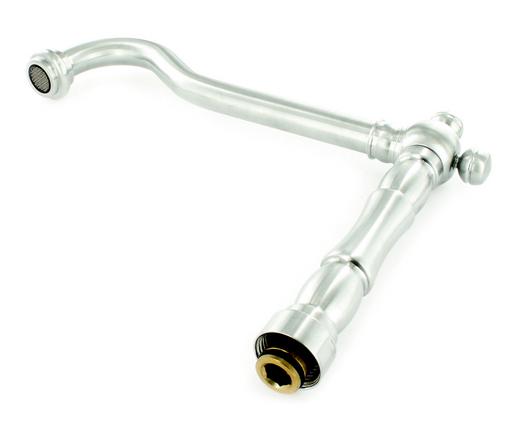

Position Number		Art. ID	139012 (0 / A)	Valid From	01/2003	Name	Spout TERA stainless steel finish complete (Revision 03)
Position Number	4	Art. ID	139014	Valid From	01/2003	Name	Color caps turn.ha. TERAstl.stlfin.1pair
Position Number	5	Art. ID	139015	Valid From	01/2003	Name	Screw for turning handle TERA (replaced by 139018,019 + 139766)
Position Number	6	Art. ID	139017	Valid From	01/2003	Name	Turning handle TERA stainless steel finish (replaced by 139019)

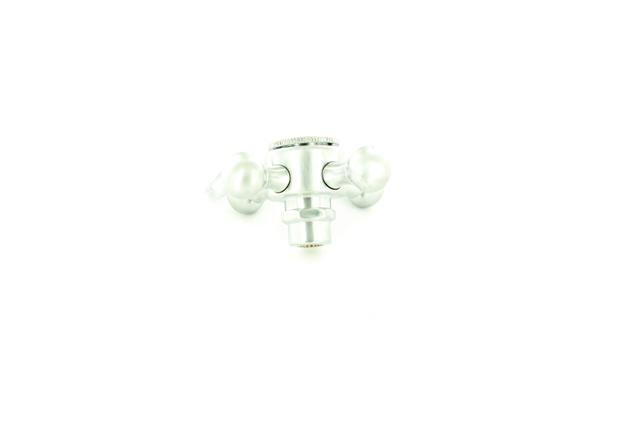

Position Number	7	Art. ID	139019	Valid From	01/2003	Name	Handle, screw + 2 caps TERA stainless steel finish

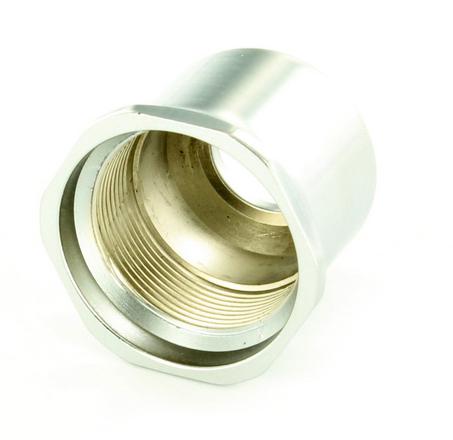

Position Number	8	Art. ID	139021	Valid From	01/2003	Name	Cover cylinder TERA stainless steel finish
Position Number	9	Art. ID	121411	Valid From	01/2003	Name	Valve TERA KP, brass, High Pressure

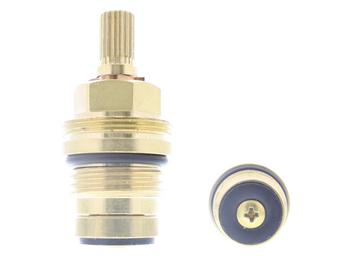

Position Number		Art. ID	139022	Valid From	01/2003	Name	Valve TERA (replaced by 121411) MZ, brass, Low Pressure

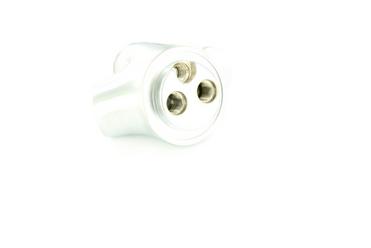

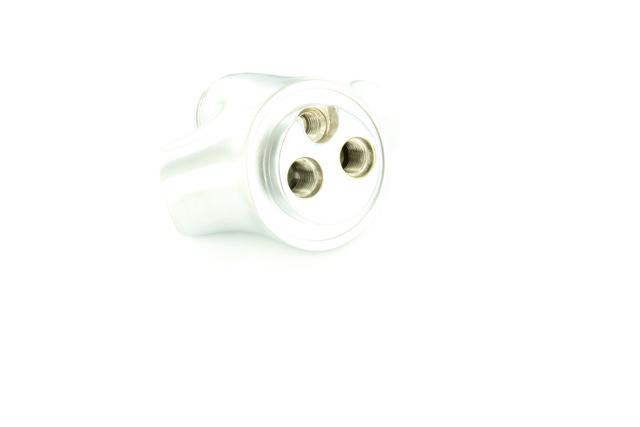

Position Number	10	Art. ID	139024	Valid From	01/2003	Name	Body TERA HP stainless steel finish

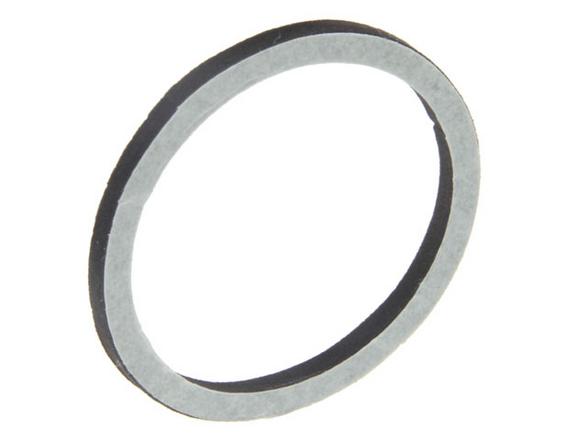

Position Number	11	Art. ID	139027	Valid From	01/2003	Name	Seal TERA under body
Position Number	12	Art. ID	126945	Valid From	01/2003	Name	Stabilization triangle mixer taps BLANCO

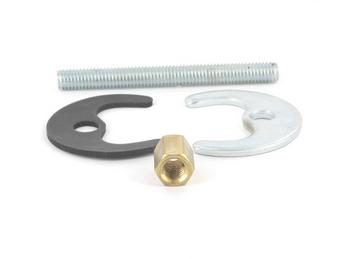

Position Number	13	Art. ID	116398 (1 / B)	Valid From	01/2003	Name	Assembly set TERA/CITO

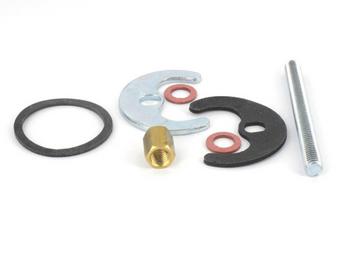

Position Number		Art. ID	139026 (0 / A)	Valid From	01/2003	Name	Assembly set BLANCO TERA (replaced by 116398)
Position Number	14	Art. ID	123947 (3 / D)	Valid From	06/2019	Name	Flexible hose 50 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123019 (3 / D)	Valid From	06/2019	Name	Flexible hose blue with filter gasket facelift 45 cm metal M 10x1 (replaced by 123947)
Position Number		Art. ID	119568 (3 / D)	Valid From	01/2011	Name	Flexible hose HP blue with gasket/mud guard 45 cm metal Ø = 8 mm M10x1 BL (replaced by 123019)
Position Number	15	Art. ID	123946 (3 / D)	Valid From	06/2019	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123018 (3 / D)	Valid From	06/2019	Name	Flexible hose red with filter gasket facelift 45cm metal M 10x1 (replaced by 123946)
Position Number		Art. ID	119569 (3 / D)	Valid From	01/2011	Name	Flexible hose HP red with gasket/mud guard 45 cm metal Ø = 8 mm M10x1 BL (replaced by 123018)

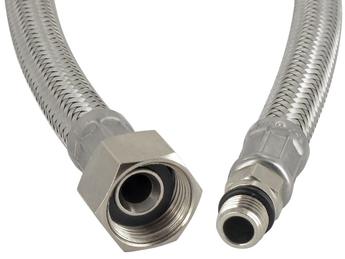

Position Number		Art. ID	116388 (1 / B)	Valid From	01/2003	Name	Flexible hose with integrated seal 35 cm metal (replaced by 119569 and 119568)

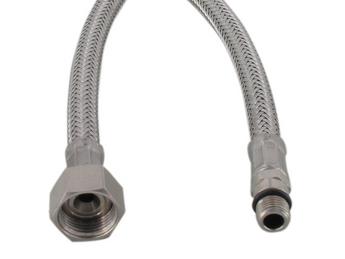

Position Number		Art. ID	139025 (0 / A)	Valid From	01/2003	Name	Flexible hose without seal 35cm metal (replaced by 116388)
Position Number	16	Art. ID	118840 (3 / D)	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	127401 (0 / A)	Valid From	01/2003	Name	Seal flexible pipe 3/8" (1 piece)

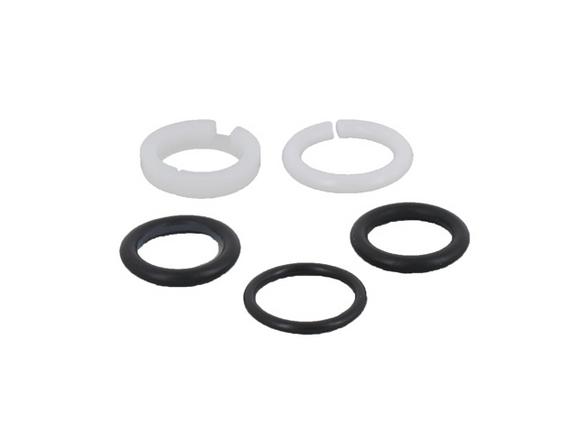

Position Number	17	Art. ID	120630	Valid From	01/2003	Name	Set seals spout TERA (5 rings) MZ
Position Number		Art. ID	513383	Valid From	01/2003	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2003	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	01/2003	Name	Flexible sealing tape
