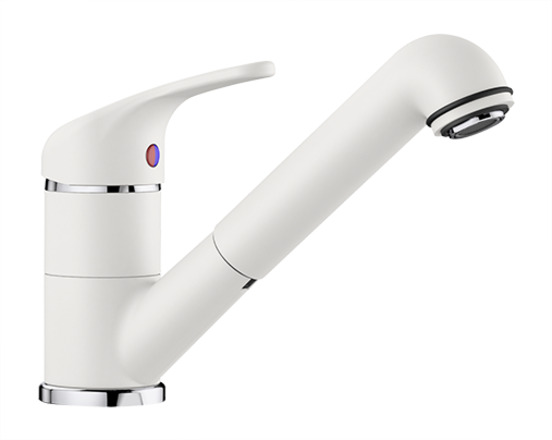

BLANCO VITIS-S, brass SILGRANIT-Look, white, High Pressure

BLANCO VITIS-S, brass SILGRANIT-Look, white, High Pressure

                    Article Number
                    515370


no longer available since 12/2021

Article-Version: Article also available in other versions!

BLANCO VITIS-S, brass SILGRANIT-Look, silk grey, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	118758 (C)	Valid From	10/2010	Name	Lever VITIS-S/ DARAS-S silgranit white color index C, white

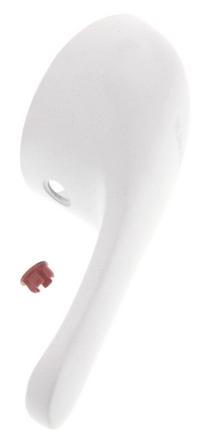

Position Number		Art. ID	116926 (A,B)	Valid From	01/2008	Name	Lever VITIS-S/ DARAS-S silgranit white color index B, white
Position Number	2	Art. ID	116871	Valid From	01/2008	Name	Cap on lever AV
Position Number	3	Art. ID	116803	Valid From	01/2008	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	139188	Valid From	01/2008	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	116912	Valid From	01/2008	Name	Cover ring VITIS-S, ARUM/-S chrome AV
Position Number	5	Art. ID	116805	Valid From	01/2008	Name	Locknut cartridge AV
Position Number		Art. ID	116847	Valid From	01/2008	Name	Lock ring cartridge (replaced by 116805) AV
Position Number		Art. ID	127433	Valid From	01/2008	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	01/2008	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	121897	Valid From	01/2008	Name	BLANCO Cartridge 40 mm HP CT (replaced by 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	01/2008	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure
Position Number		Art. ID	116806	Valid From	01/2008	Name	Cartridge HP TRADON KE AV (replaced by 116806, 121895 or 121897), blue, High Pressure
Position Number	7	Art. ID	118759 (C)	Valid From	10/2010	Name	Cover cylinder silgranit white colourindex C AV
Position Number		Art. ID	116820 (A,B)	Valid From	01/2008	Name	Cover cylinder silgranit white colourindex B AV
Position Number		Art. ID	116848	Valid From	01/2008	Name	Set of plastic rings ANTAS-S
Position Number	8	Art. ID	116916	Valid From	01/2008	Name	O-ring and teflon ring ARUM-S, VITIS-S AV (replaced by 116848)
Position Number	9	Art. ID	116917	Valid From	01/2008	Name	Inner body VITIS-S AV
Position Number	10	Art. ID	118760 (C)	Valid From	10/2010	Name	Outer body VITIS-S silgranit white colourindex C
Position Number		Art. ID	116928 (A,B)	Valid From	01/2008	Name	Outer body VITIS-S silgranit white colourindex B
Position Number	11	Art. ID	116919	Valid From	01/2008	Name	Base + Teflon ring ARUM-S/VITIS-S AV
Position Number	12	Art. ID	118761 (C)	Valid From	10/2010	Name	Spray head VITIS-S HP silgranit white complete colourindex C SILGRANIT-Look, white, High Pressure

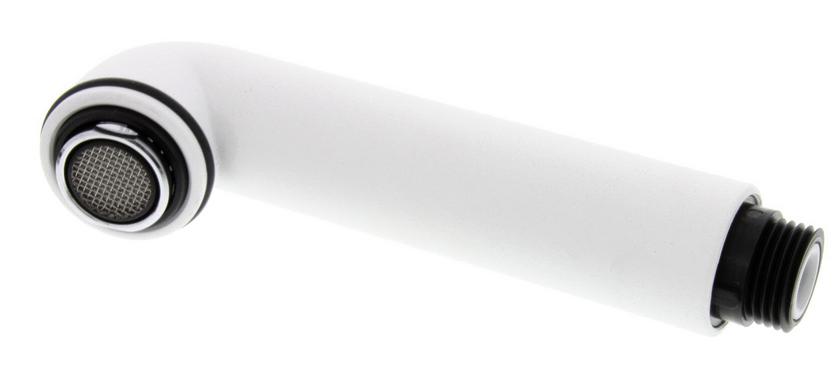

Position Number		Art. ID	116929 (A,B)	Valid From	01/2008	Name	Spray head VITIS-S HP silgranit white complete colourindex B SILGRANIT-Look, white, High Pressure
Position Number	13	Art. ID	117344	Valid From	01/2008	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	01/2008	Name	Jet regulator set HP OT M24x1 AF22 chrome (replace by 117344) NE, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2008	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2008	Name	Key for jet regulator/-splitter (1 piece)
Position Number	14	Art. ID	124210	Valid From	01/2008	Name	Shower hose 150cm M15x1 nylon black MP
Position Number		Art. ID	139909	Valid From	01/2008	Name	Spray hose with seal 150 cm nylon BL (NF) (replaced by 124210)
Position Number		Art. ID	120975	Valid From	01/2008	Name	Spray hose with seals 150 cm nylon (replaced by 139909) AV
Position Number		Art. ID	116853	Valid From	01/2008	Name	Spray hose + seals AV 150 cm metal (replaced by 120975)
Position Number	15	Art. ID	123935	Valid From	01/2008	Name	Flexible hose 50 cm blue ST B FI EU 3/8" - M8x1 NE
Position Number		Art. ID	122472	Valid From	01/2008	Name	Flexible hose blue+ filter gasked facelift 50 cm metal AV (replaced by 123935)
Position Number		Art. ID	120133	Valid From	01/2008	Name	Flexible hose blue with gasket/mud guard 50 cm metal M8x1 BL(AV) (replaced by 122472)
Position Number		Art. ID	120415	Valid From	01/2008	Name	Flexible hose blue with gasket/mud guard 45 cm metal M8x1 (replaced by 120133) AV
Position Number		Art. ID	123934	Valid From	01/2008	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M8x1 NE
Position Number		Art. ID	122473	Valid From	01/2008	Name	Flexible hose red met filter gasket facelift 50 cm metal AV (replaced by 123934)
Position Number		Art. ID	120134	Valid From	01/2008	Name	Flexible hose red with gasket/mud guard 50 cm metal M8x1 BL (AV) (replaced by 122473)
Position Number		Art. ID	120416	Valid From	01/2008	Name	Flexible hose red with gasket/mud guard 45 cm metal M8x1 (replaced by 120134) AV
Position Number		Art. ID	116854	Valid From	01/2008	Name	Flexible hose (2 pieces) with integrated seal 45 cm metal (replaced by 120415 and 120416) AV
Position Number		Art. ID	116922	Valid From	01/2008	Name	Flexible hose (1 pair) 45 cm metal(replaced by 116854) AV
Position Number	16	Art. ID	119679	Valid From	01/2008	Name	Connection hose without seal 20 cm metal ET M10x1 x IT M15x1 - AV
Position Number		Art. ID	116855	Valid From	01/2008	Name	Flexible hose for spray without seal 20 cm metal (replaced by 119679) AV
Position Number		Art. ID	116923	Valid From	01/2008	Name	Flexible hose VITIS-S 20 cm metal (replaced by 116855)
Position Number	17	Art. ID	116856	Valid From	01/2008	Name	Assembly set inclusive stabilizing plate AV
Position Number	18	Art. ID	123063	Valid From	01/2008	Name	Weight for shower hose (200g) AV
Position Number		Art. ID	125764	Valid From	01/2008	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number		Art. ID	116857	Valid From	01/2008	Name	Weight (233g) ( replaced by 125764 or 128707) AV
Position Number	19	Art. ID	126945	Valid From	02/2012	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	119557	Valid From	02/2012	Name	Stabilizing plate (replaced by 126945) AV
Position Number		Art. ID	117739	Valid From	01/2008	Name	Stabilizing plate (replaced by 119557) AV
Position Number	20	Art. ID	119825	Valid From	01/2008	Name	Fitting piece spray head TIVO-S /-F AV
Position Number		Art. ID	118333	Valid From	01/2008	Name	Fitting piece spray head VITIS-S, ARUM-S, ANTAS-S AV (replaced by 119825)
Position Number	21	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	513383	Valid From	01/2008	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2008	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/2008	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/2008	Name	Flexible sealing tape
