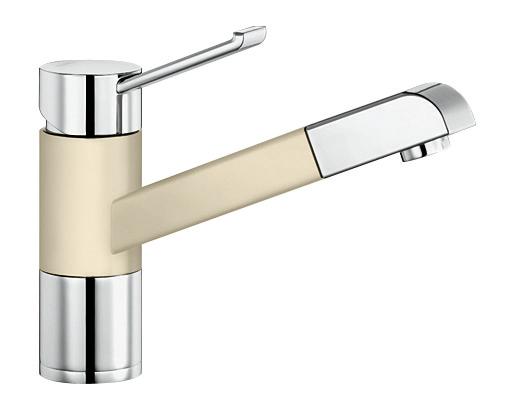

BLANCO ZENOS-S, brass Ceramic-Look dual finish, jasmine/chrome, High Pressure

BLANCO ZENOS-S, brass Ceramic-Look dual finish, jasmine/chrome, High Pressure

                    Article Number
                    517833


no longer available since 03/2016

Article-Version: Article also available in other versions!

BLANCO ZENOS-S, brass Ceramic-Look dual finish, black/chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	123283	Valid From	07/2011	Name	Lever chrome, chrome
Position Number		Art. ID	119598	Valid From	07/2011	Name	Lever chrome (replaced by 123283), chrome
Position Number	2	Art. ID	119599	Valid From	07/2011	Name	Cap lever chrome
Position Number	3	Art. ID	119362	Valid From	07/2011	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	07/2011	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	07/2011	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	07/2011	Name	Hex key SW 2.5 mm
Position Number	4	Art. ID	123286	Valid From	07/2011	Name	Cover ring chrome
Position Number		Art. ID	119600	Valid From	07/2011	Name	Cover ring chrome (replaced by 123286)
Position Number	5	Art. ID	123287	Valid From	07/2011	Name	Cartridge lock nut
Position Number		Art. ID	139522	Valid From	07/2011	Name	Cartridge lock nut (replaced by 123287)
Position Number		Art. ID	127433	Valid From	07/2011	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121894	Valid From	07/2011	Name	Kartusche HD Ø 35 mm, blue, High Pressure
Position Number		Art. ID	121896	Valid From	07/2011	Name	Kartusche HD Ø 35 mm (ersetzt durch 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	07/2011	Name	Kartusche HD 35 mm (ersetzt durch 121894 oder 121896), blue, High Pressure

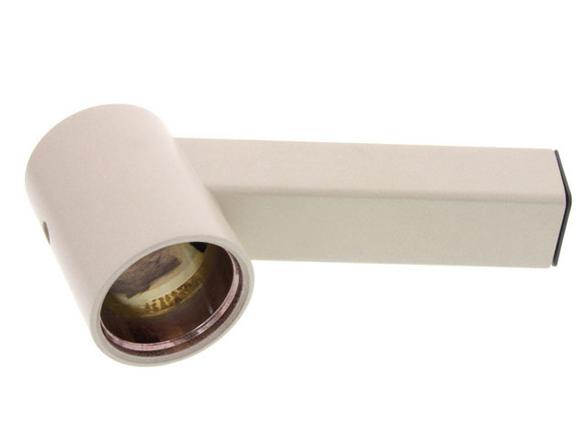

Position Number	7	Art. ID	119668	Valid From	07/2011	Name	Outer body ceramic jasmine with fitprewterg piece
Position Number	8	Art. ID	119618	Valid From	07/2011	Name	Locking screw spout
Position Number	9	Art. ID	123312	Valid From	07/2011	Name	O-Ring 35x1.2 mm
Position Number		Art. ID	119619	Valid From	07/2011	Name	O-Rings inner body set (2 pieces) (replaced by 123312)
Position Number		Art. ID	117933	Valid From	07/2011	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	07/2011	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	10	Art. ID	119606	Valid From	07/2011	Name	Assembly set including stabilization triangle
Position Number	11	Art. ID	126945	Valid From	07/2011	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	119607	Valid From	07/2011	Name	Stabilizing plate ZENOS /-S (replaced by 126945) HA
Position Number	12	Art. ID	123291	Valid From	07/2011	Name	Teflon ring set
Position Number		Art. ID	119611	Valid From	07/2011	Name	Teflon ring set (replaced by 123291)
Position Number	13	Art. ID	123063	Valid From	07/2011	Name	Weight (200g)
Position Number		Art. ID	125764	Valid From	07/2011	Name	Weight (260g) (replaced by 128707 or 123063)
Position Number	14	Art. ID	123936	Valid From	07/2011	Name	Flexible hose 70 cm red 3/8" - M8x1
Position Number		Art. ID	119375	Valid From	07/2011	Name	Flexible hose 65 cm metal red M8x1 with filter gasket (replaced by 123936)
Position Number		Art. ID	119610	Valid From	07/2011	Name	Flexible hose 60 cm metal red M8x1 with filter gasket (replaced by 119375)
Position Number	15	Art. ID	123937	Valid From	07/2011	Name	Flexible hose 70 cm blue 3/8" - M8x1
Position Number		Art. ID	119374	Valid From	07/2011	Name	Flexible hose 65 cm metal blue M8x1 with filter gasket (replaced by 123937)
Position Number		Art. ID	119609	Valid From	07/2011	Name	Flexible hose 60 cm metal blue M8x1 with filter gasket (replaced by 119374)
Position Number	16	Art. ID	119614	Valid From	07/2011	Name	Flexible hose A 50 cm metal 1/2" x M8x1 with integrated gasket
Position Number	17	Art. ID	119943	Valid From	07/2011	Name	Non-return valve including housing OT 1/2" and IT M15x1, white
Position Number		Art. ID	119646	Valid From	07/2011	Name	Non-return valve with gasket set (replaced by 119943), white
Position Number	18	Art. ID	123127	Valid From	07/2011	Name	Spray head HP chrome with hose galvanic, chrome, High Pressure
Position Number		Art. ID	119625	Valid From	07/2011	Name	Spray head interior with hose and seal (replaced by 123127 HP chrome, 139866 satin chrome HP, or 123330 LP chrome), Low Pressure
Position Number	19	Art. ID	119624	Valid From	07/2011	Name	Spray head casing chrome (replaced by 123127 HD or 123330 ND)
Position Number	20	Art. ID	116488	Valid From	07/2011	Name	Jet regulator HP chrome IT M22x1, High Pressure Spareparts
Position Number		Art. ID	119692	Valid From	07/2011	Name	Jet regulator chrome, High Pressure
Position Number		Art. ID	511324	Valid From	07/2011	Name	Aerator/distributor key
Position Number	21	Art. ID	119622	Valid From	07/2011	Name	Fitprewterg piece
Position Number	22	Art. ID	118840	Valid From	07/2011	Name	Screen filter seal 3/8" angle valve
Position Number	23	Art. ID	119616	Valid From	07/2011	Name	Seal
Position Number	24	Art. ID	116576	Valid From	07/2011	Name	Non-return valve Ø 15 mm, beige
Position Number		Art. ID	125767	Valid From	07/2011	Name	Non-return valve Ø 15 mm (replaced by 116576), beige
Position Number	25	Art. ID	117736	Valid From	07/2011	Name	Insert jet regulator HP with seal, High Pressure
Position Number		Art. ID	117409	Valid From	07/2011	Name	Insert jet regulator HP OT plastic with seal (replaced by 117736), High Pressure
Position Number	26	Art. ID	119621	Valid From	07/2011	Name	Seal spray hose below
Position Number	27	Art. ID	119605	Valid From	07/2011	Name	Outer body with base chrome and hoses
Position Number		Art. ID	513383	Valid From	07/2011	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	07/2011	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	07/2011	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	07/2011	Name	Flexible sealing tape (3 x 150 mm)
