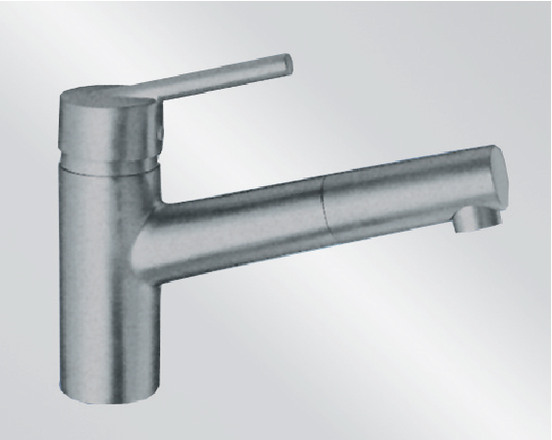

BLANCOATOS-S, brass galvanic, aluminium look, Low pressure

BLANCOATOS-S, brass galvanic, aluminium look, Low pressure

                    Article Number
                    511541


no longer available since 08/2002

Article-Version: Article also available in other versions!

BLANCOATOS-S, brass galvanic, chrome, Low pressure

Added to Your Shopping Cart

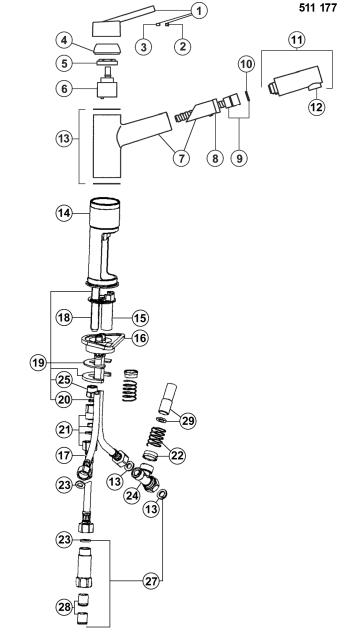

Spare Parts

Valid From	Name

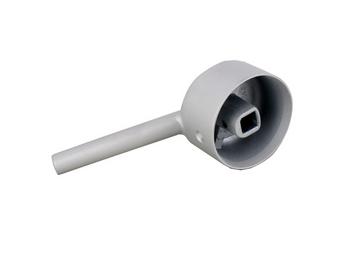

Position Number	1	Art. ID	127417	Valid From	01/2000	Name	Lever ATOS-S aluminium optic, aluminium look
Position Number	2	Art. ID	128351	Valid From	01/2000	Name	Color cap lever PHOENIX-S blue/red
Position Number		Art. ID	126510	Valid From	01/2000	Name	Color cap ATOS-S, ORION blue/red (replaced by 128351)
Position Number	3	Art. ID	126509	Valid From	01/2000	Name	Screw for lever ATOS-S, ORION
Position Number		Art. ID	139188	Valid From	01/2000	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	127418	Valid From	01/2000	Name	Cover ring ATOS-S aluminium optic
Position Number		Art. ID	128242	Valid From	01/2000	Name	Assembly tool for cover ring ATOS-S
Position Number	5	Art. ID	126512	Valid From	01/2000	Name	Locknut cartridge ATOS-S, ORION
Position Number		Art. ID	127433	Valid From	01/2000	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121492	Valid From	01/2000	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	01/2000	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	01/2000	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure
Position Number		Art. ID	127247	Valid From	01/2000	Name	Cartridge LP (replaced by 116646), blue, Low pressure

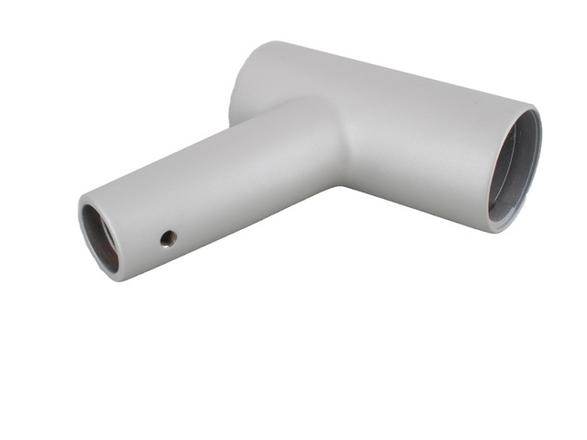

Position Number	7	Art. ID	127421	Valid From	01/2000	Name	Outer body ATOS-S aluminium optic
Position Number	8	Art. ID	127201	Valid From	01/2000	Name	Fitting piece spray head ATOS-S, COMET-S
Position Number	9	Art. ID	125763	Valid From	01/2000	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	01/2000	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number		Art. ID	126559	Valid From	01/2000	Name	Spray hose ATOS-S , ORION-S 120 cm metal (replaced by 126934)
Position Number	10	Art. ID	126764	Valid From	01/2000	Name	Seal spray hose top HA
Position Number	12	Art. ID	127422	Valid From	01/2000	Name	Holder jet splitter LP M24x1 alu optic, Low pressure
Position Number		Art. ID	127195	Valid From	01/2000	Name	Jet splitter LP ATOS-S, Low pressure
Position Number	13	Art. ID	126556	Valid From	01/2000	Name	Teflon ring ATOS-S LP, ORION-S HP
Position Number	14	Art. ID	127202	Valid From	01/2000	Name	Inner body top ATOS-S
Position Number		Art. ID	127177	Valid From	01/2000	Name	Inner body bottom ATOS-S, COMET-S
Position Number	15	Art. ID	127191	Valid From	01/2000	Name	Hose guide ATOS-S, COMET-S, ORION-S
Position Number	16	Art. ID	126945	Valid From	01/2000	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126531	Valid From	01/2000	Name	Stabilising plate (replaced by 126945)
Position Number	17	Art. ID	121656	Valid From	01/2000	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	01/2000	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)

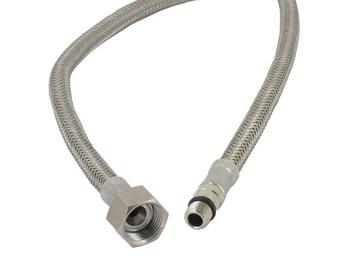

Position Number		Art. ID	127204	Valid From	01/2000	Name	Flexible hose boiler without seal 50 cm metal M10x1 (replaced by 119913) CR
Position Number	18	Art. ID	127193	Valid From	01/2000	Name	Thread rod ATOS-S
Position Number	19	Art. ID	126571	Valid From	01/2000	Name	Assembly set ATOS-S, ORION-S
Position Number		Art. ID	126549	Valid From	01/2000	Name	Assembly set ORION LP, ORION-A complete
Position Number		Art. ID	126578	Valid From	01/2000	Name	Connection thread rod ORION-S HP
Position Number		Art. ID	126579	Valid From	01/2000	Name	Connection flexible hose ORION-S HP
Position Number		Art. ID	126580	Valid From	01/2000	Name	O-ring connection spray hose ORION-S HP
Position Number		Art. ID	128815	Valid From	01/2000	Name	Non-return valve (replaced by 126578 or 126579 or 126580)
Position Number	20	Art. ID	126544	Valid From	01/2000	Name	Seal for threaded pipe ATOS-S
Position Number	21	Art. ID	127203	Valid From	01/2000	Name	Flexible hose with flow regulator LP ATOS,COMET 44 cm metal
Position Number	22	Art. ID	126570	Valid From	01/2000	Name	Spring ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	126569	Valid From	01/2000	Name	Spring fastener ATOS-S, COMET-S, ORION-S
Position Number	23	Art. ID	127401	Valid From	01/2000	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	127068	Valid From	01/2000	Name	Seal flexible pipe ATOS-S, ORION-S (replaced by 127401)
Position Number		Art. ID	126534	Valid From	01/2000	Name	Seal flexible pipe (replaced by 127068)
Position Number	24	Art. ID	127281	Valid From	01/2000	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number		Art. ID	125827	Valid From	01/2000	Name	T-piece S LP ARGON, ELIPSO, MERKUR (replace by 127281) HA
Position Number		Art. ID	126572	Valid From	01/2000	Name	T-piece LP ATOS-S, ORION-S (replaced by 125827)
Position Number	25	Art. ID	126548	Valid From	01/2000	Name	Assembly nut ATOS-S LP, ORION
Position Number	26	Art. ID	126551	Valid From	01/2000	Name	Flow regulator LP ATOS, COMET, ORION
Position Number	27	Art. ID	126143	Valid From	01/2000	Name	Double non-return valve fiber sael ATOS,COMET,PALLAS
Position Number	28	Art. ID	128741	Valid From	01/2000	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	126574	Valid From	01/2000	Name	Non-return valve LP ATOS-S, ORION-S (replaced by 128741), blue
Position Number	29	Art. ID	126762	Valid From	01/2000	Name	Seal spray hose bottom 13,7x10x1,5 HA
Position Number		Art. ID	513383	Valid From	01/2000	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2000	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/2000	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/2000	Name	Flexible sealing tape
