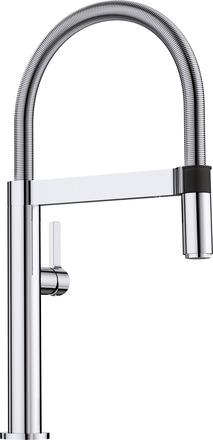

BLANCOCULINA-S Mini, brass galvanic, chrome, High Pressure

BLANCOCULINA-S Mini, brass galvanic, chrome, High Pressure

                    Article Number
                    519843


ATTENTION! Position of lever was changed to cold-start. Please check warm and cold mark on lever to specify correct part.
no longer available since 04/2024

Article-Version: Article also available in other versions!

BLANCOCULINA-S Mini, brass galvanic, stainless steel finish, High Pressure

519844

Added to Your Shopping Cart

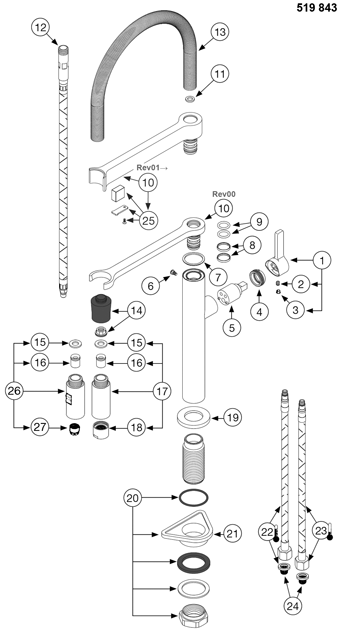

Spare Parts

Valid From	Name

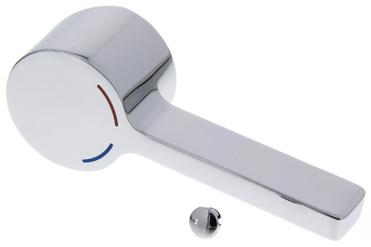

Position Number	1	Art. ID	123492 (5 / F)	Valid From	11/2018	Name	Lever CULINA-S MINI chrome complete Rev 05 NF, chrome

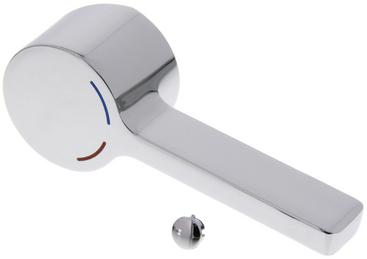

Position Number		Art. ID	121086	Valid From	03/2014	Name	Lever CULINA-S MINI chrome complete NF, chrome
Position Number	2	Art. ID	139443	Valid From	03/2014	Name	Hex socket screw lever wrench size = 2,5 mm NF
Position Number		Art. ID	139188	Valid From	03/2014	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	121087	Valid From	03/2014	Name	Cap for lever chrome NF
Position Number	4	Art. ID	121088	Valid From	03/2014	Name	Locknut cartridge chrome NF
Position Number		Art. ID	121267	Valid From	03/2014	Name	Tool cartridge locknut CULINA-S Mini NF
Position Number	5	Art. ID	122604	Valid From	03/2014	Name	Cartridge HP 25 mm K-25NM KE VE, blue, High Pressure

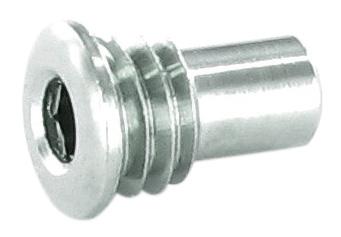

Position Number	6	Art. ID	121089	Valid From	03/2014	Name	Locking screw outlet NF
Position Number	7	Art. ID	121090	Valid From	03/2014	Name	Seal upper body CULINA-S MINI NF

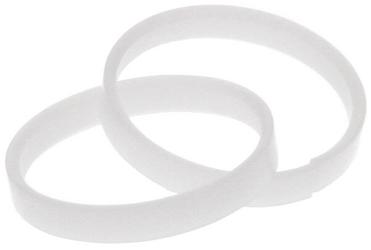

Position Number	8	Art. ID	121091	Valid From	03/2014	Name	Set plastic rings (2 pieces) NF

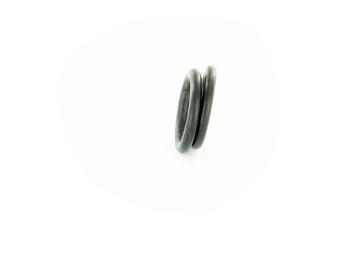

Position Number	9	Art. ID	139944	Valid From	03/2014	Name	Set O-rings (2 pieces) NF
Position Number		Art. ID	117933	Valid From	03/2014	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	03/2014	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	10	Art. ID	121816 (1 / B)	Valid From	01/2015	Name	Support spray CULINA-S Mini chrome Rev01 NF
Position Number		Art. ID	121092 (0 / A)	Valid From	03/2014	Name	Support spray head CULINA-S Mini chrome NF

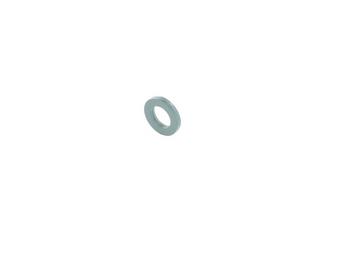

Position Number	11	Art. ID	121093	Valid From	03/2014	Name	Seal spray hose bottom NF

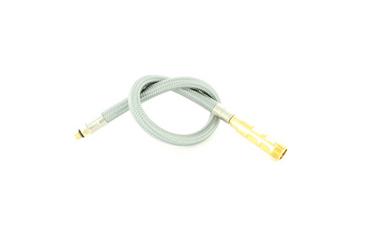

Position Number	12	Art. ID	121094	Valid From	03/2014	Name	Shower hose CULINA-S MINI 46 cm metal NF

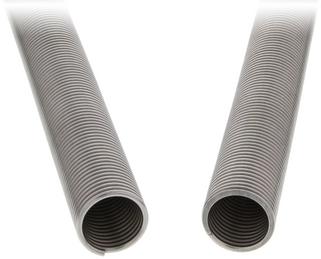

Position Number	13	Art. ID	121095	Valid From	03/2014	Name	Outer spring CULINA-S MINI stainless steel NF
Position Number	14	Art. ID	121864 (1 / B)	Valid From	01/2015	Name	Mounting spray head CULINA-S MINI Rev01 NF
Position Number		Art. ID	121096	Valid From	03/2014	Name	Mounting spray head CULINA-S MINI NF
Position Number	15	Art. ID	139345	Valid From	03/2014	Name	Seal spray hose top NF + SO
Position Number	16	Art. ID	128741	Valid From	03/2014	Name	Non-return valve Ø 14mm NE, blue
Position Number	17	Art. ID	121097	Valid From	03/2014	Name	Spray head CULINA-S MINI chrome NF galvanic, chrome, High Pressure
Position Number	18	Art. ID	116488	Valid From	03/2014	Name	Jet regulator set HP IT M22x1 AF 22 chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	139084	Valid From	03/2014	Name	Jet regulator set HP chrome (replace by 116488) NF, High Pressure Spareparts
Position Number		Art. ID	511324	Valid From	03/2014	Name	Key for jet regulator/-splitter (1 piece)
Position Number	19	Art. ID	122701 (3 / D)	Valid From	12/2016	Name	Base chrome CULINA-S MINI Rev03 NF
Position Number		Art. ID	121098 (0 / A)	Valid From	03/2014	Name	Base chrome CULINA-S MINI NF
Position Number	20	Art. ID	121099	Valid From	03/2014	Name	Assembly set CULINA-S MINI NF
Position Number	21	Art. ID	126945	Valid From	03/2014	Name	Stabilization triangle mixer taps BLANCO
Position Number	22	Art. ID	123936	Valid From	03/2014	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M8x1 NE
Position Number		Art. ID	119375	Valid From	03/2014	Name	Flexible hose red with gasket/mud guard 65 cm metal M8x1 BL (NF+SO) (replaced by 123936)
Position Number	23	Art. ID	123937	Valid From	03/2014	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M8x1 NE
Position Number		Art. ID	119374	Valid From	03/2014	Name	Flexible hose blue with gasket/mud guard 65 cm metal M8x1 BL (NF+SO) (replaced by 123937)
Position Number	24	Art. ID	118840	Valid From	03/2014	Name	Filter gasket for 3/8" corner valve
Position Number	25	Art. ID	119368	Valid From	03/2014	Name	Magnet + cover + screw CULINA-S / Mini NF
Position Number	26	Art. ID	121272	Valid From	03/2014	Name	Spray head CULINA-S Mini chrome switchable NF galvanic, chrome, High Pressure
Position Number	27	Art. ID	122422	Valid From	03/2014	Name	Aerator set CULINA-S Mini switchable NE, High Pressure

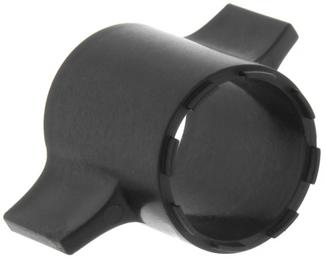

Position Number		Art. ID	122423	Valid From	03/2014	Name	Aerator key CULINA-S Mini switchable NF
Position Number		Art. ID	513383	Valid From	03/2014	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	03/2014	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	03/2014	Name	Flexible sealing tape
