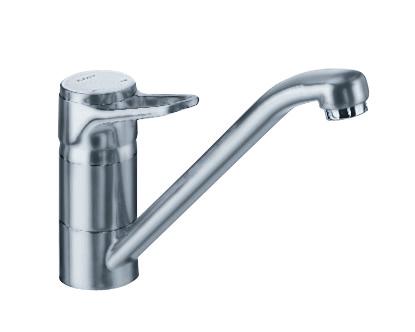

BLANCOORION, brass galvanic, stainless steel finish, High Pressure
Article Number 512542
Mixer tap available from 01.10.2003 until 31.03.2017!
no longer available since 03/2017
Article-Version: Article also available in other versions!

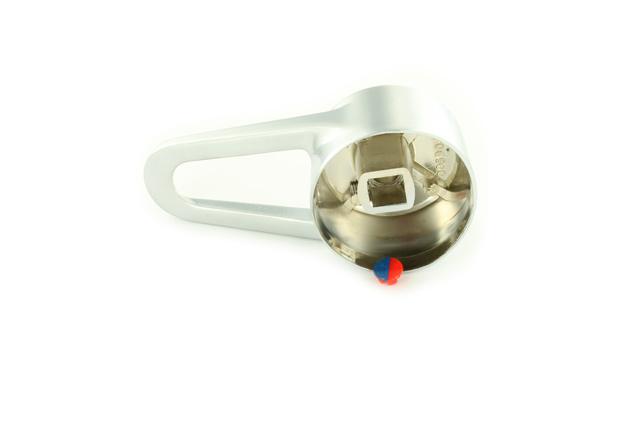

1 139051 10/2003 Lever stainless finish with screw
2 126959 10/2003 Color cap lever
3 116803 10/2003 Screw lever M5x6 hexagon socket 2.5 mm
116503 10/2003 Screw lever M5x6 conical 2.5 mm (replaced by 116803)
126960 10/2003 Screw lever (replaced by 116503)
139188 10/2003 Hex key SW 2.5 mm

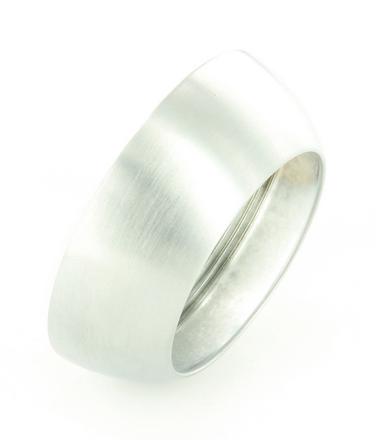

4 139052 10/2003 Cover ring stainless steel finish
5 127375 10/2003 Cartridge lock nut
127433 10/2003 Cartridge spannerhex SW 30 mm and 36 mm
6 121895 10/2003 Kartusche HD Ø 40 mm, blue, High Pressure
121897 10/2003 Kartusche HD Ø 40 mm (ersetzt durch 121895), blue, High Pressure
118788 10/2003 Kartusche HD 40 mm (ersetzt durch 121895 oder 121897), blue, High Pressure
116119 10/2003 Kartusche HD 40 mm (ersetzt durch 118788/116806), blue, High Pressure
127283 10/2003 Kartusche HD 40 mm (ersetzt durch 116119), green, High Pressure

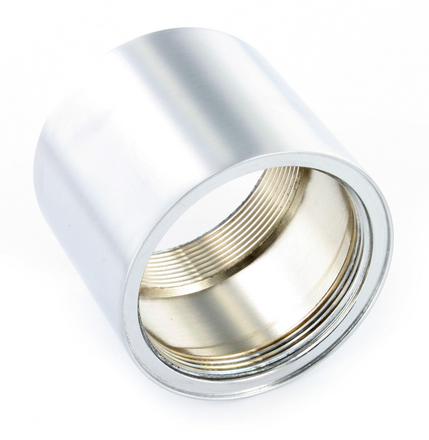

7 139053 10/2003 Cover cylinder stainless steel finish
8 127386 10/2003 Teflon ring

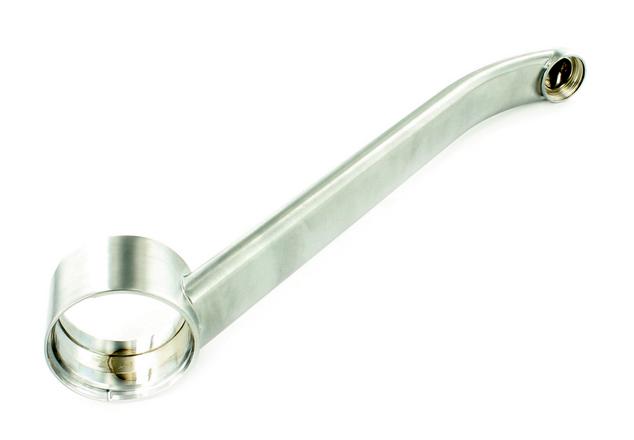

9 139054 10/2003 Spout stainless finish
10 139055 10/2003 Jet regulator HP stainless steel finish OT M24x1, High Pressure

Spareparts
117501 06/2001 Seal aerator TT 11.0 x 15.0 x 1.5 mm
511324 10/2003 Aerator/distributor key
11 127398 10/2003 Body seal
117933 10/2003 Tap grease 25 g tube Berulub Sihaf 2
117934 10/2003 Tap grease 5 g pouch Berulub Sihaf 2

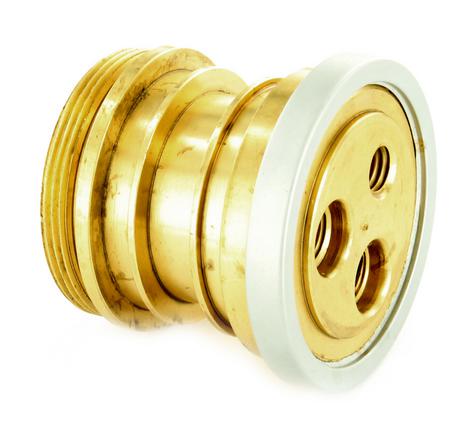

12 139056 10/2003 Inner body HP stainless steel finish
14 119565 01/2011 Assembly set including gasket
116397 05/2007 Assembly set (replaced by 119565)
128040 10/2003 Assembly set
15 126945 09/2001 Stabilization triangle kitchen fitprewtergs plastic
20 123946
(7 / H)
06/2019 Flexible hose 50 cm red 3/8" - M10x1
123018
(7 / H)
06/2019 Flexible hose 45 cm red 3/8" - M10x1 (replaced by 123946)
119569
(7 / H)
01/2011 Flexible hose 45 cm metal red M10x1 Ø 8 mm with filter gasket (replaced by 123018)
116382
(5 / F)
05/2007 Flexible hose 45 cm metal red with integrated gasket (replaced by 119569)
21 123947
(7 / H)
06/2019 Flexible hose 50 cm blue 3/8"- M10x1
123019
(7 / H)
06/2019 Flexible hose 45 cm blue 3/8"- M10x1 (replaced by 123947)
119568
(7 / H)
01/2011 Flexible hose 45 cm metal blue Ø 8 mm M10x1 with filter gasket (replaced by 123019)
116381
(5 / F)
05/2007 Flexible hose 45 cm metal blue with integrated gasket (replaced by 119568)
126870
(0 / A)
10/2003 Flexible hose 50 cm metal without gasket (replaced by 116381)
126871
(0 / A)
10/2003 Flexible hose 50 cm metal long nut
22 118840
(7 / H)
01/2011 Screen filter seal 3/8" angle valve
127401
(0 / A)
10/2003 Fiber seal flex hose 3/8" (1 piece)
513384 05/2007 Additional stabilising plate for taps 75mm
513383 10/2003 Additional stabilising plate for taps 60mm
120055 10/2003 Flexible sealing tape (3 x 150 mm)
