BLANCOORION-A, brass galvanic, white, High Pressure

BLANCOORION-A, brass galvanic, white, High Pressure

                    Article Number
                    511382


no longer available since 08/2003

Article-Version: Article also available in other versions!

BLANCOORION-A, brass galvanic, chrome, High Pressure

511381

BLANCOORION-A, brass galvanic, brown, High Pressure

511383

Added to Your Shopping Cart

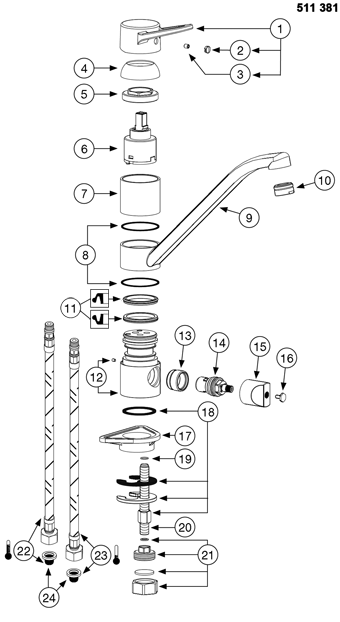

Spare Parts

Valid From	Name
Position Number	1	Art. ID	127981	Valid From	06/2001	Name	Lever ORION white complete with screw, white
Position Number		Art. ID	126507	Valid From	02/2000	Name	Lever with cap ORION white complete, white
Position Number		Art. ID	126502	Valid From	02/2000	Name	Cover for lever ORION white, white
Position Number		Art. ID	126504	Valid From	02/2000	Name	O-ring for lever cap ORION
Position Number	2	Art. ID	126959	Valid From	06/2001	Name	Color cap lever MZ
Position Number		Art. ID	128351	Valid From	02/2000	Name	Color cap lever PHOENIX-S blue/red
Position Number		Art. ID	126510	Valid From	02/2000	Name	Color cap ATOS-S, ORION blue/red (replaced by 128351)
Position Number	3	Art. ID	116803	Valid From	06/2001	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	06/2001	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	06/2001	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	126509	Valid From	02/2000	Name	Screw for lever ATOS-S, ORION
Position Number		Art. ID	139188	Valid From	02/2000	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	128028	Valid From	06/2001	Name	Cover ring ORION white brass
Position Number		Art. ID	127074	Valid From	02/2000	Name	Cover ring ORION HP /-A white
Position Number		Art. ID	128241	Valid From	02/2000	Name	Assembly tool for cover ring ORION-S
Position Number	5	Art. ID	127375	Valid From	06/2001	Name	Locknut cartridge ORION, PALLAS
Position Number		Art. ID	126512	Valid From	02/2000	Name	Locknut cartridge ATOS-S, ORION
Position Number		Art. ID	127433	Valid From	02/2000	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	02/2000	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	121897	Valid From	02/2000	Name	BLANCO Cartridge 40 mm HP CT (replaced by 121895), blue, High Pressure
Position Number		Art. ID	118788	Valid From	02/2000	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure
Position Number		Art. ID	116119	Valid From	02/2000	Name	Cartridge HP ORION / -S / -A (replace by 118788/116806), blue, High Pressure
Position Number		Art. ID	127283	Valid From	06/2001	Name	Cartridge HP (replaced by 116119), green, High Pressure
Position Number		Art. ID	126513	Valid From	02/2000	Name	Cartridge HP (replaced by 116119), green, High Pressure
Position Number	7	Art. ID	128032	Valid From	06/2001	Name	Cover cylinder ORION white

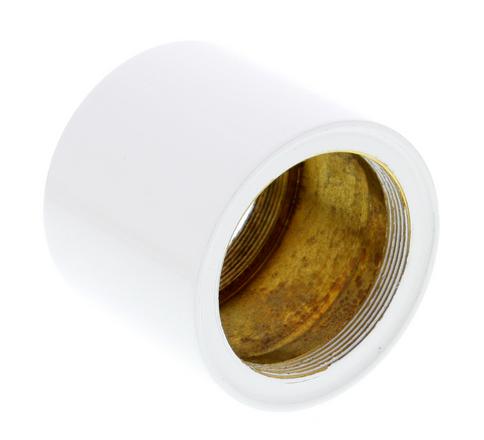

Position Number		Art. ID	127130	Valid From	02/2000	Name	Cover cylinder ORION-A white
Position Number	8	Art. ID	127386	Valid From	06/2001	Name	Teflon ring ORION, PALLAS
Position Number		Art. ID	126519	Valid From	02/2000	Name	Teflon ring ORION
Position Number	9	Art. ID	128035	Valid From	06/2001	Name	Spout ORION white
Position Number		Art. ID	126542	Valid From	02/2000	Name	Spout ORION white old
Position Number	10	Art. ID	117344	Valid From	02/2000	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	02/2000	Name	Jet regulator set HP OT M24x1 AF22 chrome (replace by 117344) NE, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	02/2000	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	126523	Valid From	02/2000	Name	Jet regulator HP (replaced by 127170), High Pressure
Position Number		Art. ID	511324	Valid From	02/2000	Name	Key for jet regulator/-splitter (1 piece)
Position Number	11	Art. ID	127398	Valid From	06/2001	Name	Body seal ORION, PALLAS
Position Number		Art. ID	127132	Valid From	02/2000	Name	Seal set ORION-A
Position Number		Art. ID	126520	Valid From	02/2000	Name	Seal ORION (replaced by 126522)
Position Number		Art. ID	117933	Valid From	02/2000	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/2000	Name	Grease for mixer tap 5g Berulub Sihaf 2

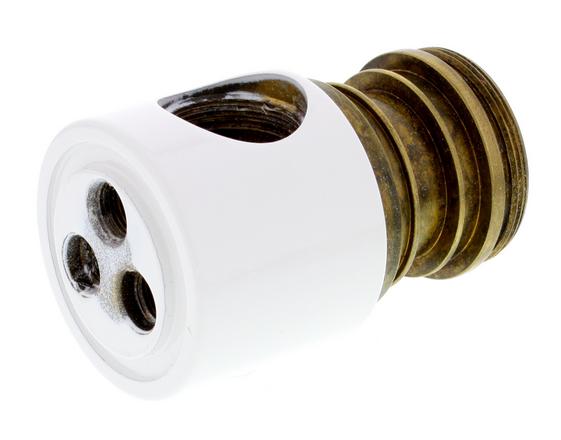

Position Number	12	Art. ID	128044	Valid From	06/2001	Name	Inner body ORION-A white complete

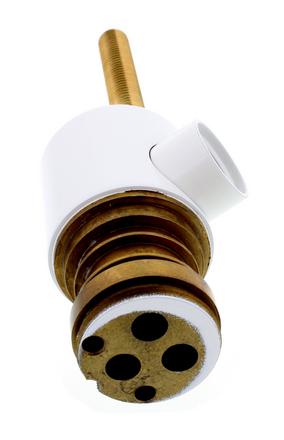

Position Number		Art. ID	127142	Valid From	02/2000	Name	Inner body white + valve seat + threaded part ORION-A
Position Number		Art. ID	127134	Valid From	02/2000	Name	Bolt catch ORION-A for tap body

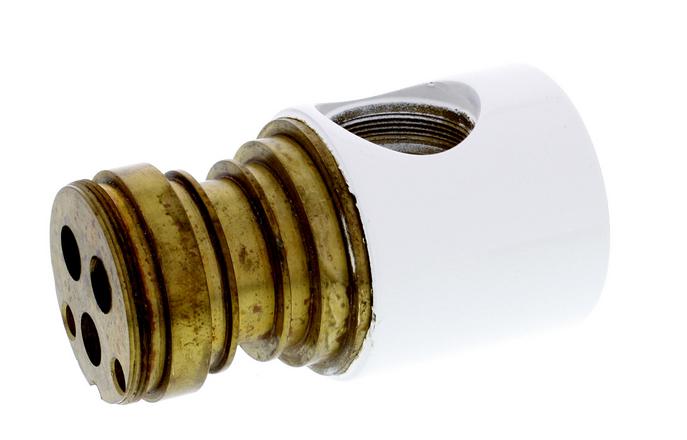

Position Number		Art. ID	127137	Valid From	02/2000	Name	Inner body white without valve seat + threaded part
Position Number	13	Art. ID	128047	Valid From	06/2001	Name	Valve seat shut-off valve ORION-A white
Position Number		Art. ID	127139	Valid From	02/2000	Name	O-ring ORION-A for shut-off valve
Position Number	14	Art. ID	128049	Valid From	06/2001	Name	Shut-off valve ORION-A with screw modified version, brass, High Pressure

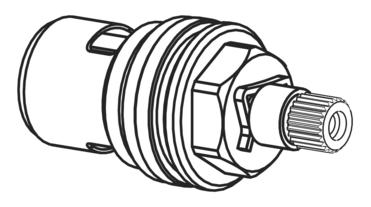

Position Number		Art. ID	127144	Valid From	02/2000	Name	Shut-off valve ORION-A, brass, High Pressure

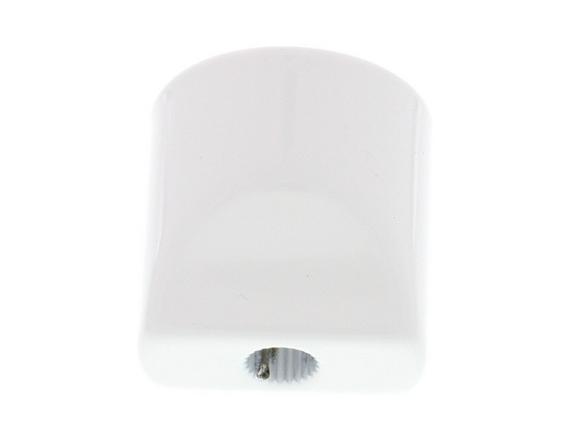

Position Number	15	Art. ID	128051	Valid From	06/2001	Name	Turning handle non-return-valve ORION-A white modified, white

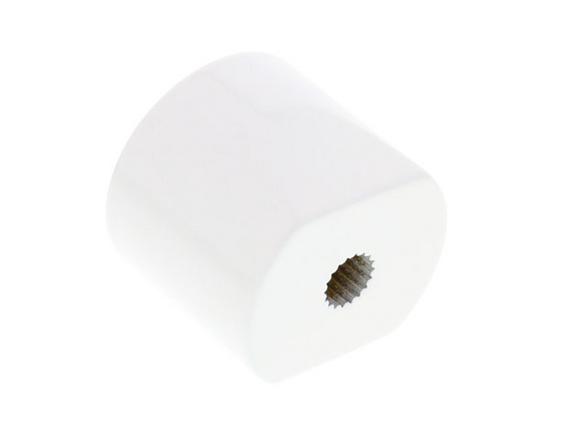

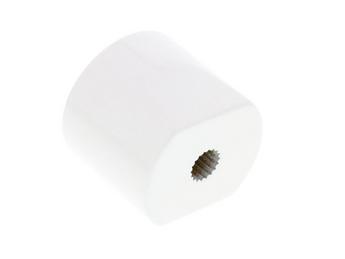

Position Number		Art. ID	127147	Valid From	02/2000	Name	Turning handle shut-off valve ORION-A white, white
Position Number	16	Art. ID	128053	Valid From	06/2001	Name	Screw shut-off valve ORION-A (replaced by 128049)
Position Number		Art. ID	127149	Valid From	02/2000	Name	Screw turning handle ORION-A
Position Number	17	Art. ID	126945	Valid From	06/2001	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126531	Valid From	02/2000	Name	Stabilising plate (replaced by 126945)
Position Number	18	Art. ID	116401	Valid From	05/2007	Name	Assembly set ORION LP, ORION-A, PALLAS LP
Position Number		Art. ID	127400	Valid From	06/2001	Name	Assembly set ORION LP,ORION-A, PALLAS LP (replaced by 116401)
Position Number		Art. ID	126549	Valid From	02/2000	Name	Assembly set ORION LP, ORION-A complete
Position Number		Art. ID	126548	Valid From	02/2000	Name	Assembly nut ATOS-S LP, ORION
Position Number	19	Art. ID	127274	Valid From	06/2001	Name	O-ring threaded pipe ORION, PALLAS MZ
Position Number	20	Art. ID	127402	Valid From	06/2001	Name	Threaded pipe MZ
Position Number		Art. ID	126545	Valid From	02/2000	Name	Thread rod ORION LP, ORION-A

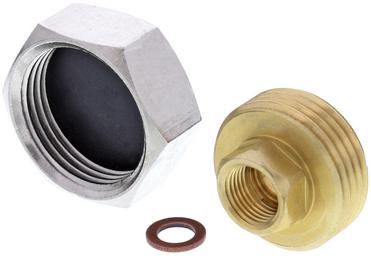

Position Number	21	Art. ID	119207	Valid From	05/2011	Name	Sealing nut ORION-A M10 MZ
Position Number		Art. ID	128054	Valid From	06/2001	Name	Connection set ORION-A (replaced by 119207)
Position Number		Art. ID	127154	Valid From	02/2000	Name	Connection set complet ORION-A ORION-A M 10,5
Position Number	22	Art. ID	123946 (2 / C)	Valid From	06/2019	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123018 (2 / C)	Valid From	06/2019	Name	Flexible hose red with filter gasket facelift 45cm metal M 10x1 (replaced by 123946)
Position Number		Art. ID	119569 (2 / C)	Valid From	06/2011	Name	Flexible hose HP red with gasket/mud guard 45 cm metal Ø = 8 mm M10x1 BL (replaced by 123018)
Position Number		Art. ID	116382 (2 / C)	Valid From	05/2007	Name	Flexible hose HP red with integrated seal 45 cm metal (replaced by 119569) MZ
Position Number		Art. ID	126871 (0 / A)	Valid From	06/2001	Name	Flexible hose long nut 50 cm metal MZ
Position Number	23	Art. ID	123947 (2 / C)	Valid From	06/2019	Name	Flexible hose 50 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123019 (2 / C)	Valid From	06/2019	Name	Flexible hose blue with filter gasket facelift 45 cm metal M 10x1 (replaced by 123947)
Position Number		Art. ID	119568 (2 / C)	Valid From	06/2011	Name	Flexible hose HP blue with gasket/mud guard 45 cm metal Ø = 8 mm M10x1 BL (replaced by 123019)
Position Number		Art. ID	116381 (2 / C)	Valid From	05/2007	Name	Flexible hose HP blue with integrated seal 45 cm metal (replaced by 119568) MZ
Position Number		Art. ID	126870 (0 / A)	Valid From	06/2001	Name	Flexible hose without seal, 50 cm metal (replaced by 116381) MZ
Position Number		Art. ID	126532 (0 / A)	Valid From	02/2000	Name	Flexible hoses ORION HP,ORION-A (1 pair) + seal 50 cm metal (replaced by 119568 and 119569) MZ
Position Number	24	Art. ID	127401	Valid From	06/2001	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	127068	Valid From	02/2000	Name	Seal flexible pipe ATOS-S, ORION-S (replaced by 127401)
Position Number		Art. ID	126534	Valid From	02/2000	Name	Seal flexible pipe (replaced by 127068)
Position Number		Art. ID	513383	Valid From	02/2000	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/2000	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/2000	Name	Flexible sealing tape
