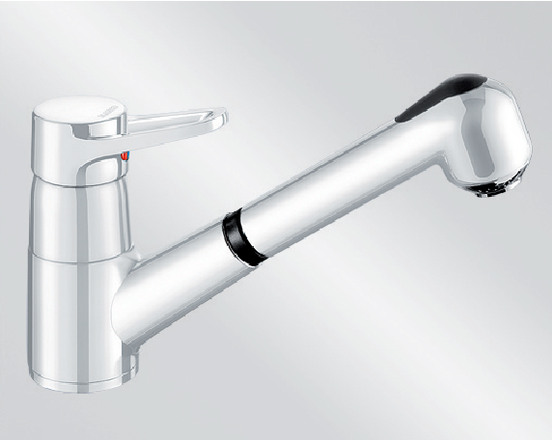

BLANCOORION-S (Mix 3010 S), brass galvanic, white, High Pressure

BLANCOORION-S (Mix 3010 S), brass galvanic, white, High Pressure

                    Article Number
                    137780


Mixer tap available from 01.01.1992 until 31.12.1994!
no longer available since 01/1997

Article-Version: Article also available in other versions!

BLANCOORION-S (Mix 3010 S), brass galvanic, chrome, High Pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

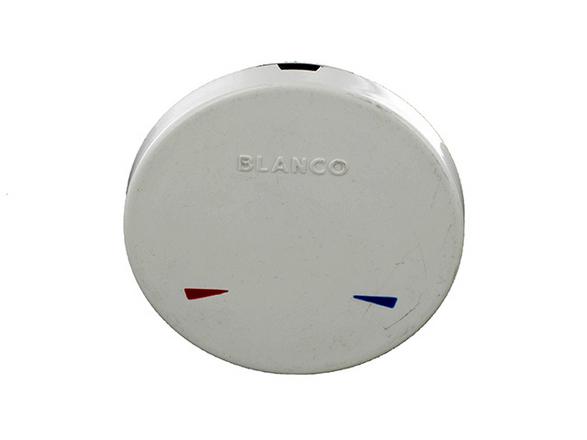

Position Number	1	Art. ID	125156	Valid From	01/1992	Name	Cover cap white MZ 3010-1-W, white

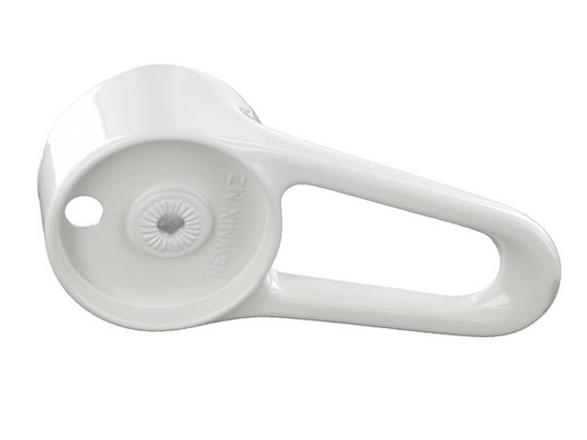

Position Number	2	Art. ID	125904	Valid From	01/1992	Name	Lever complete with screw white MZ, white

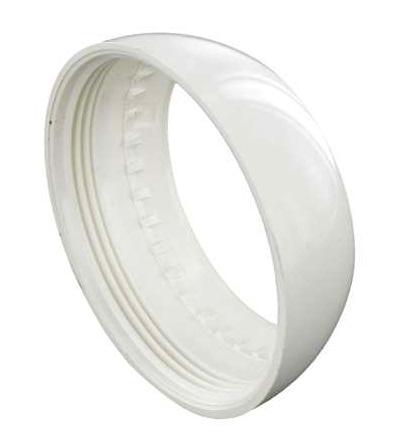

Position Number	3	Art. ID	125908	Valid From	01/1992	Name	Cartridge cover ring A M24x2 white MZ
Position Number	4	Art. ID	125912	Valid From	01/1992	Name	Cartridge cover ring B M47x2 white MZ
Position Number	5	Art. ID	125915	Valid From	01/1992	Name	Lock ring cartridge ORION/-S MZ
Position Number		Art. ID	127433	Valid From	01/1992	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121895	Valid From	01/1992	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	121897	Valid From	01/1992	Name	BLANCO Cartridge 40 mm HP CT (replaced by 121895), blue, High Pressure
Position Number		Art. ID	116806	Valid From	01/1992	Name	Cartridge HP TRADON KE AV (replaced by 116806, 121895 or 121897), blue, High Pressure
Position Number		Art. ID	116119	Valid From	01/1992	Name	Cartridge HP ORION / -S / -A (replace by 118788/116806), blue, High Pressure
Position Number		Art. ID	127283	Valid From	01/1992	Name	Cartridge HP (replaced by 116119), green, High Pressure
Position Number		Art. ID	125157	Valid From	01/1992	Name	Cartridge (replaced by 116119) MZ, green, High Pressure
Position Number	7	Art. ID	125917	Valid From	01/1992	Name	Cartridge holder with pipes MZ
Position Number	8	Art. ID	125158	Valid From	01/1992	Name	O-ring 3010-9 MZ
Position Number		Art. ID	117933	Valid From	01/1992	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/1992	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	9	Art. ID	125159	Valid From	01/1992	Name	Assembly set URANUS, WEGA-S complete
Position Number	10	Art. ID	126935	Valid From	01/1992	Name	Fitting piece spray head black

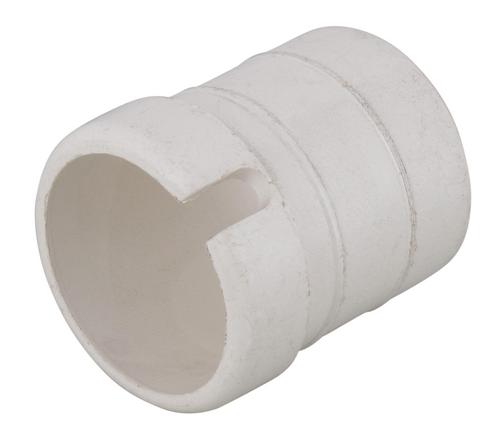

Position Number		Art. ID	125920	Valid From	01/1992	Name	Fitting piece spray head WEGA-S white MZ
Position Number	11	Art. ID	139190	Valid From	02/2004	Name	Spray head ORION-S HP white complete new version galvanic, white, High Pressure
Position Number		Art. ID	127989	Valid From	06/2001	Name	Spray head ORION-S HP white complete galvanic, white, High Pressure

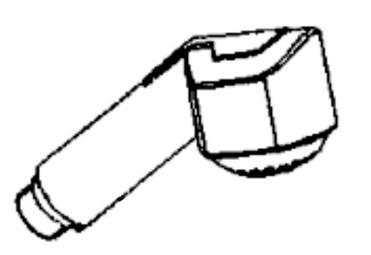

Position Number		Art. ID	125163	Valid From	01/1992	Name	Spray head white complete 3010-14-W MZ galvanic, white, High Pressure
Position Number	12	Art. ID	128486	Valid From	06/2001	Name	Jet disc PALLAS-S black with external thread, Low Pressure
Position Number		Art. ID	128274	Valid From	01/1992	Name	Jet microstrainer white with seal and jet regulator ORION-S, High Pressure
Position Number		Art. ID	125940	Valid From	01/1992	Name	Seal Cover ring SIRIUS-S MZ
Position Number		Art. ID	511324	Valid From	01/1992	Name	Key for jet regulator/-splitter (1 piece)
Position Number	13	Art. ID	128741	Valid From	01/1992	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	119273	Valid From	01/1992	Name	Non-return valve TIVO-S, /-F AV (replaced by 128741), blue
Position Number		Art. ID	128280	Valid From	01/1992	Name	Non-return valve Ø= 14 mm green (replaced by 128741), green
Position Number		Art. ID	125160	Valid From	01/1992	Name	Non-return valve ALKOR-S, SIRIUS-S (replaced by 125767)
Position Number	14	Art. ID	125763	Valid From	01/1992	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	01/1992	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number		Art. ID	125165	Valid From	01/1992	Name	Spray pipe 150 cm metal 3010 (replaced by 126934) MZ
Position Number	15	Art. ID	116490	Valid From	01/1992	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	125166	Valid From	01/1992	Name	Seal for spray head top (replaced by 116490) MZ
Position Number	16	Art. ID	116496	Valid From	01/1992	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	125167	Valid From	01/1992	Name	Seal flexible pipe bottom (replaced by 116496) MZ
Position Number	17	Art. ID	124881	Valid From	01/1992	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	01/1992	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707	Valid From	01/1992	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	126947	Valid From	01/1992	Name	Weight ORION, PALLAS, SIRIUS, WEGA (246g) (replaced by 125764 or 128707)
Position Number		Art. ID	125168	Valid From	01/1992	Name	Weight 3010 (replaced by 126947) MZ
Position Number	18	Art. ID	137847	Valid From	01/1992	Name	Non-return valve WEGA-S, SIRIUS-S MZ
Position Number		Art. ID	120055	Valid From	01/1992	Name	Flexible sealing tape
