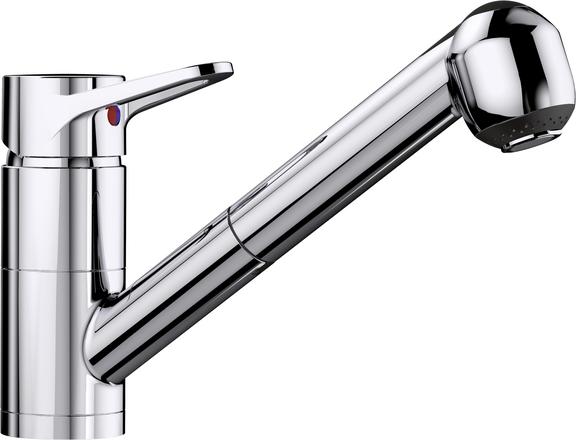

BLANCOORION-S-F, brass galvanic, chrome, High Pressure

BLANCOORION-S-F, brass galvanic, chrome, High Pressure

                    Article Number
                    514208


no longer available since 05/2020

Added to Your Shopping Cart

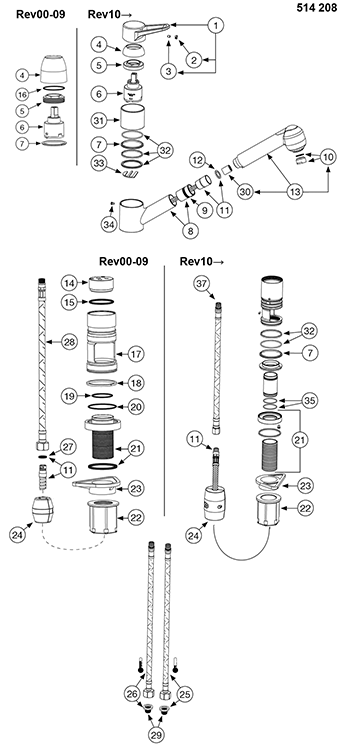

Spare Parts

Valid From	Name

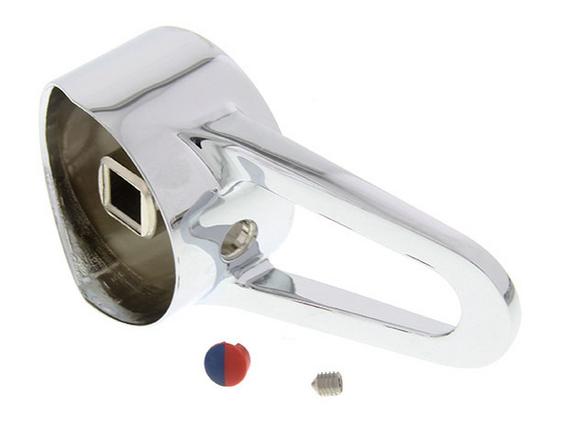

Position Number	1	Art. ID	122640 (10 / K)	Valid From	10/2016	Name	Lever ORION chrome new complete MZ, chrome
Position Number		Art. ID	127979 (0 / A)	Valid From	01/2007	Name	Lever ORION chrome complete with screw and cap, chrome
Position Number	2	Art. ID	126959	Valid From	01/2007	Name	Color cap lever MZ
Position Number	3	Art. ID	116803	Valid From	01/2007	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	01/2007	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	01/2007	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	01/2007	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	127983	Valid From	01/2007	Name	Cover ring ORION-S chrome modified version
Position Number	5	Art. ID	127375 (10 / K)	Valid From	10/2016	Name	Locknut cartridge ORION, PALLAS
Position Number		Art. ID	127246 (0 / A)	Valid From	01/2007	Name	Locknut cartridge PALLAS-S, ORION-S
Position Number	6	Art. ID	121895 (10 / K)	Valid From	01/2007	Name	BLANCO Cartridge 40 mm HP KE, blue, High Pressure
Position Number		Art. ID	121897 (10 / K)	Valid From	01/2007	Name	BLANCO Cartridge 40 mm HP CT (replaced by 121895), blue, High Pressure
Position Number		Art. ID	118788 (0 / A)	Valid From	01/2007	Name	Cartridge HP 40 mm KI (replaced by 121895 or 121897), blue, High Pressure
Position Number		Art. ID	116119 (0 / A)	Valid From	01/2007	Name	Cartridge HP ORION / -S / -A (replace by 118788/116806), blue, High Pressure
Position Number		Art. ID	117934	Valid From	01/2007	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number		Art. ID	117933	Valid From	01/2007	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number	7	Art. ID	127271	Valid From	01/2007	Name	Teflon ring ORION-S, PALLAS-S

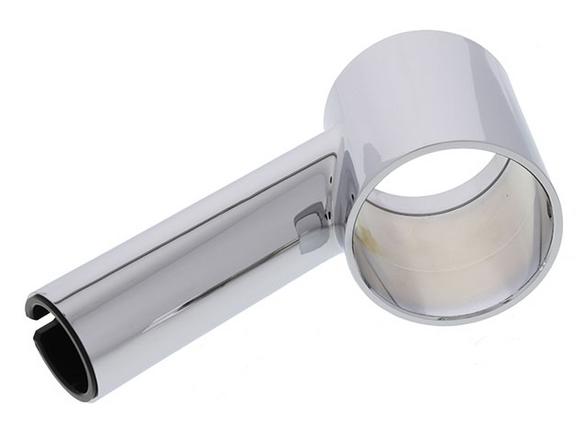

Position Number	8	Art. ID	122643 (10 / K)	Valid From	10/2016	Name	Outer body ORION-S chrome new MZ
Position Number		Art. ID	118971 (3 / D)	Valid From	01/2007	Name	Outer body ORION-S ZAMAK chrome since II/2010 MZ
Position Number		Art. ID	127994 (0 / A)	Valid From	01/2007	Name	Outer body ORION-S chrome with hole (replace 118971)
Position Number	9	Art. ID	122642 (10 / K)	Valid From	10/2016	Name	Fitting piece spray head ORION-S neu MZ
Position Number		Art. ID	127991 (0 / A)	Valid From	01/2007	Name	Fitting piece spray head ORION, PALLAS black
Position Number	10	Art. ID	117344	Valid From	01/2007	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	511324	Valid From	01/2007	Name	Key for jet regulator/-splitter (1 piece)
Position Number		Art. ID	116587	Valid From	01/2007	Name	Set Jet regulator "Airforceone" chrome (116585) + Key to clean jet regulator 116585 (116586) AM (replace by 117344), High Pressure
Position Number		Art. ID	116585	Valid From	01/2007	Name	Jet regulator set HP "Airforceone" chrom (replace by 116587) AM, High Pressure
Position Number		Art. ID	116586	Valid From	01/2007	Name	Cleaning device for jet regulator 116585 AM

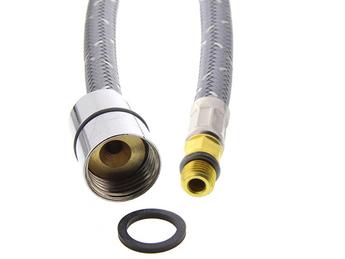

Position Number	11	Art. ID	122641 (10 / K)	Valid From	10/2016	Name	Shower hose 120 cm nylon complete MZ

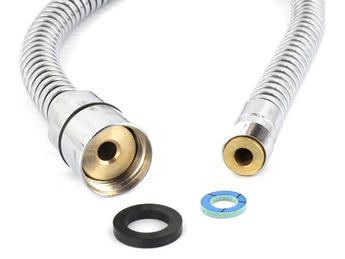

Position Number		Art. ID	120054 (0 / A)	Valid From	03/2012	Name	Spray hose ORION-S-F (PEX-Inliner) 120 cm metal MZ

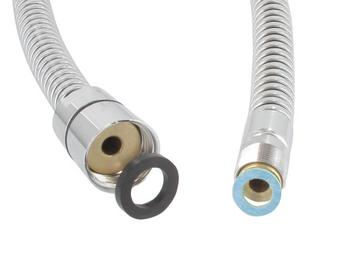

Position Number		Art. ID	116584 (0 / A)	Valid From	01/2007	Name	Spray hose ORION-S-F 150 cm metal (replace by 120054)
Position Number	12	Art. ID	116490	Valid From	01/2007	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	125166	Valid From	01/2007	Name	Seal for spray head top (replaced by 116490) MZ

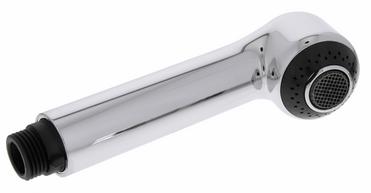

Position Number	13	Art. ID	127987	Valid From	01/2007	Name	Spray head ORION-S HP chrome complete galvanic, chrome, High Pressure
Position Number	14	Art. ID	116417	Valid From	01/2007	Name	Cartridge seat ORION-S-F HP
Position Number	15	Art. ID	127270	Valid From	01/2007	Name	O-ring ORION-S, PALLAS-S
Position Number	16	Art. ID	127998	Valid From	01/2007	Name	O-ring 41 x 1,78 mm NBR 75 SH
Position Number	17	Art. ID	116418	Valid From	01/2007	Name	Inner body ORION-S-F HP/LP
Position Number	18	Art. ID	127272	Valid From	01/2007	Name	Teflon ring ORION-S, PALLAS-S

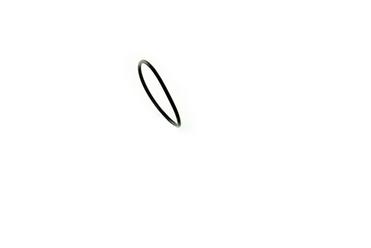

Position Number	19	Art. ID	116486	Valid From	01/2007	Name	O-ring 31,47 x 1,79 mm
Position Number		Art. ID	116426	Valid From	01/2007	Name	O-ring 31,47 x 1,78 (replaced by 116486)

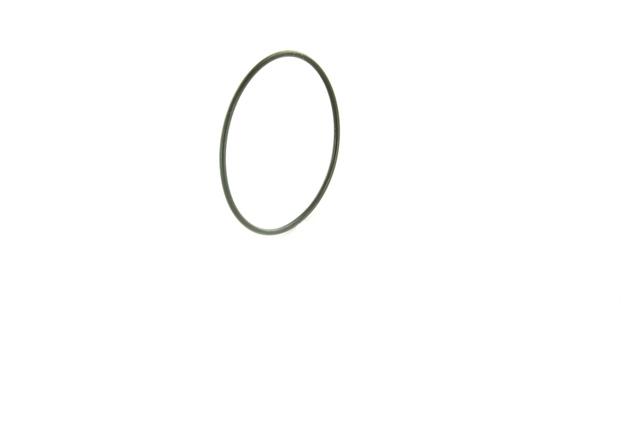

Position Number	20	Art. ID	116484	Valid From	01/2007	Name	O-ring 44,17 x 1,78 mm
Position Number		Art. ID	116425	Valid From	01/2007	Name	O-ring 44,17 x 1.78 mm (replaced by 116484)

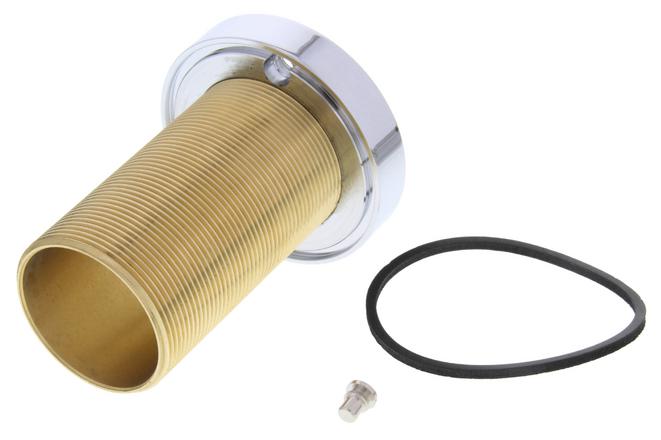

Position Number	21	Art. ID	122652 (10 / K)	Valid From	10/2016	Name	Base ORION-S-F chrome complete MZ
Position Number		Art. ID	116485 (0 / A)	Valid From	01/2007	Name	Coupling ring ORION-S-F MZ
Position Number		Art. ID	116421 (0 / A)	Valid From	01/2007	Name	Coupling element with O-ring ORION-S-F (replaced by 116485)
Position Number	22	Art. ID	116424	Valid From	01/2007	Name	Assembly nut fil.35x19“w. (grey)
Position Number	23	Art. ID	126945	Valid From	01/2007	Name	Stabilization triangle mixer taps BLANCO
Position Number	24	Art. ID	122548 (10 / K)	Valid From	10/2016	Name	Weight für shower hose (223g)KP
Position Number		Art. ID	124881 (0 / A)	Valid From	01/2007	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888 (0 / A)	Valid From	01/2007	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707 (0 / A)	Valid From	01/2007	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	126947 (0 / A)	Valid From	01/2007	Name	Weight ORION, PALLAS, SIRIUS, WEGA (246g) (replaced by 125764 or 128707)
Position Number		Art. ID	127278 (0 / A)	Valid From	01/2007	Name	Counterweight without seals (replaced by 126947)

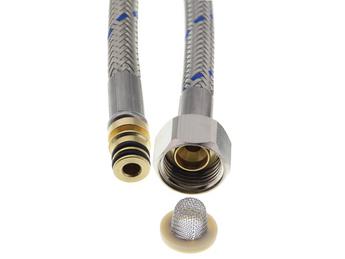

Position Number	25	Art. ID	122653 (10 / K)	Valid From	10/2016	Name	Flexible hose blue w. filter gasket 75cm metal MZ
Position Number		Art. ID	123951 (5 / F)	Valid From	01/2007	Name	Flexible hose 95 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119939 (5 / F)	Valid From	01/2007	Name	Flexible hose HP blue with gasket/mud guard 90 cm metal M10x1 BL (NF)
Position Number		Art. ID	119537 (5 / F)	Valid From	01/2007	Name	Flexible hose blue with gasket/mud guard 75 cm metal M10x1 (replaced by 119939) MZ
Position Number		Art. ID	119566 (5 / F)	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 75 cm metal (replaced by 119537) MZ
Position Number		Art. ID	116395 (0 / A)	Valid From	01/2007	Name	Flexible hose blue with integrated seal 75 cm metal M10x1 (replaced by 117405) PA

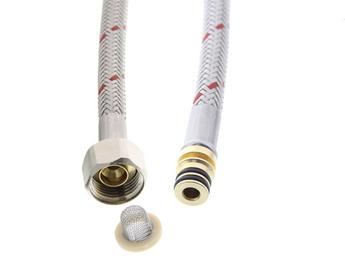

Position Number	26	Art. ID	122654 (10 / K)	Valid From	10/2016	Name	Flexible hose red w. filter gasket 75 cm metal MZ
Position Number		Art. ID	123950 (5 / F)	Valid From	01/2007	Name	Flexible hose 95 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119940 (5 / F)	Valid From	01/2007	Name	Flexible hose HP red with gasket/mud guard 90 cm metal M10x1 BL (NF) (replaced by 123950)
Position Number		Art. ID	119567 (5 / F)	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 75 cm metal M10x1 (replaced by 119940) MZ

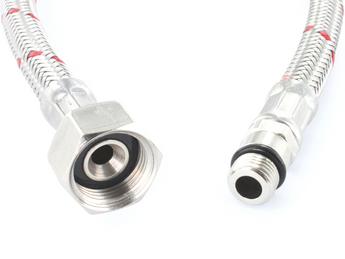

Position Number		Art. ID	116396 (0 / A)	Valid From	01/2007	Name	Flexible hose red with integrated seal 75 cm metal M10x1 (replaced by117406) PA
Position Number	27	Art. ID	116496	Valid From	01/2007	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	116423	Valid From	01/2007	Name	Seal 13.5 x 8.5 x 2 mm flexible hose (replaced by 116496)

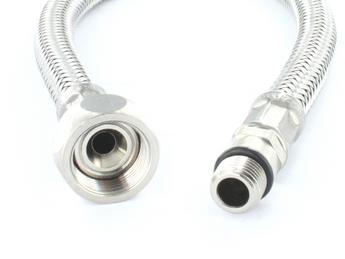

Position Number	28	Art. ID	116422	Valid From	01/2007	Name	Flexible hose without seal, 42 cm metal M10x1 BL(MZ)
Position Number	29	Art. ID	118840 (5 / F)	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number	30	Art. ID	128741	Valid From	01/2007	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	119273	Valid From	01/2007	Name	Non-return valve TIVO-S, /-F AV (replaced by 128741), blue
Position Number		Art. ID	128280	Valid From	01/2007	Name	Non-return valve Ø= 14 mm green (replaced by 128741), green
Position Number	31	Art. ID	122647 (10 / K)	Valid From	10/2016	Name	Cartridge cover cylinder ORION-S chrome

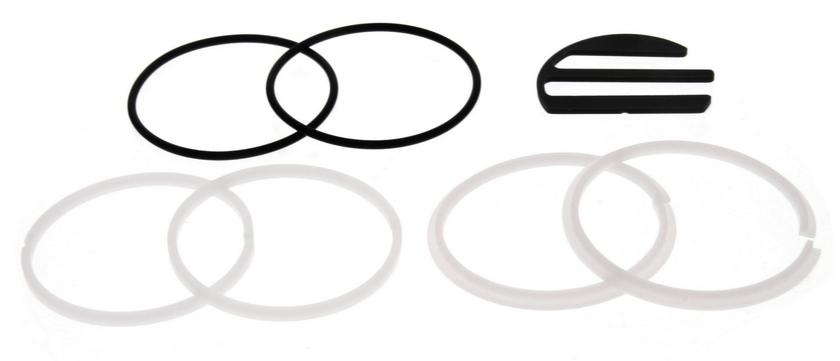

Position Number	32	Art. ID	122648 (10 / K)	Valid From	10/2016	Name	Set of rings and seals ORION-S MZ
Position Number	33	Art. ID	123710 (10 / K)	Valid From	10/2016	Name	Locking disc inox NEA-S ORION-S, WEGA-S
Position Number		Art. ID	121559 (10 / K)	Valid From	10/2016	Name	Locking disc NEA,ORION,WEGA MZ (replaced by 123710)
Position Number	34	Art. ID	120725 (10 / K)	Valid From	10/2016	Name	Screw M5x7 MZ

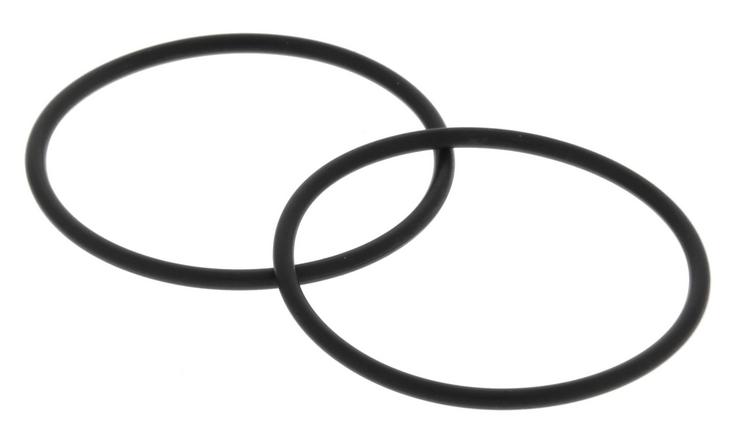

Position Number	35	Art. ID	122655 (10 / K)	Valid From	10/2016	Name	O-ring ORION-S-F 28x1,5 MZ
Position Number	37	Art. ID	121560 (10 / K)	Valid From	10/2016	Name	Connector hose without seal 30 cm metal MZ
Position Number		Art. ID	513383	Valid From	01/2007	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2007	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/2007	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/2007	Name	Flexible sealing tape
