BLANCOWEGA-S, brass galvanic, chrome, High Pressure

BLANCOWEGA-S, brass galvanic, chrome, High Pressure

                    Article Number
                    512035


no longer available since 05/2020

Article-Version: Article also available in other versions!

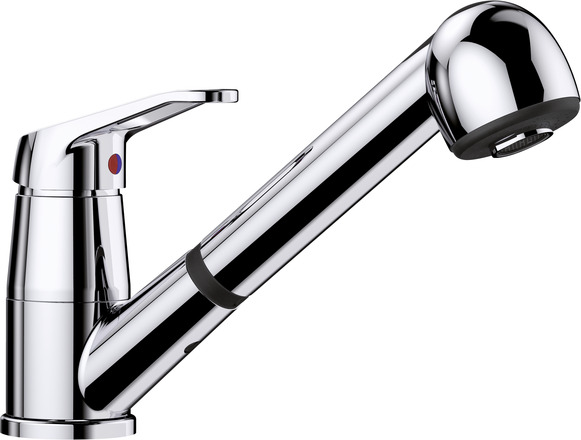

BLANCOWEGA-S (3060 S), brass galvanic, chrome, High Pressure

Added to Your Shopping Cart

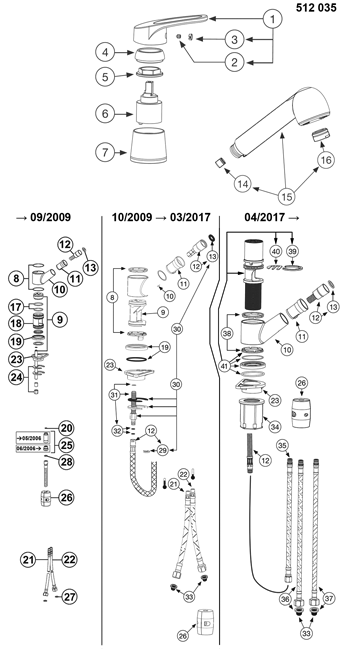

Spare Parts

Valid From	Name

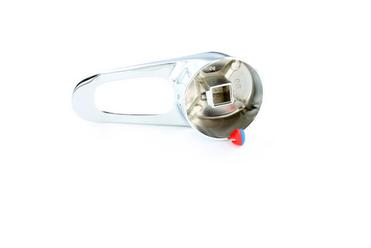

Position Number	1	Art. ID	126916	Valid From	09/2002	Name	Lever WEGA chrome complete, chrome
Position Number	2	Art. ID	116803	Valid From	09/2002	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	09/2002	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	09/2002	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	09/2002	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	126959	Valid From	09/2002	Name	Color cap lever MZ
Position Number	4	Art. ID	127013	Valid From	10/2009	Name	Cover ring chrome

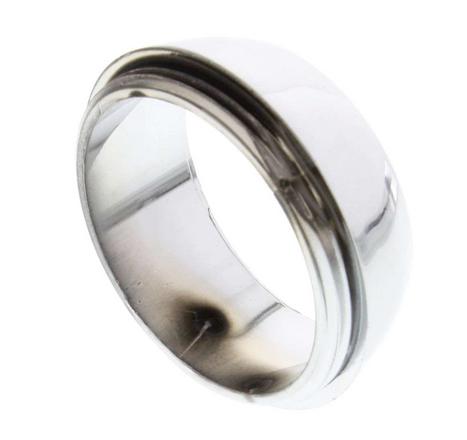

Position Number		Art. ID	118349	Valid From	10/2009	Name	Cartridge cover ring WEGA-S chrome (replaced by 127013) MZ

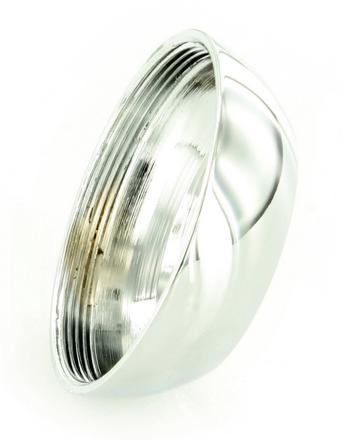

Position Number		Art. ID	126919	Valid From	09/2002	Name	Cover ring WEGA-S chrome
Position Number	5	Art. ID	117772 (8 / I)	Valid From	10/2009	Name	Lock ring cartridge MZ
Position Number		Art. ID	126922	Valid From	09/2002	Name	Locknut cartridge WEGA-S MZ
Position Number	6	Art. ID	121894	Valid From	09/2002	Name	BLANCO Cartridge 35 mm HP KE, blue, High Pressure
Position Number		Art. ID	121896	Valid From	09/2002	Name	BLANCO Cartridge 35 mm HP CT (replaced by 121894), blue, High Pressure
Position Number		Art. ID	118787	Valid From	09/2002	Name	Cartridge HP 35 mm (replaced by 121894 or 121896) KI, blue, High Pressure
Position Number		Art. ID	126923	Valid From	09/2002	Name	Cartridge HP (replaced by 118787), blue, High Pressure
Position Number	7	Art. ID	122799 (19 / T)	Valid From	04/2017	Name	Cartr. cov. cylind. WEGA-S chrome Rev19

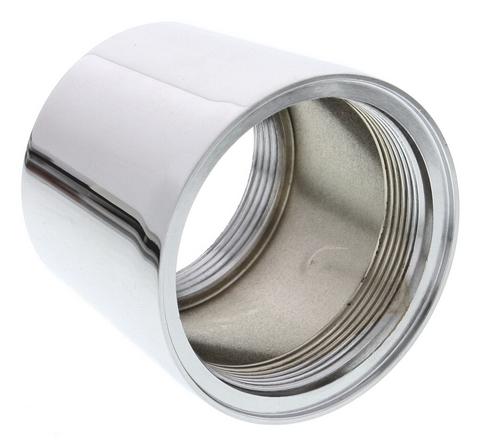

Position Number		Art. ID	118350	Valid From	10/2009	Name	Cartridge cover cylinder WEGA-S chrome MZ

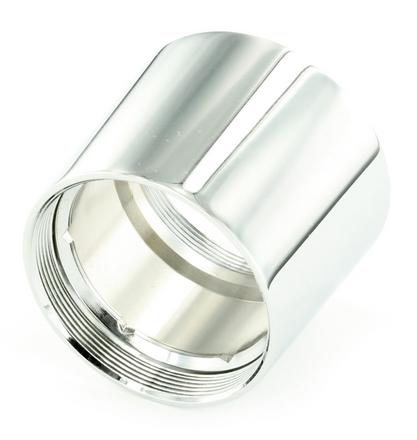

Position Number		Art. ID	126924	Valid From	09/2002	Name	Cover cylinder WEGA-S chrome

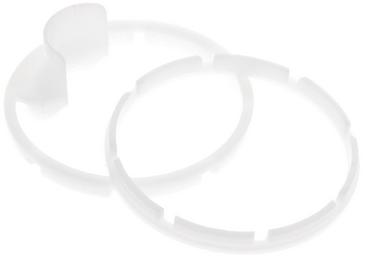

Position Number	8	Art. ID	118354	Valid From	10/2009	Name	Set of plastic rings WEGA-S MZ
Position Number		Art. ID	126927	Valid From	09/2002	Name	Set teflon ring WEGA-S

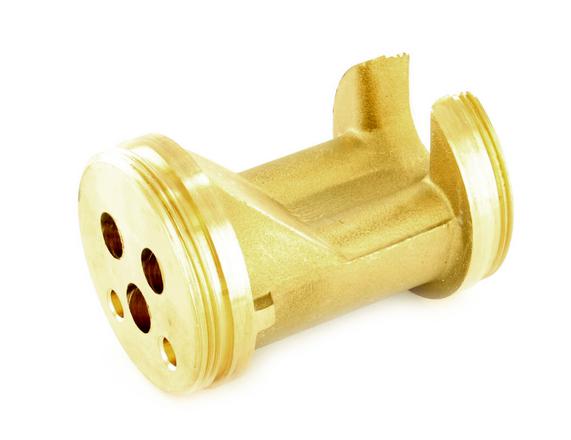

Position Number	9	Art. ID	118355	Valid From	10/2009	Name	Cartridge seat WEGA-S MZ
Position Number		Art. ID	126928	Valid From	09/2002	Name	Cartridge seat WEGA-S with thread rod

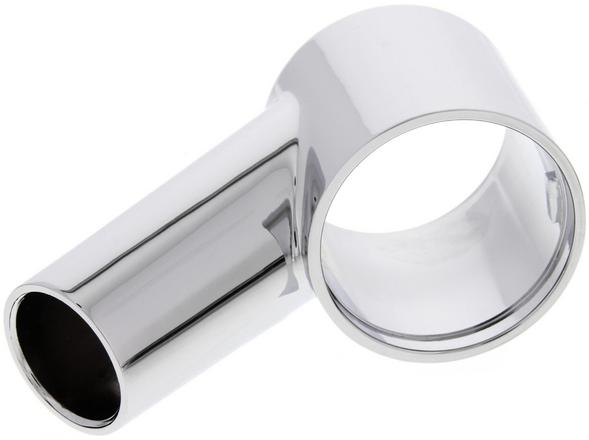

Position Number	10	Art. ID	118353	Valid From	10/2009	Name	Outer body WEGA-S chrome MZ

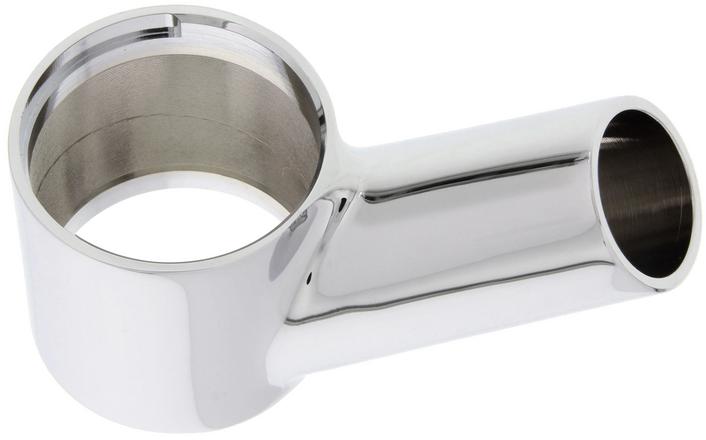

Position Number		Art. ID	128123	Valid From	09/2002	Name	Outer body WEGA-S chrome with hole
Position Number	11	Art. ID	128215	Valid From	09/2002	Name	Fitting piece spray head WEGA-S black
Position Number	12	Art. ID	122800 (19 / T)	Valid From	04/2017	Name	Shower hose 120 cm nylon+gask. Rev19 MZ
Position Number		Art. ID	118351 (8 / I)	Valid From	10/2009	Name	Spray hose with clip and seals WEGA-S 150 cm nylon MZ
Position Number		Art. ID	124210 (0 / A)	Valid From	09/2002	Name	Shower hose 150cm M15x1 nylon black MP
Position Number		Art. ID	139909 (0 / A)	Valid From	09/2002	Name	Spray hose with seal 150 cm nylon BL (NF) (replaced by 124210)
Position Number		Art. ID	128279 (0 / A)	Valid From	09/2002	Name	Spray hose WEGA,CITO,ARIS 150 cm grey Nylon (replaced by 139909) MZ
Position Number	13	Art. ID	116490	Valid From	09/2002	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	125166	Valid From	09/2002	Name	Seal for spray head top (replaced by 116490) MZ
Position Number	14	Art. ID	128741	Valid From	09/2002	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	119273	Valid From	09/2002	Name	Non-return valve TIVO-S, /-F AV (replaced by 128741), blue
Position Number		Art. ID	128280	Valid From	09/2002	Name	Non-return valve Ø= 14 mm green (replaced by 128741), green
Position Number	15	Art. ID	128281	Valid From	09/2002	Name	Spray head WEGA-S-U, ARIS chrome complete MZ galvanic, chrome, High Pressure
Position Number	16	Art. ID	117344	Valid From	09/2002	Name	Jet regulator set HP chrome BL (NE), High Pressure Spareparts
Position Number		Art. ID	127170	Valid From	09/2002	Name	Jet regulator set HP OT M24x1 AF22 chrome (replace by 117344) NE, High Pressure Spareparts
Position Number		Art. ID	117501	Valid From	09/2002	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	09/2002	Name	Key for jet regulator/-splitter (1 piece)
Position Number	17	Art. ID	126940	Valid From	09/2002	Name	Seal for body WEGA-S
Position Number		Art. ID	117933	Valid From	09/2002	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	09/2002	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	18	Art. ID	126939	Valid From	09/2002	Name	Inner body WEGA-S with ring
Position Number	19	Art. ID	118356	Valid From	10/2009	Name	Base chrome + o-ring WEGA-S since 10/2009 MZ
Position Number		Art. ID	126941	Valid From	09/2002	Name	Base ARIS-S, WEGA-S chrome MZ
Position Number	20	Art. ID	128245	Valid From	09/2002	Name	Copper seal Ø= 9,7 mm
Position Number	21	Art. ID	123946 (11 / L)	Valid From	06/2019	Name	Flexible hose 50 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123018 (11 / L)	Valid From	06/2019	Name	Flexible hose red with filter gasket facelift 45cm metal M 10x1 (replaced by 123946)
Position Number		Art. ID	119902 (11 / L)	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 44 cm metal M10x1 BL (NF) (replaced by 123018)
Position Number		Art. ID	119559 (11 / L)	Valid From	01/2011	Name	Flexible hose red with gasket/mud guard 45 cm metal Ø= 6 mm M10x1 (replaced by 119902) MZ
Position Number		Art. ID	121656	Valid From	10/2009	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	10/2009	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)

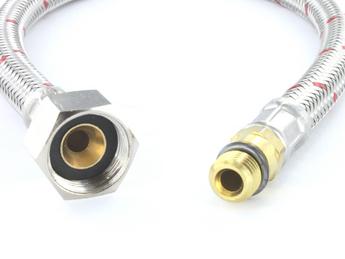

Position Number		Art. ID	118359	Valid From	10/2009	Name	Flexible hose red with integrated seal 45 cm metal M10x1 (replaced by119913) MZ
Position Number		Art. ID	123948	Valid From	09/2002	Name	Flexible hose 70 cm red ST R FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119417	Valid From	09/2002	Name	Flexible hose red with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123948)
Position Number		Art. ID	119562	Valid From	09/2002	Name	Flexible hose HP red with gasket/mud guard 50 cm metal M10x1 (replaced by 119417) MZ
Position Number		Art. ID	116380	Valid From	09/2002	Name	Flexible hose HP red with integrated seal 50 cm metal (replaced by 119562) MZ
Position Number		Art. ID	126942	Valid From	09/2002	Name	Flexible hose ORION- S, PALLAS-S, WEGA-S red 50 cm metal (replaced by 116380)
Position Number	22	Art. ID	123947 (11 / L)	Valid From	06/2019	Name	Flexible hose 50 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	123019 (11 / L)	Valid From	06/2019	Name	Flexible hose blue with filter gasket facelift 45 cm metal M 10x1 (replaced by 123947)
Position Number		Art. ID	119899 (11 / L)	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 44 cm metal M10x1 BL (NF) (replaced by 123019)
Position Number		Art. ID	119561 (11 / L)	Valid From	01/2011	Name	Flexible hose blue with gasket/mud guard 45 cm metal Ø= 6 mm M10x1 (replaced by 119899) MZ
Position Number		Art. ID	121656	Valid From	10/2009	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	10/2009	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)

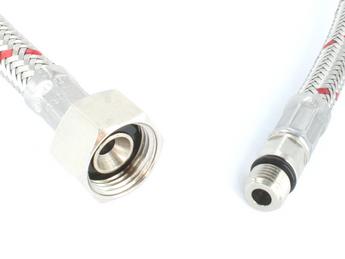

Position Number		Art. ID	118360	Valid From	10/2009	Name	Flexible hose blue with integrated seal 45 cm metal M10x1 (replaced by 119913) MZ
Position Number		Art. ID	123949	Valid From	09/2002	Name	Flexible hose 70 cm blue ST B FI EU 3/8" - M10x1 NE
Position Number		Art. ID	119416	Valid From	09/2002	Name	Flexible hose blue with gasket/mud guard 65 cm metal M10x1 BL (NF) (replaced by 123949)
Position Number		Art. ID	119564	Valid From	09/2002	Name	Flexible hose HP blue with gasket/mud guard 50 cm metal M10x1 (replaced by 119416) MZ
Position Number		Art. ID	116379	Valid From	09/2002	Name	Flexible hose HP blue with integrated seal 50 cm metal (replaced by 119564) MZ
Position Number		Art. ID	126943	Valid From	09/2002	Name	Flexible hose ORION-S,PALLAS-S,WEGA-S blue 50 cm metal (replaced by 116379)
Position Number	23	Art. ID	126945	Valid From	09/2002	Name	Stabilization triangle mixer taps BLANCO
Position Number	24	Art. ID	119563	Valid From	09/2002	Name	Assembly set inclusive gasket/mud guard WEGA-S-U MZ
Position Number		Art. ID	116399	Valid From	09/2002	Name	Assembly set WEGA-S
Position Number		Art. ID	126944	Valid From	09/2002	Name	Assembly set WEGA-S (replaced by 116399 since 01.05.2007)
Position Number	25	Art. ID	116118	Valid From	06/2006	Name	Connection piece + seal HA
Position Number		Art. ID	127363	Valid From	09/2002	Name	Non-return valve complete HP ORION,PALLAS,WEGA (replaced by 116118)
Position Number	26	Art. ID	122491 (19 / T)	Valid From	04/2017	Name	Weight for shower hose (225g) KP
Position Number		Art. ID	123063 (0 / A)	Valid From	09/2002	Name	Weight for shower hose (200g) AV
Position Number		Art. ID	125764 (0 / A)	Valid From	09/2002	Name	Weight (260g) (replaced by 128707 or 123063) BL (HA)
Position Number		Art. ID	128295 (0 / A)	Valid From	09/2002	Name	Weight plastic (134g) (replaced by 125764) MZ
Position Number	27	Art. ID	127401	Valid From	09/2002	Name	Seal flexible pipe 3/8" (1 piece)
Position Number	28	Art. ID	116496	Valid From	09/2002	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	125167	Valid From	09/2002	Name	Seal flexible pipe bottom (replaced by 116496) MZ
Position Number	29	Art. ID	118352	Valid From	10/2009	Name	Clip bottom for spray hose MZ
Position Number	30	Art. ID	119560 (11 / L)	Valid From	01/2011	Name	Assembly set inclusive gasket/mud guard WEGA-S MZ
Position Number		Art. ID	118357 (9 / J)	Valid From	10/2009	Name	Assembly set WEGA-S (replaced by 119560) MZ
Position Number	31	Art. ID	118368 (9 / J)	Valid From	10/2009	Name	Threaded pipe with o-rings WEGA-S MZ
Position Number	32	Art. ID	118362 (9 / J)	Valid From	10/2009	Name	O-rings for T-piece (2 pieces) WEGA-S MZ
Position Number	33	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number	34	Art. ID	116424 (19 / T)	Valid From	04/2017	Name	Assembly nut fil.35x19“w. (grey)
Position Number	35	Art. ID	122802 (19 / T)	Valid From	04/2017	Name	Connection hose without seal 30 cm metal MZ
Position Number	36	Art. ID	122646 (19 / T)	Valid From	04/2017	Name	Flexible hose red w. filter gasket 52 cm metal MZ
Position Number	37	Art. ID	122645 (19 / T)	Valid From	04/2017	Name	Flexible hoseblue w. filter gasket 52 cm metal MZ
Position Number	38	Art. ID	122805 (11 / L)	Valid From	04/2017	Name	Set of plastic rings WEGA-S MZ
Position Number	39	Art. ID	122806 (11 / L)	Valid From	04/2017	Name	Retaining ring WEGA-S MZ
Position Number	40	Art. ID	123710 (11 / L)	Valid From	04/2017	Name	Locking disc inox NEA-S ORION-S, WEGA-S
Position Number		Art. ID	121559 (11 / L)	Valid From	04/2017	Name	Locking disc NEA,ORION,WEGA MZ (replaced by 123710)
Position Number	41	Art. ID	122801 (19 / T)	Valid From	04/2017	Name	Base chrome + inner body WEGA-S Rev19 MZ
Position Number		Art. ID	513383	Valid From	09/2002	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	09/2002	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	09/2002	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	09/2002	Name	Flexible sealing tape
