BLANCO SELECT ECON 60/3 with top drawer until April 2009, plastic, sheet steel, 600 mm min. cabinet size

BLANCO SELECT ECON 60/3 with top drawer until April 2009, plastic, sheet steel, 600 mm min. cabinet size

                    Article Number
                    513357


no longer available since 04/2009

Article-Version: Article also available in other versions!

BLANCO SELECT ECON 60/3 with top drawer until December 2004, plastic, sheet steel, 600 mm min. cabinet size

512626

Added to Your Shopping Cart

Spare Parts

Valid From	Name

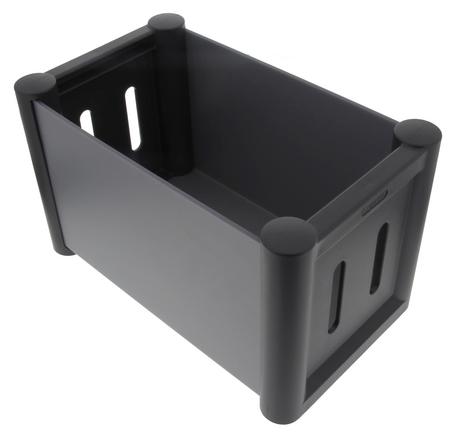

Position Number	1	Art. ID	217259	Valid From	10/2004	Name	Container SYSTEMA small 3 liters, plastic, grey
Position Number	2	Art. ID	217260	Valid From	10/2004	Name	Container SYSTEMA large 7 liters, plastic, grey
Position Number	3	Art. ID	225485	Valid From	07/2009	Name	Storage shelf SYSTEMA (suitable for white and black rail)
Position Number		Art. ID	217482	Valid From	10/2004	Name	Storage shelf SYSTEMA for black rail (replaced by 225485)
Position Number	4	Art. ID	217489	Valid From	10/2004	Name	Side wall compensation SYSTEMA (1 piece)
Position Number	5	Art. ID	225486	Valid From	07/2009	Name	Runner white from 07/2009 500 mm (1 pair), white
Position Number		Art. ID	217500	Valid From	10/2004	Name	Runner black until 06/2009 500 mm (1 pair) (replaced by 225486), black
Position Number	6	Art. ID	217639	Valid From	10/2004	Name	Assembly set upper level SYSTEMA
Position Number	7	Art. ID	225482	Valid From	10/2004	Name	Garbage bin black 16 liters, plastic, black
Position Number		Art. ID	146810	Valid From	10/2004	Name	Garbage bin grey 16 liters (replaced by 225482), plastic, grey
Position Number		Art. ID	146809	Valid From	10/2004	Name	Garbage bin grey 18.5 liters, plastic, grey
Position Number	8	Art. ID	218681	Valid From	10/2004	Name	Installation Frame ECON 60
Position Number		Art. ID	139036	Valid From	10/2004	Name	Installation Frame ECOMAT 60 (replaced by 218681)
Position Number	9	Art. ID	139044	Valid From	10/2004	Name	Damper Airmatic ECOMAT/TOPMAT (1 piece)
Position Number	10	Art. ID	139692	Valid From	10/2004	Name	Holder damper ECON width 23 mm 1 piece (K.7600.097.00)
Position Number	11	Art. ID	217504	Valid From	10/2004	Name	Soft close SYSTEMA 7600 EZS VAM (1 piece)
Position Number	12	Art. ID	139691	Valid From	10/2004	Name	Runner without self-closing mechanism 370 mm (1 pair), Metal
Position Number		Art. ID	139615	Valid From	10/2004	Name	Runner with self-closing mechanism 370 mm (1 pair) (replaced by 139691 and 2x217504), Metal
Position Number	13	Art. ID	218686	Valid From	10/2004	Name	Support angle ECON/BOX E left
Position Number	14	Art. ID	218687	Valid From	10/2004	Name	Support angle ECON/BOX E right
Position Number		Art. ID	139048	Valid From	10/2004	Name	Assembly set ECOMAT
Position Number		Art. ID	139046	Valid From	10/2004	Name	Drilling template ECOMAT,TOPMAT,LUXOKICK
Position Number		Art. ID	511920	Valid From	10/2004	Name	Protection device for spray hose of mixer tap
