BLANCO SELECT LUXON 90/4, plastic, stainless steel, 900 mm min. cabinet size

BLANCO SELECT LUXON 90/4, plastic, stainless steel, 900 mm min. cabinet size

                    Article Number
                    516576


Waste separation system not available anymore since January 2014!

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	221894	Valid From	05/2009	Name	Storage shelf SELECT LUXON 90, Stainless steel
Position Number	2	Art. ID	223812	Valid From	05/2009	Name	Bin SELECT 17 liters (black), plastic, black
Position Number		Art. ID	225481	Valid From	05/2009	Name	Garbage bin 11 liters (black), plastic, black
Position Number		Art. ID	220393	Valid From	05/2009	Name	Garbage bin 35 liters black (before: grey), plastic, black
Position Number		Art. ID	220395	Valid From	05/2009	Name	Frame for bin liner bucket 35 liters

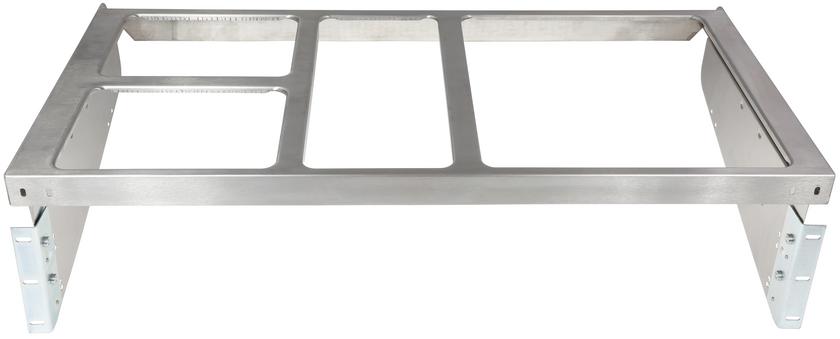

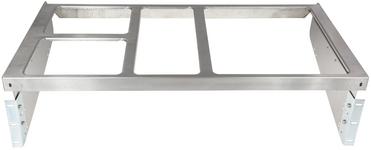

Position Number	3	Art. ID	225658 (1)	Valid From	04/2010	Name	Frame SELECT LUXON 90/4 (2010) GU
Position Number		Art. ID	224992 (0)	Valid From	05/2009	Name	Hanging frame SELECT LUXON 90/4 since 05/2009)
Position Number	4	Art. ID	225342	Valid From	05/2009	Name	Runner LUXON not self-closing since 05/2009 440 mm (1 pair), Metal
Position Number		Art. ID	118763	Valid From	05/2009	Name	Runner SELECT extra long since 05/2009 490 mm, Metal
Position Number	5	Art. ID	225662 (1)	Valid From	04/2010	Name	Support angle SELECT LUXON (2010) GU
Position Number		Art. ID	223895 (0)	Valid From	05/2009	Name	Support angle right SELECT LUXON
Position Number		Art. ID	223894 (0)	Valid From	05/2009	Name	Support angle left SELECT LUXON
Position Number	6	Art. ID	139696	Valid From	05/2009	Name	Assembly set SELECT since 05/2009 (for 516...)
Position Number	7	Art. ID	225480	Valid From	05/2009	Name	Footkick SELECT LUXON 05/2009
Position Number	9	Art. ID	126228	Valid From	05/2009	Name	Tension spring set SELECT L with hook GU
Position Number	10	Art. ID	224709	Valid From	05/2009	Name	Snap-in element plastic 25 x 35 mm
Position Number	11	Art. ID	222947	Valid From	05/2009	Name	Snap-in element with rolls SELECT L since 03/2007
Position Number		Art. ID	511920	Valid From	05/2009	Name	Protection device for spray hose of mixer tap

Accessories

Protection device for spray hose of mixer tap

511920

Downloads

Manuals

Download Documents

116331 protection device for spray hose
Muellbeutelempfehlung
