Fitting set 1 x 3,5'', 1 x 1,5'' plug, with overflow (replaced by 506582)

Skip to content Jump to the navigation menu

                    Article Number
                    503998


no longer available since 07/1997

Added to Your Shopping Cart

Spare Parts

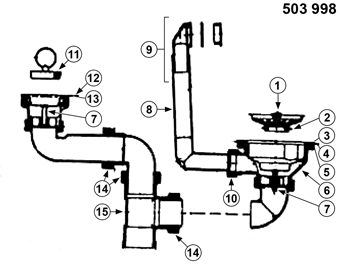

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/1985	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1985	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1985	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	128651	Valid From	01/1985	Name	Valve goblet countersink screw stainless steel VI
Position Number	4	Art. ID	125570	Valid From	01/1985	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	5	Art. ID	125661	Valid From	01/1985	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	6	Art. ID	128681	Valid From	01/1985	Name	Drain valve vertical with overflow white VI, white
Position Number	7	Art. ID	125658	Valid From	01/1985	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	8	Art. ID	125666	Valid From	01/1985	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	9	Art. ID	125351	Valid From	01/1985	Name	Overflow round complete with outflow pipe VI
Position Number	10	Art. ID	125668	Valid From	01/1985	Name	Cap nut Ø=25 mm with seal VI
Position Number	11	Art. ID	901998	Valid From	01/1985	Name	Plug 1.5" 45 mm 10° black with ring
Position Number	12	Art. ID	116668	Valid From	01/1985	Name	Drainage strainer 1.5" for countersink screw VI
Position Number	13	Art. ID	125638	Valid From	01/1985	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	14	Art. ID	125669	Valid From	01/1985	Name	Cap nut with seal Ø=40 mm VI
Position Number	15	Art. ID	128667	Valid From	01/1985	Name	T-piece Ø= 40 mm short + equipment connection VI
