Fitting set 1 x 3.5"(2x) pop-up control overflow oval/horizontal

Skip to content Jump to the navigation menu

                    Article Number
                    224809


New turning unit (119293) since 23.05.2012!

Added to Your Shopping Cart

Spare Parts

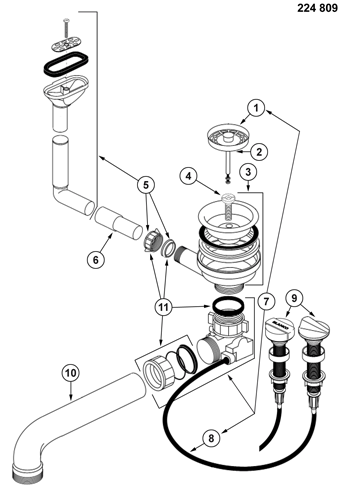

Valid From	Name
Position Number	1	Art. ID	119145	Valid From	11/2009	Name	Pop-up Basket strainer 3.5" RADIAL universal (20 drainage slots) AL Spareparts
Position Number	2	Art. ID	116116	Valid From	11/2009	Name	Seal for basket strainer 3.5" Ø=51 mm since 10/2006 (modified) AL
Position Number	3	Art. ID	120665	Valid From	11/2009	Name	Valve 3.5'' with overflow G 0.5'' AL, white
Position Number	4	Art. ID	119741	Valid From	11/2009	Name	Hollow screw G 1/4'' length = 35 mm AL
Position Number		Art. ID	125718	Valid From	11/2009	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	5	Art. ID	120287	Valid From	11/2009	Name	Overflow set oval AL
Position Number	6	Art. ID	125614	Valid From	11/2009	Name	Extension pipe overflow Ø 30 mm, length: 130 mm AL
Position Number	7	Art. ID	118980	Valid From	11/2009	Name	Retrofit set 1.5'' eccentric with Bowden modified tamis thread 1,5" (without pull knob) AL Spareparts
Position Number	8	Art. ID	139373	Valid From	11/2009	Name	Bowden cable 700 mm AL
Position Number	9	Art. ID	119293	Valid From	11/2009	Name	Pop-up control stainless steel round BL (EB)
Position Number	10	Art. ID	116333	Valid From	11/2009	Name	Drain angle to siphon Ø 40 mm, length: 55 x 245 mm AL
Position Number	11	Art. ID	120676	Valid From	11/2009	Name	Seal set DN 30/40 AL
Position Number	100	Art. ID	515399	Valid From	11/2009	Name	BLANCO SensorControl-BSC Spareparts
