Fitting set 1 x 3.5" + 1 x 1.5" with pop-up control overflow round

Skip to content Jump to the navigation menu

                    Article Number
                    223150


no longer available since 04/2024

Added to Your Shopping Cart

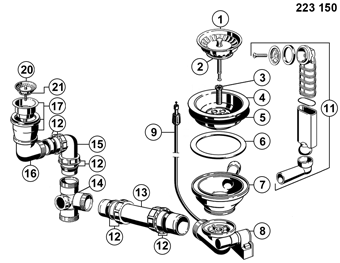

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	10/2008	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	10/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	10/2008	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	10/2008	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	10/2008	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	10/2008	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	10/2008	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	10/2008	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number		Art. ID	117506	Valid From	10/2008	Name	Valve top 3 1/2" with overflow 15 mm VI (replaced by 125573), white
Position Number	8	Art. ID	117516	Valid From	10/2008	Name	Valve bottom M12 with bowden cable VI, white
Position Number	9	Art. ID	128628	Valid From	10/2008	Name	Bowden cable 600 mm with nut VI
Position Number	11	Art. ID	117520	Valid From	10/2008	Name	Overflow round pluggable complete VI
Position Number	12	Art. ID	125669	Valid From	10/2008	Name	Cap nut with seal Ø=40 mm VI
Position Number	13	Art. ID	118567	Valid From	10/2008	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number		Art. ID	127788	Valid From	10/2008	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	14	Art. ID	128667	Valid From	10/2008	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	15	Art. ID	116729	Valid From	10/2008	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	10/2008	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	16	Art. ID	117515	Valid From	10/2008	Name	Valve bottom M12 overflow horizontal VI, white
Position Number	17	Art. ID	117940	Valid From	10/2008	Name	Valve top 1 1/2", seal, rosette VI, white
Position Number	20	Art. ID	125566	Valid From	10/2008	Name	Basket strainer 1.5" pin (18 drainage slots) VI Spareparts
Position Number	21	Art. ID	117498	Valid From	10/2008	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	10/2008	Name	SensorControl-BSC Spareparts
