Fitting set 1 x 3.5" + 1 x 1.5" with pop-up control without overflow (replaced by 224807)

Skip to content Jump to the navigation menu

                    Article Number
                    223289


no longer available since 01/2010

Added to Your Shopping Cart

Spare Parts

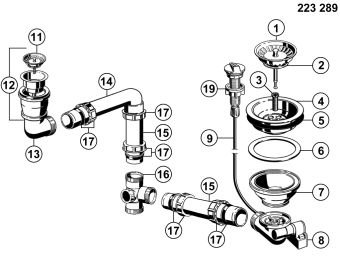

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	02/2009	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	02/2009	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	02/2009	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	02/2009	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	02/2009	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	02/2009	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	02/2009	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	117504	Valid From	02/2009	Name	Valve top 3 1/2" without overflow VI, white
Position Number	8	Art. ID	117516	Valid From	02/2009	Name	Valve bottom M12 with bowden cable VI, white
Position Number	9	Art. ID	128628	Valid From	02/2009	Name	Bowden cable 600 mm with nut VI
Position Number	11	Art. ID	125567	Valid From	02/2009	Name	Basket strainer 1.5" pin, no seal (18 drainage slots) VI
Position Number	12	Art. ID	117940	Valid From	02/2009	Name	Valve top 1 1/2", seal, rosette VI, white
Position Number	13	Art. ID	117515	Valid From	02/2009	Name	Valve bottom M12 overflow horizontal VI, white
Position Number	14	Art. ID	139228	Valid From	02/2009	Name	L-outflow pipe Ø 40 mm, length: 50 x 245 mm VI
Position Number	15	Art. ID	118567	Valid From	02/2009	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number		Art. ID	127788	Valid From	02/2009	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	16	Art. ID	128667	Valid From	02/2009	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	17	Art. ID	125669	Valid From	02/2009	Name	Cap nut with seal Ø=40 mm VI
Position Number	19	Art. ID	119293	Valid From	02/2009	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	02/2009	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	02/2009	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	02/2009	Name	SensorControl-BSC Spareparts
